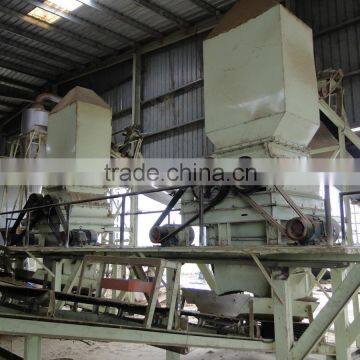

Bagasse particleboard production line/ particle baord making machine

Bagasse particleboard production line/ particle board production line

Partcle board is made from small-diameter wood, wood branches, wood residues,

saw dust, furnitue leftovers, phragmites andbagasse, etc, and via Chip preparation,

Drying & screening, Glue applying, Forming and hot press, Cutting size, and sand-

ing, etc. Finished boards can be used for furniture, building, packing, vehicle and

sheep decoration and lamination.

1.wood shavings preparation section
Raw material is reduced into qualified chips by the drum chipper, then the chips are

transported to the chip bin, and then feed to the knifering flaker by which the chips

are turned to flakes, then the flake stored in wet flake bin.

2. Drying and sifting section
The flakes are discharged from the wet flake bin which are conveyed to the rotary

dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to

mill to be re-crushing, and transported to surface dry wood shavings bin to be stor-

ed.

3.Glue stage
After scaled, the core and surface flakes are to be effectively and uniformly mixed

with qualified glue to achieve the uniform mixing and the sufficient sizing effect.

4.Paving and thermo forming section
The after sizing shavings are transported to the mechanical grading paving machines

bythe belt conveyor.and they are paved to the uniform flat slab. After pre-press, a-

nd loading conveyor,the rough boards are sent to the installed hoistingcages,then the

rough boards are pressed by the hot press machine.

5. Post--processing section
The thermo foming boards are conveyed to the panel turnover machien to become

cool,then the boads are transported to the vertical and horizontal edge cutting mac-

hine by the cooling conveyor.

6.sanding section

No.1 De baler   (automatic particle board making machine)

No.2 Silo (automatic particle board making machine)

No.3 Hot air dryer   (automatic particle board making machine)

No.4 Rectangle screen (automatic particle board making machine)

No.5 Forming machine (automatic particle board making machine)

No.6 Pre-press (automatic particle board making machine)

No.7 Hot press & Cooler (automatic particle board making machine)

No.8 Sanding line (automatic particle board making machine)

                   XIANGYING MACHINERY · LINYI SHANDONG

Located at Lanshan district, Linyi City of Shandong province, “the Biggest wood b-

ased panel base of Asia”, Linyi Xiangying Machinery Manufacturing Co., Ltd(Linyi

wood based panel machinery plant)is an aggressive enterprise which integrates woo-

dworking researching, designing, manufacturing, marketing and service into one wh-

ole.

Since it was established in 1992, Xiangying machinery keeping innovations and per-

fection to commit themselves in producing best quality machinery.

Our main products are Particle  board  production  line,  Plywood  production  line,

MDF production line, Melamine veneer press,Mould door equipment etc. based on

our good quality as well as perfect service ,our business scope expands extensively

both at home  and in more  than 20 countries such as Vietnam, Malaysia, Pakistan,

Bangladesh, Russia, Turkey and so on. And they are all well praised by our clients.

Choose Xiangying machinery, Create measureless value.
