best quality lamination molded door hot press manufacturer

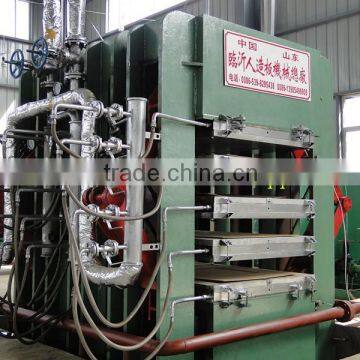

wooden molded door pressing machine

1. the second molded using the market to suppress the existing MDF, MDF multi-national manufacturers,       resource-rich and easy to purchase.
2. the introduction of a special fiber softening formulation process, softening line design science, protection of proprietary technology and advanced technology.
3. supporting the computer-aided design and aided manufacturing CAD / CAM technology. Can produce any type of lines and shapes.
4. the thermal conductivity of innovative ways to change the traditional steam and thermal oil heaters, low investment, high thermal efficiency, save energy and reduce costs.
5. using high-efficiency synchronous closing press, once can produce three doors per minute up to a high productivity.
6. the production line employing a small, class 4 to production, the production capacity, more than one thousand middle classes.
7.a unique production line, first-line multi-purpose, adapt to different materials, molding, automatic temperature control, can produce molded door, solid wood door, polymer door panels, relief art panels and other innovative products.
8.molded surface is smooth, polished finished basic need, a special anti-sticking, rust, hardening the surface, long service life.
9.supporting technology process maturity, the project easy to implement.

First, the production of main products: high-density molded door, polymer door, solid wood composite doors, embossed art board.
Second, the product uses: Widely used in door factory, furniture factory, decoration industries.
Third, the technical characteristics and key technology process

Fourth, molded door pressing machine main technical parameters:
1 Nominal pressure: 1500KN
2 plate format: 2600 × 1370 × 40mm
Three layers: 4 layers
4 layer spacing: 200mm
5 press closing speed: 40mm / s (on the hot plate down to 60mm spacing, the slow decline
6 cylinder (diameter × stroke): Φ140 × 200mm
7 Number of cylinders: 4
8 Specific pressure: 3.5 ~ 5kbf/cm2
9 Heating medium: electric heating
10 Working temperature: 100 °C
11 Face Height: 900mm
12 pressing machine Power: 11kw
13 Net weight: ~ 10000Kg
14 Host Dimension (L × W × H): ~ 2600 × 1800 × 3050mm
