Molded door skin hot press machine
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Hot Press Machine | |
| Place of Origin | Shandong, China | Brand Name | Youming | |
| Model Number | YM-MDP | Voltage | 380 V | |
| Power(W) | 30.6KW | Dimension(L*W*H) | 2600*1800*3050mm | |
| Weight | 10 T | Certification | ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

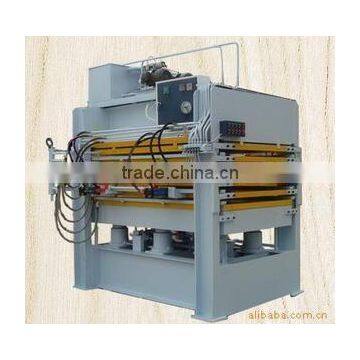

Molded door skin hot press machine
1.Molded door skin hot press machine :
Molded door skin hot press machine is used for making melamine door skin or veneer door skin.Door skin can have many choice about the texture which is made by different kind of door moulds.
Molded door skin hot press machine is developed for producing melamine MDF surface of wooden doors. The synchronizer makes all platens going up and down at the same time. Platens can stop at any position according your operation. The pressure and time of holding pressure are adjustable and flexible. You can select the automatic and manual type easily by an electrical switch.
2.Technical Data of molded door skin hot press machine :
| Model | End plate size(ft) | Nominal pressure(KN) | Hot platen size(mm) | Daylight opening(mm) | Main oil cylinder( dia×stroke×pcs) | |
| NYJ-800T | 3 daylights | 3×7 | 8000 | 1150×2250×70 | 250 | Φ440×920×4 |
| 4 daylights | 3×7 | 8000 | 1150×2250×60 | 250 | Φ250×1000×8 | |
| 5 daylights | 3×7 | 8000 | 1150×2250×60 | 250 | Φ280×1250×6 | |
| NYJ-1200T | 3 daylights | 3×7 | 12000 | 1150×2250×70 | 300 | Φ320×920×6 |
| 4×8 | 1400×2600×70 | |||||
| 4 daylights | 3×7 | 12000 | 1150×2250×60 | 250 | Φ320×1000×6 | |
| 4×8 | 1400×2600×60 | |||||
| 5 daylights | 3×7 | 12000 | 1150×2250×60 | 250 | Φ280×1250×8 | |
| 4×8 | 1400×2600×60 | |||||
| NYJ1400T | 3 daylights | 3×7 | 14000 | 1150×2250×40 | 300 | Φ340×920×6 |
| 4×8 | 1400×2600×70 | |||||
| 4 daylights | 3×7 | 14000 | 1150×2250×60 | 250 | Φ340×1000×6 | |
| 4×8 | 1400×2600×60 | |||||
| 5 daylights | 3×7 | 14000 | 1150×2250×60 | 250 | Φ340×1250×6 | |
| 4×8 | 1400×2600×60 | |||||
| NYJ-1600T | 3 daylights | 4×8 | 16000 | 1400×2600×70 | 250 | Φ380×920×6 |
| 4 daylights | 4×8 | 16000 | 1400×2600×60 | 250 | Φ380×1000×6 | |
| 5 daylights | 4×8 | 16000 | 1400×2600×60 | 250 | Φ380×1250×6 | |
Molded door skin hot press machine
Molded door
Company | Linyi Youming Machinery Manufacturing Co.,Ltd |
Location | located at Lanshan district, Linyi City of Shandong province |
History | Established since 1992, It has beening an aggressive enterprise which integrates woodworking researching,designing ,manufacturing, marketing |
Main products | 1.Particle board production line, 2.Plywood production line 3.MDF production line, Melamine veneer press 4.Molded door skin hot press machine |
Achievement | our business scope expands extensively both at home and in more than 20 countries such as Vietnam, Malaysia, Pakistan ,Bangladesh, Russia, Turkey and so on |
1.Q:Are you a factory or trading company?
A:We are a factory
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Linyi city, Shandong Province, China . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A:The main material are steels, oil cylinder and other. We can also choose material as customers’ requirement.
4.Q:How can I kown more about the press machine?
A: We are honored to send you some pictures and vedio about our machine. And we welcome every customer visit our factory.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. Factory director always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ZDHY, ISO9001 authentication
