Best-selling Rubber Sheathed Cable/rubber Sheath Flexible Cable/protective Sheath Cable
- Shanghai Qingdao Tianjin Guangzhou
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


25mm2 35mm2 70mm2 95mm2 Flexible Rubber Welding Cable Specification
 -


2015 New Electric Welding Cable 70mm2 Rubber Welding Cable and Welding Cable Specifications
 -


0.6/1KV Rubber Welding Cables Low Voltage Cables for Sale
 -


H07RH-F Rubber Sheath Flexible Welding Cable
 -


Factory Price of H07RN-F Cable/EPR Cable/3x50+35mm2 Earthing Electric Cable
 -


New H05w-f Pvc Power Cable 3x1.5mm2 Rubber Electric Cable

Product Details
| Place of Origin | Henan, China | Brand Name | BEI HOU | |
| Model Number | Rubber cable YH | Type | Insulated | |
| Application | Other, outdoor equipment | Conductor Material | Copper | |
| Conductor Type | Other, solid or stranded | Insulation Material | Rubber |
Product Description

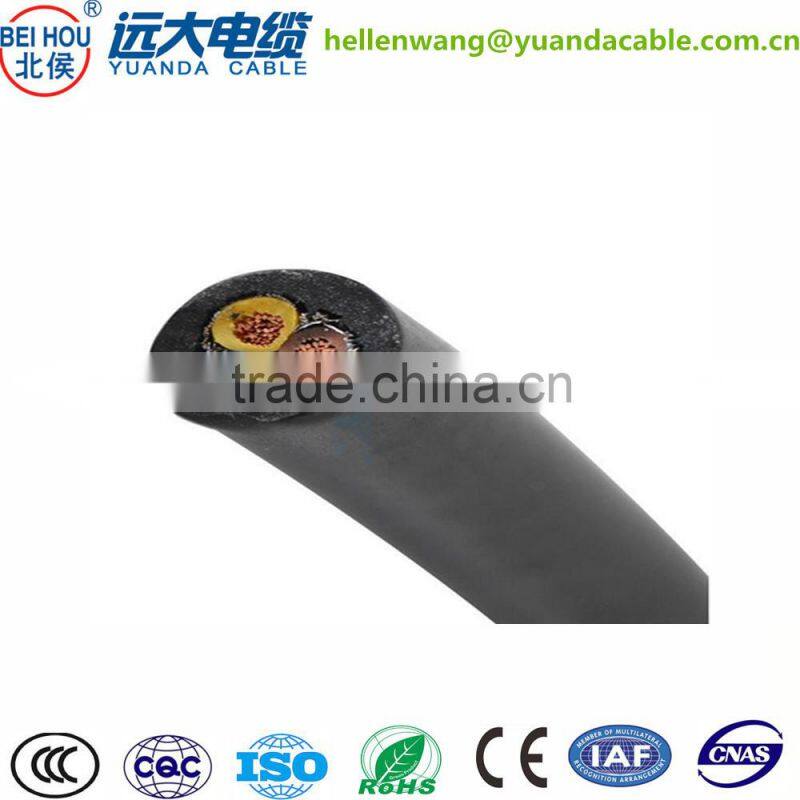

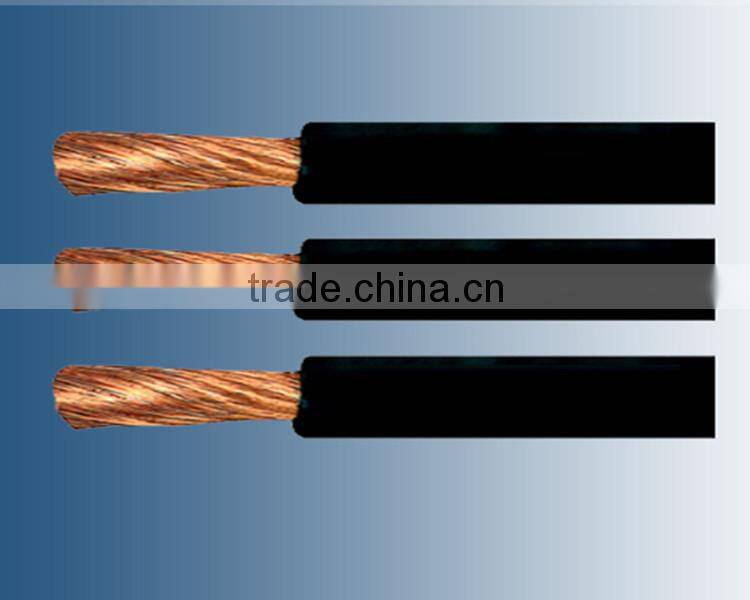

best-selling rubber sheathed cable/rubber sheath flexible cable/protective sheath cable
Product Structure:
Conductor:Bare annealed copper wire,99.99% pure copper wire or Tinned Copper wire
Insulation: Neoprene or other synthetic rubber elastomer sheathed welding cable,EPR,EPDM
Sheath: Neoprene or other synthetic rubber elastomer sheathed welding cable

Features:
1. Soft Cables, having good bending properties
2. The sheath material made of natural rubber or chloroprene rubber mixture,
can be applied to different situations, good electrical physical properties
3. Chloroprene rubber mixture with heat oil and retardant performance
4. The maximum continuous operating temperature of the cable is 65 ℃
5.Color:Black, Orange, Red or Yellow Blue jacket, single & double insulated.
6.ROHS certificate,environmental protection
7.We can print the words on cables according to the client need
8.SQ MM sizes (European style):
10mm2 10sqm 10mm IEC60245 81 YH YHF Welding Cable for arc welding machine
16mm2 16sqm 16mm IEC60245 81 YH YHF Welding Cable for arc welding machine
25mm2 25sqm 25mm IEC60245 81 YH YHF Welding Cable for arc welding machine
35mm2 35sqm 35mm IEC60245 81 YH YHF Welding Cable for arc welding machine
50mm2 50sqm 50mm IEC60245 81 YH YHF Welding Cable for arc welding machine
70mm2 70sqm 70mm IEC60245 81 YH YHF Welding Cable for arc welding machine
95mm2 95sqm 95mm IEC60245 81 YH YHF Welding Cable for arc welding machine
120mm2 120sqm 120mm IEC60245 81 YH YHF Welding Cable for arc welding machine
150mm2 150sqm 150mm IEC60245 81 YH YHF Welding Cable for arc welding machine
185mm2 185sqm 185mm IEC60245 81 YH YHF Welding Cable for arc welding machine
Cable for Weilding Machine 60245 IEC 81 (YH)
Nominal Section (mm2)  | No./Diameter (mm)  | Insulation Inner Diameter (mm)  | Sheath Thickness (mm)  | Sheath Outer Diameter (mm)  | Copper Weight (kg/100m)  | Plastic Weight (kg/100m)  | Total Weight (kg)  |
25  | 798/0.2  |
 0.9  |
 1.4  |
 11.6  | 22.35  | 9.25  | 31.6  |
35  | 1121/0.2  |
 0.9  | 1.4  |
 12.6  | 31.39  | 11.21  | 42.6  |
50  | 1596/0.2  |
 1.0  | 1.6  |
 15.1  | 44.69  | 14.51  | 59.2  |
10
  | 322/0.2  |
 0.8  | 1.1  |
  | 9.1  | 4.4  | 13.5  |

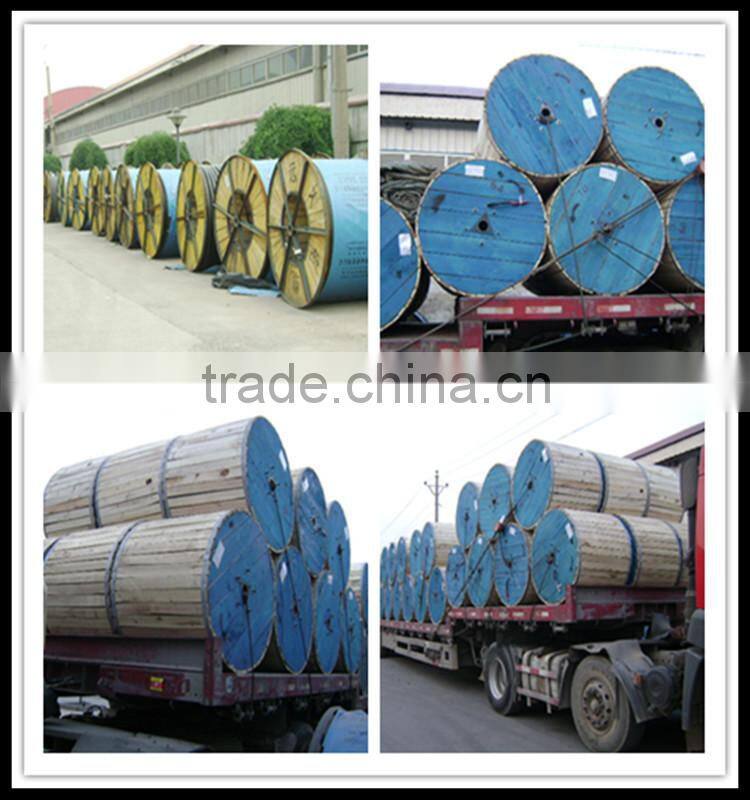

1).Wrapped in rolls/coils/rings with plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other lengths could be supplied if agreements are reached by both side.
Packaging: In rolls/coils, wooden drums, steel drums or steel-wooden drums.
Shipping:
1. Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2. Large quantity will be shipped by sea.
1.We are factory and raw materials are served by our company.
2.OEM and ODM are available based on official legal authorization.
3.Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support.
7. Providing solutions for your particular requirements.
8. Free samples are available with economic express fees.
We always adhere to the principle of "quality first, customer satisfaction first". If you have any questions, please feel free to contact us through e-mail, phone, and trade message or other ways.
Zhengzhou Yuanda Cable Co., Ltd, as a super cable and wire manufacturer, specialized in professional wires and cables for construction, housing, lighting and so on. Our products has greatly recognized by domestic and overseas clients. Our company has introduced advanced production line and testing equipment, has professional engineers and skilled workers and can provide super services for each clients, which determine us to provide qualified goods and to be a reliable and professional supplier.

Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.
Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for telephone wire , TV lines and parvicostellae.

Our Principles
1)Quality first, customer first, safety first
2)Better service, faster delivery
3)Mutual benefit and cooperation
4)Honesty and profession
Q1: Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacture in the middle of China with 1, 000 staff.
Q2: Where is your company? How can I visit there?
A: Our Company is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
Q3:How can I get samples?
A: Free Samples will be sent to customers by economic international express if available, Freight Charge will be normally on buyer’s account.
Q4:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificates. Each products must be went through professional test. We promise to provide qualified cables.
Q5: Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
Other payment terms also can be available by both sides agreement.
Q6: Have you ever exported cables to other countries?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
Q7: What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific requirements.
you can click the picture below to reach for detai infromation about these cables.
