Product Details
| Place of Origin | Henan, China | Brand Name | BEI HOU | |
| Model Number | VV32 | Insulation Material | PVC | |
| Type | Low Voltage | Application | Construction | |
| Conductor Material | Copper | Jacket | PVC |
Product Description
Cheap Price Cu or Al Conductors PVC Insulated Sheathed Flame Retardant Power Cable, Power Cable 4x4mm2 for Construction
Standard: National Standard GB/T12706-2002,IEC60502
Rated Voltage:0.6/1KV

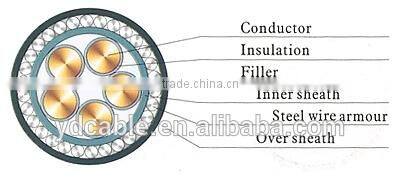

Construction:
*conductor: shaped copper conductor
*PVC insulated
*thin steel wire armored
*PVC/ PE sheathed
Operating Characteristics:
*Max.short-circuit temperature of conductor shall not exceed(5s maximum duration):
Cross-section of conductor ≤300mm2 160°C;
Cross-section of conductor > 300mm2 140 °C .
*The ambient temperature under installation of cable should not below 0 °C .
*The bending radius of cable should not less than 10 times of diameter of the cable.
(1).The long-time permissible operation temperature of conductor shall not be higher than 70°C.
(2).Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160 °C .
(3).The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0 °C .
(4).Perfect chemical stability,resistant against acids,alkalis,grease and organic solvents, and flame.
(5).Light weight,perfect bending properties,installed and maintained easily and conveniently.
We provide armoured type and non-armored type for the power cables above.
Operating conditon when cable laying
in Air
1.The single-core cables are paralled laid,the distance between the cable center is 2 times diameter of the csble for cross section of conductor ≤ 185mm2 and 90mm for cross section of conductor ≥240mm2.
2.Ambient air temperature:40 °C
3.Max.permissible continuous opesating temperature of conductor:70 °C
Direct in ground
1.When the single-core cables are installed seperately,the distance between the cables center is 2 times diameter of the cable
2.Solid temperature :25°C
3.Max.permissible continuous operating temperature of conductor:70 °C
4.Solid thermal resistivity:10 °Cm/w
5.Depth of laying:0.7m
Nominal Section Areas of Conductor (mm2)  | No. Of Single Wire in Conductor
  | Insulation. Thickness (mm)  | Sheath Thickness (mm)  | Approx. Diameter of Cable (mm)  | Approx.Weight of Cable  | D.C Resistance  | Test voltage (ac)  | ||
  |
  |
  |
  |
  | Cu (kg/km)  | Al (kg/km)  | 20oCCU (ohm/km)  | 20oCAl (ohm/km)  | (kv/5min)  |
4x2.5  | 1  | 0.8  | 1.8  | 12.7  | 232.0  | 169.0  | 7.41  | 12.1  | 3.5  |
4x4  | 1  | 1.0  | 1.8  | 14.9  | 322.0  | 211.0  | 4.61  | 7.14  | 3.5  |
4x6  | 1  | 1.0  | 1.8  | 16.1  | 422.0  | 271.0  | 3.08  | 4.61  | 3.5  |
4x10  | 7  | 1.0  | 1.8  | 19.2  | 469.0  | 388.0  | 1.83  | 3.02  | 3.5  |
4x16  | 7  | 1.0  | 1.8  | 21.7  | 922.0  | 209.0  | 1.15  | 1.91  | 3.5  |
4x25  | 7  | 1.2  | 1.8  | 25.9  | 1373.0  | 722.0  | 0.727  | 1.20  | 3.5  |
4x35  | 7  | 1.2  | 1.8  | 28.7  | 1802.0  | 899.0  | 0.524  | 0.868  | 3.5  |
4x50  | 19  | 1.4  | 1.9  | 30.4  | 2380.0  | 1091.0  | 0.387  | 0.641  | 3.5  |
4x70  | 19  | 1.4  | 2.1  | 33.9  | 3202.0  | 1398.0  | 0.268  | 0.443  | 3.5  |
4x95  | 19  | 1.6  | 2.2  | 39.7  | 4315.0  | 1866.0  | 0.193  | 0.320  | 3.5  |
4x120  | 19  | 1.6  | 2.4  | 44.2  | 5359.0  | 2265.0  | 0.153  | 0.253  | 3.5  |
4x150  | 37  | 1.8  | 2.5  | 48.7  | 6679.0  | 2811.0  | 0.124  | 0.206  | 3.5  |
4x185  | 37  | 2.0  | 2.7  | 53.5  | 8190.0  | 3420.0  | 0.0991  | 0.164  | 3.5  |
4x240  | 37  | 2.2  | 2.9  | 55.4  | 10494.0  | 4305.0  | 0.0754  | 0.125  | 3.5  |
4x300  | 61  | 2.4  | 3.0  | 61.0  | 12948.0  | 5388.0  | 0.0601  | 0.100  | 3.5  |
4x400  | 61  | 2.6  | 3.2  | 70.0  | 16788.0  | 6708.0  | 0.0470  | 0.0778  | 3.5  |
Main manufacturing procedure
1. Copper wire drawing and annealing.
2. Copper wire stranding.
3. PVC insulation extruding.
4. Cores Twisting.
5. Outer sheath extruding and labeling
6. Spooling

1).Wrapped in rolls/coils/rings with plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other lengths could be supplied if agreements are reached by both side.
Packaging: In rolls/coils, wooden drums, steel drums or steel-wooden drums.
Shipping:
1. Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2. Large quantity will be shipped by sea.
1.We are factory and raw materials are served by our company.
2.OEM and ODM are available based on official legal authorization.
3.Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support.
7. Providing solutions for your particular requirements.
8. Free samples are available with economic express fees.

Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.
Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for telephone wire , TV lines and parvicostellae.
Zhengzhou Yuanda Cable Co. Ltd. located in the middle of China, can deliver qualified cables and wires in very short lead time for each clients.

Q1: Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacture in the middle of China with 1, 000 staff.
Q2: Where is your company? How can I visit there?
A: Our Company is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
Q3:How can I get samples?
A: Free Samples will be sent to customers by economic international express if available, Freight Charge will be normally on buyer’s account.
Q4:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificates. Each products must be went through professional test. We promise to provide qualified cables.
Q5: Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
Other payment terms also can be available by both sides agreement.
Q6: Have you ever exported cables to other countries?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
Q7: What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific requirements.
