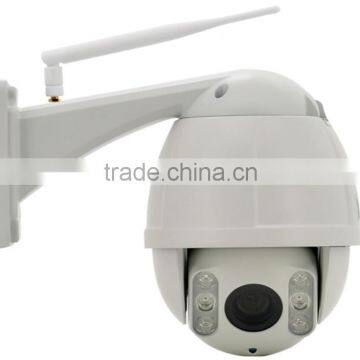

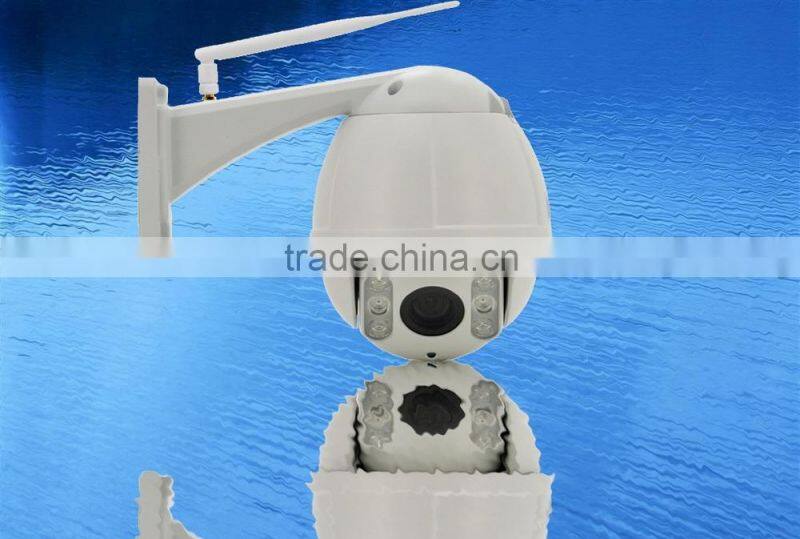

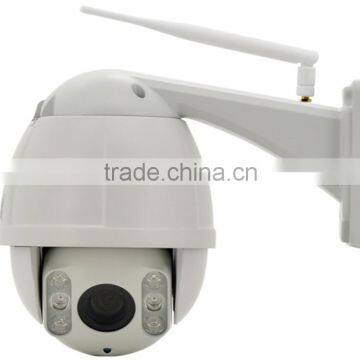

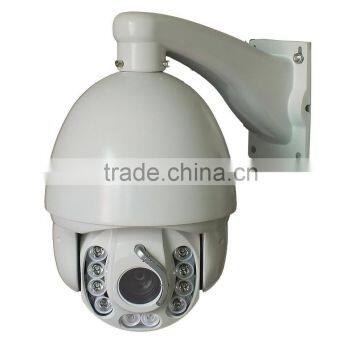

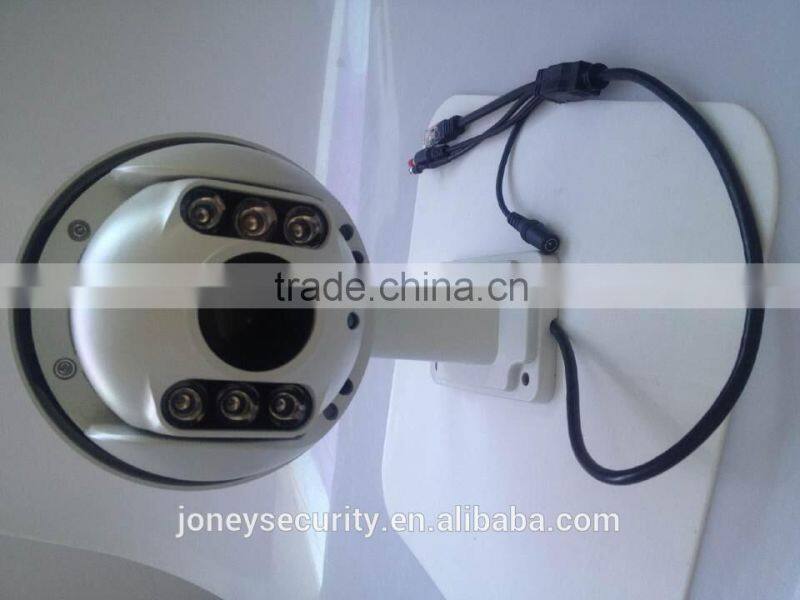

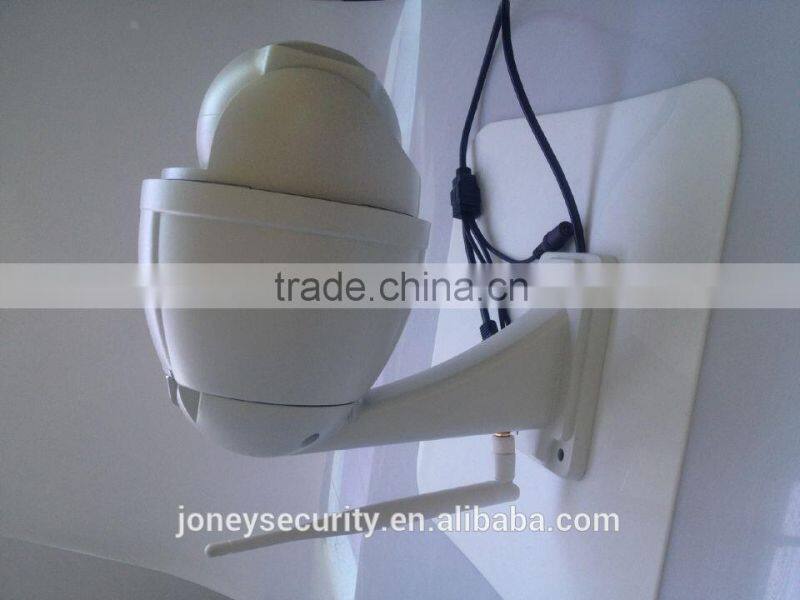

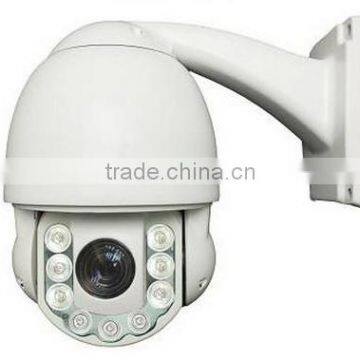

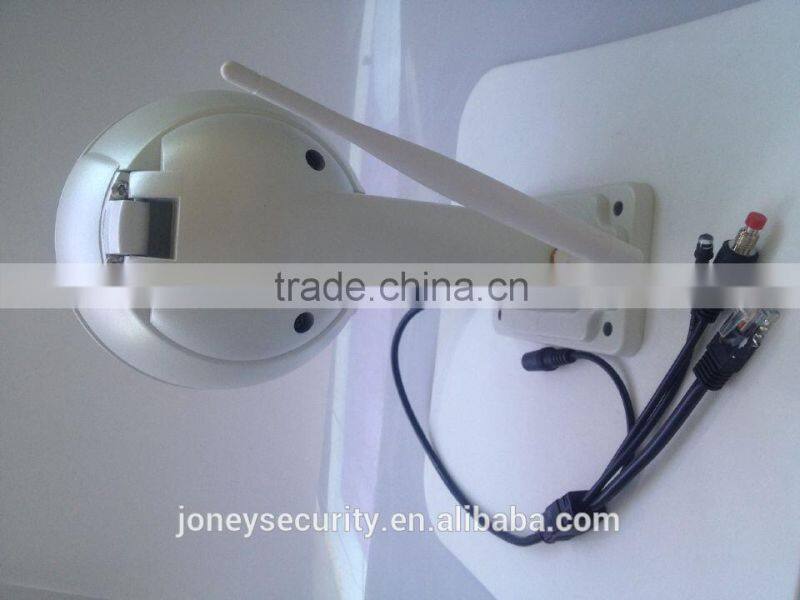

1080P WIFI PTZ camera cctv wireless ptz doom(IPC-PTZ9001LW-4X)

Item

 IPC-PTZ9001LW-4X Wireless ptz camera

Device Type

1/2.7-inch 2.0 Megapixel Sony MX 122

Size

1/3

Day and Night

Yes

Min.Scene  Illumination

0.01lux(IR ON)

Infrared sensitivity

Support

IR Filter

IR-CUT

IR- lamp array

6pcs

IR distance

50M

Electronic shutter

1/5-1/15,000 /S

Lens

lens

2.8-12MM

Focus

Auto zoom

Aperture

Fixed Aperture F1.2

Video

Compression

H.264 Main Profile

  Picture Resolution

1920*1080@30fps  1280*960@30ps   1280*720@30fps

Steam flow

Support dual stream

Bit Rate

128-8192kbps

Bit Rate Type

CBR/VBR

S/N Ratio

>50DB

Image enhancement

Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted

Subtitles input

Support channel name, date/time

Flip Config

Up/down, Left/right

Audio

Support the microphone input andAudio output, support two-way voice intercom equipment

equipment

An external audio equipment

Audio input/ output

one channel audio input, one channel audio output

Audio  Compression

G.711/G.726

Alarm input/output

 No

Alarm way

Motion Detection:Configure motion detection area,detecting sensitivity is adjustable

Alarm processing

The control center to monitor,Go to PTZ preset pos,Send E-mail, Log record,SD card storage etc.

Network

Protocal

HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF,28181

Ethernet

Ethernet (10/100 Base-T),RJ-45 connector

Safety

IP address filtering,User level password protection,The user access log

Wifi major chipset

MTK7601

Wifi protocol

802.11b/n/g

Frequency Range

2.4~2.4835GHz

Encryption

WEP, WPA/WPA2

Software

WEB Browser

       Microsoft Internet Explorer 6.0 and above,google,firefox etc.

Mobile Phone

Support iPhone,Android,Bit rate:32K – 512K adjustable,Frame rate:6–12 fps

Software Management

CMS and the devices Compatible with ONVIF

Software intelligence function

Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc.

Event action

Files are stored to the back end equipment,Send E-mail,Zoom in alarm,

Remote Access

DDNS,Software,P2P

Physical properties

Accessories

Power adapter, CD, Screw bag

Power Comsumption

           DC 12V ,Module power consumption is less than 2 W

Temperature

-20°~60°C

Humidity

-10~85%

Weight

Dimension

Certification

CE ,FCC
