Best Selling Products 750V Control Cables With 4 Core
- Qingdao Tianjin
- T/T
You May Like
-
0.6/1kv Copper Conductor Pvc Insulated Power Cable (95mm2,120mm2.240mm2,185mm2,150mm2,300mm2) From China Cable Supplier
-
Low Halogen Flame Retardant PVC Insulated PVC Sheathed Braiding Sheathed Control Cable
-
Best Price Fire Retarding Control Cable / Fire Retarding Cables
-
22 Awg 4mm Copper Conductor PVC Insulated PVC Sheathed Shielded Flexible Cable
-
25mm 95mm Stranded Copper Conductor PVC Insulated PVC Sheathed Screened Shielded Braided Flexible Electric Wire Power Cable
-
The Low Halogen Fire Resistance PVC Insulated PVC Sheathed Control Cable
Product Details
| Place of Origin | Henan, China | Brand Name | BEI HOU | |
| Model Number | KVV / KVVP | Insulation Material | PVC | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | PVC |
Product Description
Best selling products 750V control cables with 4 core
Application
The cables are designed for connection wires of power distribution equip-ments for controlling, monitoring, protecting
circuits with A .C. rated voltage 450/750V and below.
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
2.1 The maximum permissible continuous operating temperature is 70℃
2.2 The lowest installation temperature of the cable is 0℃ .
2.3 Permissible Min. Bending radius not less than 6 times of the
completed cable diameter for unarmoured cable; not less than 12 times of the completed cable
diameter for armoured or copper tape screened cable; not less than 6 times of the completed cable diameter for screened flexible cable.

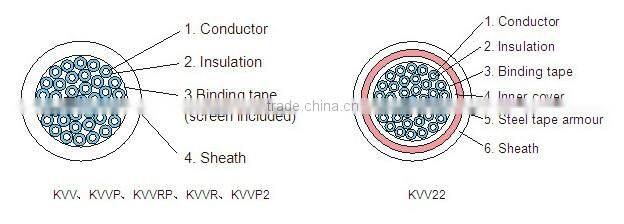

Sketches of product construction
PVC Insulated and Sheathed Control Cable
Type,description and main application Table1
| Type | Description | Main Application |
| KVV | Copper conductor PVC insulated and Sheathed control cable | For flxed installation, laying indoors, |
| KVVP | Copper conductor PVC insulated and sheathed control cable with copper cape screen | For fixed installation, laying indoors, in trenches required |
| KVVP2 | Copper conductor PVC insulated and sheathed control cable with steel tape screen | Ditto |
| KVV22 | Copper conductor PVC insulated and sheathed Control cable with braid armoured | For flxed installation, laying indoors,in trenches and ducts, directly in ground where heavier mechanical withstood |
| KVVR | Copper conductor PVC insulated and Sheathed Flexible control cable | For laying indoors, movable places where flexibility is requested |
| KVVRP | Copper conductor PVC insulated and sheathed Flexible control cable with braid screen | For laying indoors, movable places where flexibility and shield is requeste |
Note:For flame resistance PVC insulated and sheathed cable ,add “ZR” in the front of above types. e.g. ZR-KVV.
Scope of cables Table2
| Type | Rated | Nom.area of conductor (mm2) | |||||||
| voltage | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
| V | No .of cores | ||||||||
| KVV | 450/750 | - | 2~61 | 2~61 | 2~61 | 2~61 | 2~14 | 2~14 | 2~10 |
| KVVP | 450/750 | - | 2~61 | 4~61 | 4~61 | 2~61 | 2~14 | 2~14 | 2~10 |
| KVVP2 | 450/750 | - | 4~61 | 7~61 | 7~61 | 4~61 | 4~14 | 4~14 | 4~14 |
| KVV22 | 450/750 | - | 7~61 | 4~61 | 4~61 | 4~61 | 4~14 | 4~14 | 4~14 |
| KVVR | 450/750 | 4~61 | 4~61 | 4~61 | 4~61 | 4~61 | - | - | - |
| KVVRP | 450/750 | 4~61 | 4~61 | 2~61 | 2~61 | 4~48 | - | - | - |
We can also manufacture others power cable according to customer's special requirements.
Packaging: In coils, wooden drums, steel drums or steel-wooden drums.
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Shipping:
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Feedback:
We will begin to manufacture products and leave feedback once payment received from clients after we reach the agreement.
If you have any problems with your order, we are happy to find an amicable resolution with your side.
Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
Yuanda Cable Products:
1. XLPE Power Cables Up to 220kV
2.Building Wires & PVC Cables (CE,IEC Certificate)
3.Rubber,Mining&Welding Cables (CE,IEC Certificate)
4.Solar Photovoltaic Cable
5.Fire Resistant/LSZH Cables
6.Aerial Bundled Cable (ABC)
7.ACSR,AAC,AAAC Bare Conductor
8.CAT5E,CAT6 Network Cable
9.Control&Instrumentation Cables
10.Silicone Rubber Cables
11.Fluorine Plastic Insulated Cables
12.Customized Cables & Wires
1.Q:Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large mufacturing factory in Middle of China with 1,000 staff.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in No.1 building 23,Layer 2304,No.157 FuYuan Road, Jinshui District, Zhengzhou Henan. It is advised that you come directly by plane to Zhengzhou Airport.
3.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if available, Freight Charge normally will be on buyer’s account.
4.Q:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable company has passed ISO9001 and ISO14004 certificate and strict QC system. we promise to deliver only qualified cable.
5. Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, balance payment negotiable accordingly.
6. Have you ever supplied cables to our country?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
7. What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific cable requirement.
We could producing according to the customers' requirements.Welcome your
request for any quotations!
