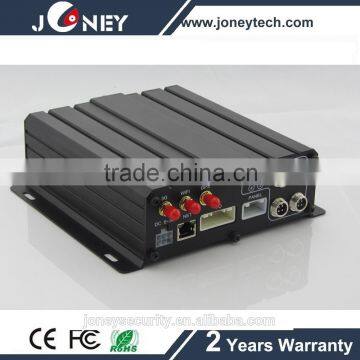

720p 8channel 3G AHD mobile dvr (HDD and SD card recording)

H.264 Video Compression, Support 8CH real-time D1 Video Record.
Real-time HD Video Recording,D1/HD1/CIF for Optional,Adjustable
Frame Rate Quality.
Support Max 2TB HDD+128GB SD card Mirror video record,
Damping shock technology.
Support 3G/4G Network
Support GPS G-sensor WIFI module.
Support External WIFI module
2 high-speed USB2.0 interface.
8CH alarm input, 2CH alarm output, support Acousto-optic alarm
linkage , Cut off power/Fuel Oil, etc.
Built-in hard disk heating function
Power supply: Support 6V - 36V
Dimension : 187(W)x62(H)x200(D) mm
Weight : 1.9Kg

 mobile dvr

1—HDD Lock, it’s used for unload hard disk. Device will power off automatically if
power on when HDD lock is open;
2—HDD Fixed Screw . Please manually tighten screw after installing hard disk drive,
to prevent HDD slip out ;
3— Status Indicator LED,Details as below :
PWR — Power Indicator LED. LED light means system has powered on.
GPS — GPS/BD Status indicator light. LED ON—Positioning success,
LED FLASH—In positioning , LED OFF —No GPS Module.
HOT —Hard disk heating LED. LED ON—HDD is heating,
LED OFF —HDD doesn’t open heating.
SD — SD card Indicator LED. LED ON—Card is recording,LED FLASH— Card
exists but not recording , LED OFF —Card does not exist.
HDD — HDD card Indicator LED.LED ON—HDD is recording,LED FLASH—HDD
exists but not recording , LED OFF —HDD does not exist.
REC — Video Recording Indicator LED.LED ON—In the recording;
ALM — Alarm Indicator LED. LED ON — In the alarm ;
NET — Network Indicator LED. It changes based on dial-up connection status,
details as below:
LED OFF—No communication module,
LED INTERMITTENT FLASH—SIM CARD does not exist ,
LED QUICK F LASH (1:1) —Device is dialing,
LED SLOW FLASH (3:1)—server connection is not successful,
LED ON - server connection is successful.
4—SIM Card and SD Card Slot; ( When installation gap towards inside, metal touch
spot face down )
5—Front audio and video output interface;(Reserved)

6—Infrared remote control receiving hole.
7—USB Interface ,It’s used to import or export data or upgrade;

1— Video&Audio Input interface, 1-4Channels or 1-8Channels, with DC 12V
output :
2—16 PIN Extension Port , With Video&Audio output interface,alarm input&output,
serial port etc.
3—24 PIN Extension Port , With alarm input&output,serial port etc.More detailed
definition see addenda.
4—Rj45 Ethernet port , with print serial port, Can only connect 4PIN net cable.
5—Power Input interface ,Input Voltage DC 8-36V,
Red cable connect power anode, Black cable connect power cathode;
Yellow cable connect ACC signal cable.
6,7,8—3G ,WIFI ,GPS Antenna Port;
9—VGA HD Out putinterface

 mobile dvr Application

- inside car camera or outside car camera
(inside vehicle installation or outside vehicle installation)
- used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.
