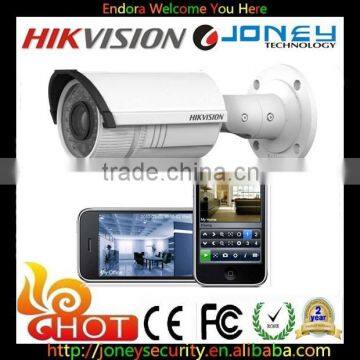

DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip camera

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Hikvision
Model Number	DS-2CD4232FWD-I	Type	Digital Camera
Style	Dome Camera	Sensor	CMOS
Technology	Infrared	Special Features	Waterproof / Weatherproof

Product Description

Joney Main Products

HD IP Camera HD AHD Camera HD SDI Camera HD CVI Camera HD IP PTZ Analog CCTV Camera Dahua Products Hikvision Products AHD DVR Standalone DVR NVR Hybrid DVR CCTVAccessaries

Company Information

Further information about our products , please add my skype : joneytech_sales01

DS-2CD4232FWD-I Original DS-2CD4232FWD-I 3MP WDR,vari-focal ip camera

Product Description

Specification : PoE Hikvision ip camera

DS-2CD4232FWD-IZH

Camera


Image Sensor:	1/3" Progressive Scan CMOS
Minimum Illumination:	0.14 lux F1.4, AGC on, 0 lux with IR
Shutter Time:	1s ~ 1/100,000s
Lens:	2.8 ~ 12mm @F1.4, angle of view: 91.2° ~ 28.3° (-Z: motorized VF lens)
Lens Mount:	φ14
Day& Night:	ICR
Digital Noise Reduction:	3D DNR
Wide Dynamic Range:	120dB
Auto Iris Lens:	DC drive
Angle of view:	113° ~ 33.8°
Noise reduction:	3D DNR

Compression Standard

Video Compression:	H.264/Mpeg4/M-JPEG
H.264 Compression Profile:	Baseline profile / main profile / high profile
Bit Rate:	32 Kbps~16Mbps


Max Image Resolution:	1920 x 1080
Frame Rate:	60 Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Image Settings:	Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser
BLC:	Yes, zone configurable
3rd stream frame rate:	Independent setting, up to: 60Hz: 30fps (1920 x 1080)
ROI codec M:	Yes, up to 4 configurable areas.

Network

Network Storage:	NAS
Alarm Trigger:	Motion detection, tampering alarm, network disconnect, IP address conflict, storage full, storage error
Protocols:	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS
System Compatibility:	ONVIF, PSIA, CGI
Security:	User authentication, watermark, IP address filtering, anonymous access, reset

Interface

Communication Interface:	1 RJ45 10 M/100 M Ethernet port
On-board Storage:	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB

General

Power Supply:	12 V DC ± 10%; PoE (802.3af)
Power Consumption:	Max. 11W -Z/-H: Max. 12W
Working Temperature (Operating Conditions):	-30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing) -H: -40°C ~ 60°C (-40°F ~140°F) , with smart heater on
Impact Protection:	IEC60068-275Eh, 50J; EN50102, exceeding IK10
IR Range:	Up to 30m
Dimensions:	98 x 105 × 328.8 mm
Weight:	1700 g (3.75 lbs)
Weather Proof:	IP66

Features : PoE Hikvision ip camera

• Up to 2048 x 1536 high resolution
• Full HD1080p video
• Smart Codec
• 120dB WDR, 3D DNR
• Triple streams
• On-board storage, up to 64GB
• Smart Focus: Motorized VF lens (-Z)
• Smart VQD
• Smart Facial Detection
• Intrusion Detection
• Built-in heater(-H)
• Defog
• EIS (Electronic Image Stabilization)

Powerful CMS Monitoring Software

Software

Hikvision ip camera IE interface

Multiple languages optional for OSD menu

HIKVISION IP CAMERA CMS VIEW INTERFACE
