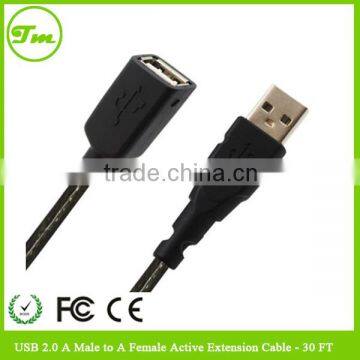

USB 2.0 cable A Male to A Female Active Extension - 30 FT

  USB 2.0  cable A Male to A Female Active Extension

Product Description

   USB 2.0  cable A Male to A Female Active Extension This passive universal serial bus (USB) 2.0 A-Male to A-Female cable is used for extending the length of a USB cable of many devices such as a mouse, keyboard, webcam, printer and many other USB products. USB 2.0 cables are typically used to to connect to cell phones, GPS systems, PDAs, OTG devices and digital cameras using the Mini-USB connection. The Mini-USB connector's small form factor is ideal for today's small portable devices while offering better performance than previous USB standards. Whether you are replacing a lost cable or looking for a second cable for the office, these cables allow you to quickly and easily transfer data or charge your device.

USB 2.0 Specification Compliant
1 X USB Type A Male, 1 X USB Type A Female
Fully compatible with PC and Mac
Supports Plug and Play specification
Fast, 480Mbits/sec transmission speed
26-gauge high performance power wires ensure maximum USB performance
Exceeds all USB specifications
Supports up to 127 devices on a daisy-chain configuration
HotPluggable

  USB 2.0  cable A Male to A Female Active Extension for your printer, external hard drive, DVD burner, or other USB device to your computer

Spec:

Length: 30 Foot

Connector 1: USB Type A Male

Connector 2: USB Type A Female

26 AWG

Transfer rates up to 480Mbps

Downward compatible with USB specifications 1.0 and 1.1

Q&A

Q: What kind of cable do I need for my printer?

A: Typically, printers today are connected with a USB A Male to B Male cable

Q: What if I need to extend my current USB cable past the 16 foot distance limit?

A: Because passive USB cables have a distance limitation you would need an active extension cable to help boost the   signal coming from the source.

Q: I'm unsure what USB cable I need, can you help?

A: Please check below resource tab to see the USB connector graph. This should help identify the correct cable.

**Please double check with your original parts for compatibility.

Connector plating

Gold-plated ,Nickel-plated

Contact

Copper Alloy

Shielding

Foil and Braid

Jacket Color

BLUE,BLACK,WHITE or optional

Conductor

Bare copper ,Tinned copper or optional

Over mold

PVC 80Pa ,UL94V-0 Black

Pre mold

PE Low Density

Withdraw Force

10N Min

Insertion Force

35N Max

Contact Resistance

0.01 OHM Max

Insulation Resistance

10M OHM /300V Min

Hi-Pot

DC 300V 10ms

Working Temperature

-25°C~ +85°C

Compatibility

USB 1.0 & USB 2.0
