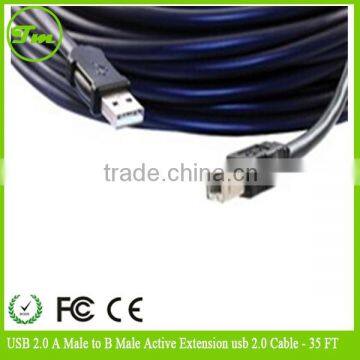

USB 2.0 A Male to B Male Active Extension usb 2.0 Cable - 35 FT

USB 2.0 A Male to B Male Active Extension usb 2.0 Cable - 35 FT

Product Description

The plenum rated USB A Male to B Male USB 35 Foot Active Extension Cable allows you to extend your USB signal 35 additional feet. This cable uses smart technology to re-condition and boost your signal. Use with printers, scanners, portable hard drives, web cams, or any other USB device. The CMP-rated PVC jacket provides the fire protection required to run these cables within walls and air plenums without the need for conduit.

Features:

• 35 Foot
• Plenum rated
• No external power required (Pulls power from source)
• USB A Male to USB B Male
• USB 2.0 compliant up to 480mbps
• Backwards compatible with USB 1.0 standards
• It’s plug-and-play, no additional drivers required

Q&A

Q: What kind of cable do I need for my printer?

A: Typically, printers today are connected with a USB A Male to B Male cable

Q: What if I need to extend my current USB cable past the 16 foot distance limit?

A: Because passive USB cables have a distance limitation you would need an active extension cable to help boost the   signal coming from the source.

Q: I'm unsure what USB cable I need, can you help?

A: Please review below the resource tab to see the USB connector graph. This should help identify the correct cable.

**Please double check with your original parts for compatibility.

Connector plating

Gold-plated ,Nickel-plated

Contact

Copper Alloy

Shielding

Foil and Braid

Jacket Color

BLUE,BLACK,WHITE or optional

Conductor

Bare copper ,Tinned copper or optional

Over mold

PVC 80Pa ,UL94V-0 Black

Pre mold

PE Low Density

Withdraw Force

10N Min

Insertion Force

35N Max

Contact Resistance

0.01 OHM Max

Insulation Resistance

10M OHM /300V Min

Hi-Pot

DC 300V 10ms

Working Temperature

-25°C~ +85°C

Compatibility

USB 1.0 & USB 2.0
