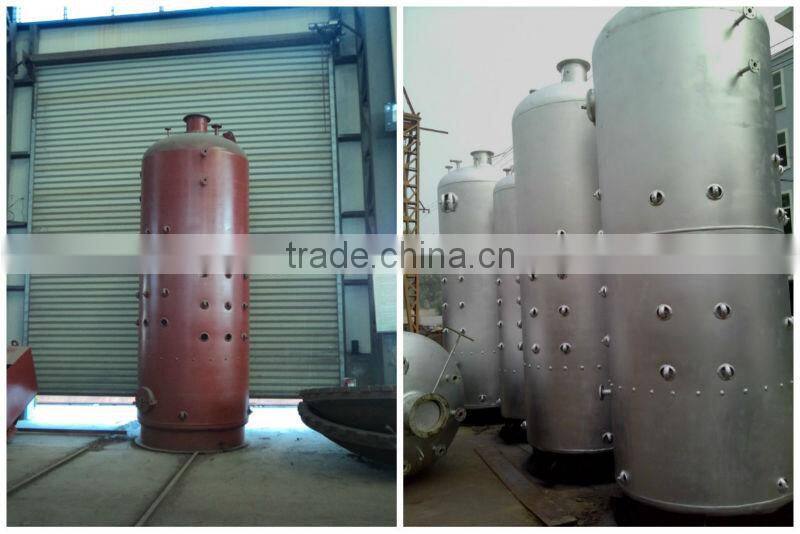

LSH Energy Saving Vertical Industrial Digital Thermostat for Boiler Coal Fired Steam Boiler for Sale
US$ 8,400 - 840,000
/ Set
1 Set(Min. Order)
- Qingdao/Tianjin/Shanghai
- T/T
You May Like
-
LSH Energy Saving Vertical Boiler Steam Press Machine Steam Boiler for Textile Industry
-
LSH Energy Saving Vertical Industrial Steam Boiler Water Tube Boiler
-
Eco Saving Organic Heat Carrier Gas Central Heating Small Coal Fired Boiler
-
Eco Saving Organic Heat Carrier Stainless Steel Boiler and Distillation With Boiler Exhaust Fan Boiler Component
-
Eco Saving Organic Heat Carrier Heat Insulation for Sawdust Boiler Waste Heat Recovery Boiler
-
Eco Saving Organic Heat Carrier Gas Boiler Heat Exchanger Coal Fired Boiler for Sale Chain Grate Stoker Boiler
Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Industrial | Structure | Fire Tube | |
| Pressure | Low Pressure | Style | Vertical | |
| Fuel | Other, Coal-fired, Coal Fired | Place of Origin | Henan, China | |
| Brand Name | Henan Yongxing Boiler Group | Model Number | LSH0.5-0.4 | |
| Output | Other, Steam, Steam | Dimension(L*W*H) | 1.2*3.8M | |
| Weight | 2T, 2T | Certification | ISO9001--2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1Coal Fired Steam Boiler for Sale2Simple operation,quick installation
3Compact structure, safe, reliable
4High efficiency
1 Characteristics
1) Compact structure, easy installation and migration, cover an small area, economical infrastructure investment .

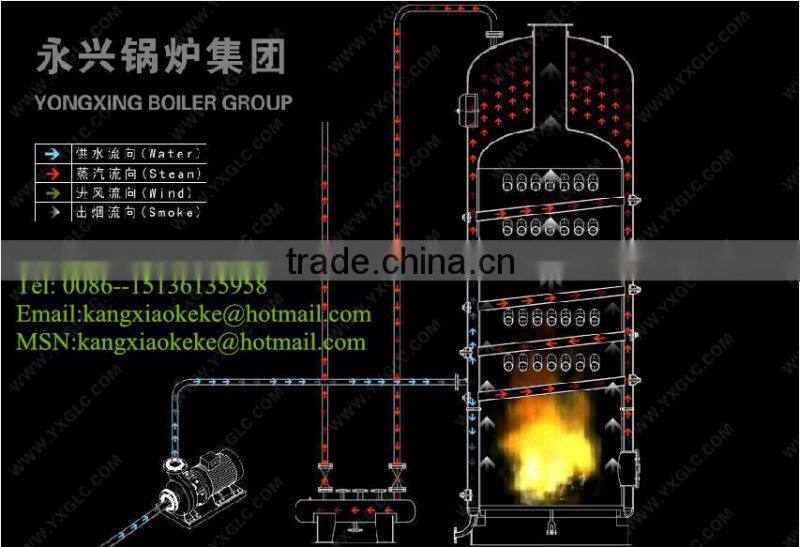

2) Flue gas brush the convection bank longitudinally to make full use of the heating surface, in this way to improve the efficiency of the boiler.
3) Because the flue gas use the much return cycle to achieve the purpose of natural dust removal.
2. Usage:
The steam boiler can be used for producing desired hot water for product manufacturing process in the weave factory, printing and dying, papermaking, and rubber, plastic chemical, pharmaceutical, etc.
And for heating room, bath, air conditional, and daily life water in the factories, departments, hotels, schools, restaurants, services industries etc.
| Name | Rated Evaporation | Work Pressure | Saturated Steam | Heating Area | Grate Area | Dimension |
| Unit | t/h | MPa | °c | m² | m² | m |
| LSG0.1-0.4 | 0.1 | 0.4 | 151 | 4.2 | 0.2 | 0.7×2.6 |
| LSG0.15-0.4 | 0.15 | 0.4 | 151 | 4.9 | 0.3 | 0.8×2.7 |
| LSG0.2-0.4 | 0.2 | 0.4 | 151 | 7.7 | 0.39 | 0.9×2.9 |
| LSG0.3-0.4 | 0.3 | 0.4 | 151 | 12.2 | 0.5 | 1.0×3.3 |
| LSH0.4-0.4 | 0.4 | 0.4 | 151 | 13.7 | 0.64 | 1.1×3.3 |
| LSH0.5-0.4 | 0.5 | 0.4 | 151 | 18.6 | 0.78 | 1.2×3.8 |
| LSH0.6-0.4 | 0.6 | 0.4 | 151 | 24.5 | 0.95 | 1.3×3.9 |
| LSH0.7-0.4 | 0.7 | 0.4 | 151 | 25.2 | 1.13 | 1.4×4.0 |
| LSH1.0-0.4 | 1.0 | 0.4 | 151 | 38.6 | 1.54 | 1.6×4.8 |
| LSG0.3-0.7 | 0.3 | 0.7 | 170 | 12.9 | 0.5 | 1.0×3.3 |
| LSH0.4-0.7 | 0.4 | 0.7 | 170 | 16.8 | 0.64 | 1.1×3.5 |
| LSH0.5-0.7 | 0.5 | 0.7 | 170 | 20.5 | 0.78 | 1.2×3.8 |
| LSH0.6-0.7 | 0.6 | 0.7 | 170 | 25.2 | 0.95 | 1.3×3.9 |
| LSH0.7-0.7 | 0.7 | 0.7 | 180 | 27.5 | 1.13 | 1.4×4.1 |
| LSH1.0-0.7 | 1.0 | 0.7 | 170 | 46.3 | 1.54 | 1.6×4.9 |
