Home > Products > Vertical boiler > LSH Energy Saving Vertical Industrial 2 ton Marine Boiler for Bulgaria Working Simple Vertical Boiler

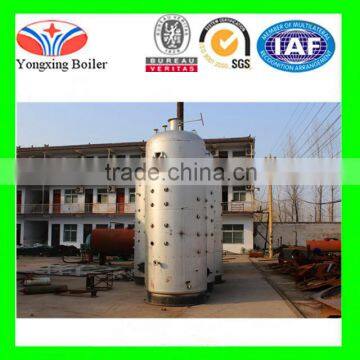

LSH Energy Saving Vertical Industrial 2 ton Marine Boiler for Bulgaria Working Simple Vertical Boiler
US$ 8,400 - 840,000
/ Set
1 Set(Min. Order)
- Qingdao/Tianjin/Shanghai
- T/T
You May Like
-
LSH Energy Saving Vertical Industrial 2 ton Fire Boiler Steam Boilers High Pressure Bar
-
LSH Energy Saving Vertical Industrial 2 ton Wood Pellet Boiler for Sale Steam Boiler for Rice Mill
-
LSH Energy Saving Vertical Industrial 2 ton Peanut Steam Boiler in India
-
LSH Energy Saving Vertical Industrial Boiler Gas Laundry Steam Boiler
-
LSH Energy Saving Vertical Industrial Small Uses of Boilers in Food Industry
-
LSH Energy Saving Vertical Industrial Digital Thermostat for Boiler Coal Fired Steam Boiler for Sale
Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Industrial | Structure | Fire Tube | |
| Pressure | Low Pressure | Style | Vertical | |
| Fuel | Other, Gas-fired, Coal Fired | Place of Origin | Henan, China | |
| Brand Name | Henan Yongxing Boiler Group | Model Number | LSH0.5-0.4 | |
| Output | Other, Steam, Steam | Dimension(L*W*H) | 1.2*3.8M | |
| Weight | 2T, 2T | Certification | ISO9001--2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1Working Simple Vertical Boiler2Simple operation,quick installation
3Compact structure, safe, reliable
4High efficiency
1 Characteristics
1) Compact structure, easy installation and migration, cover an small area, economical infrastructure investment .
2) Flue gas brush the convection bank longitudinally to make full use of the heating surface, in this way to improve the efficiency of the boiler.
3) Because the flue gas use the much return cycle to achieve the purpose of natural dust removal.
2. Usage:
The steam boiler can be used for producing desired hot water for product manufacturing process in the weave factory, printing and dying, papermaking, and rubber, plastic chemical, pharmaceutical, etc.
And for heating room, bath, air conditional, and daily life water in the factories, departments, hotels, schools, restaurants, services industries etc.
| Name | Rated Evaporation | Work Pressure | Saturated Steam | Heating Area | Grate Area | Dimension |
| Unit | t/h | MPa | °c | m² | m² | m |
| LSG0.1-0.4 | 0.1 | 0.4 | 151 | 4.2 | 0.2 | 0.7×2.6 |
| LSG0.15-0.4 | 0.15 | 0.4 | 151 | 4.9 | 0.3 | 0.8×2.7 |
| LSG0.2-0.4 | 0.2 | 0.4 | 151 | 7.7 | 0.39 | 0.9×2.9 |
| LSG0.3-0.4 | 0.3 | 0.4 | 151 | 12.2 | 0.5 | 1.0×3.3 |
| LSH0.4-0.4 | 0.4 | 0.4 | 151 | 13.7 | 0.64 | 1.1×3.3 |
| LSH0.5-0.4 | 0.5 | 0.4 | 151 | 18.6 | 0.78 | 1.2×3.8 |
| LSH0.6-0.4 | 0.6 | 0.4 | 151 | 24.5 | 0.95 | 1.3×3.9 |
| LSH0.7-0.4 | 0.7 | 0.4 | 151 | 25.2 | 1.13 | 1.4×4.0 |
| LSH1.0-0.4 | 1.0 | 0.4 | 151 | 38.6 | 1.54 | 1.6×4.8 |
| LSG0.3-0.7 | 0.3 | 0.7 | 170 | 12.9 | 0.5 | 1.0×3.3 |
| LSH0.4-0.7 | 0.4 | 0.7 | 170 | 16.8 | 0.64 | 1.1×3.5 |
| LSH0.5-0.7 | 0.5 | 0.7 | 170 | 20.5 | 0.78 | 1.2×3.8 |
| LSH0.6-0.7 | 0.6 | 0.7 | 170 | 25.2 | 0.95 | 1.3×3.9 |
| LSH0.7-0.7 | 0.7 | 0.7 | 180 | 27.5 | 1.13 | 1.4×4.1 |
| LSH1.0-0.7 | 1.0 | 0.7 | 170 | 46.3 | 1.54 | 1.6×4.9 |
