Industrial High Pressure AAC High Pressure Kettle

Specifications

I. Introduction

Main performance structure:

Category: a subordinate containers or type

 Main material: simplified kettle pressure parts by 16MnR steel, steel covered with GB6654 standard.

 Axe body flange, kettle cover by 16Mn overall forging flanges, forgings | | JB4726 2000 international standard with grade regulation, chase a for ultrasonic, its index comply with JB/T4730.3-2005 corresponding provisions.
· open the door way: transfixion type or end type. Transfixion type refers to both ends, end loaded kettle cover means end installation kettle of lid.

Axe cover open means open structure, using fast: break up move, driving mode of electric, pneumatic and hydraulic transmission. With a kettle door open and close the security interlock device.

 The kettle of advanced design, manufacturing rigorous, strictly abide by state pressure vessel code, design, manufacturing. According to the overall structure autoclaved kettle end points: style, and transfixion type; According to the working medium points: saturated steam and compressed air; According to axe cover open a way: points on open-type and open; lateral According to axe the driving way points cover open: manual, electric, pneumatic and hydraulic transmission.

 Autoclaved kettle steaming raise kettle, also called is a huge volume, weight heavier large pressure vessel. Autoclaved reactor USES is very extensive, lots of applied in aerated concrete block, concrete pile, suggested brick, coal ash brick, micro pore calcium silicate board, insulation asbestos board, high-strength gypsum construction materials autoclaved Also widely used in rubber, wood drying and anticorrosive processing, heavy metal smelting, refractory bricks invade with coal, oil seeping raise, chemical fiber glass evaporate proutoclaved kettle, multiple applications to meet customer needs.duct high-pressure treatment, canned food of high temperature and high pressure treatment, pulp cooking, cable vulcanization, fishing nets stereotypes and chemical, pharmaceutical, aerospace industries need to raise production pressure steaming process in production projects. My company can according to user requirements manufacturing various forms of autoclaves.

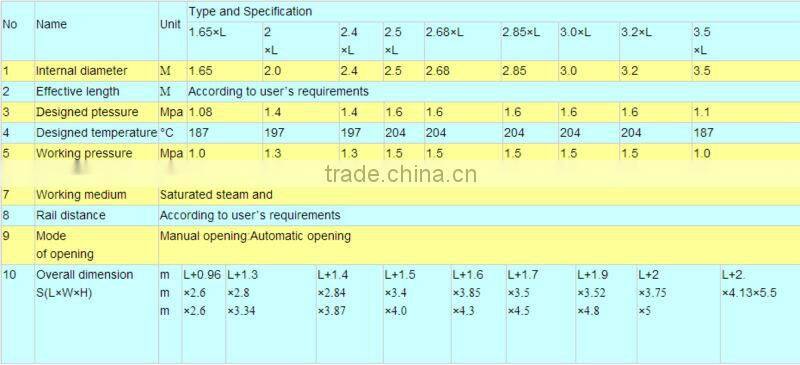

II. Parameter table of autoclaves

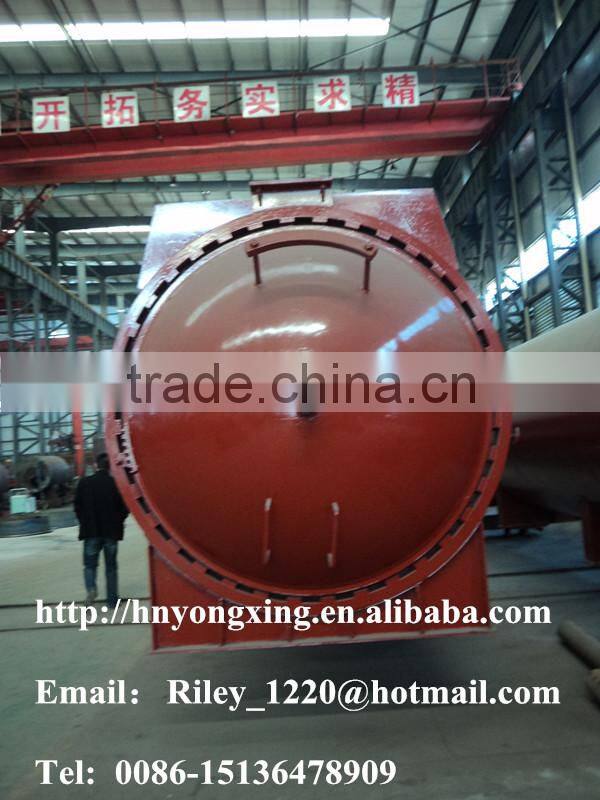

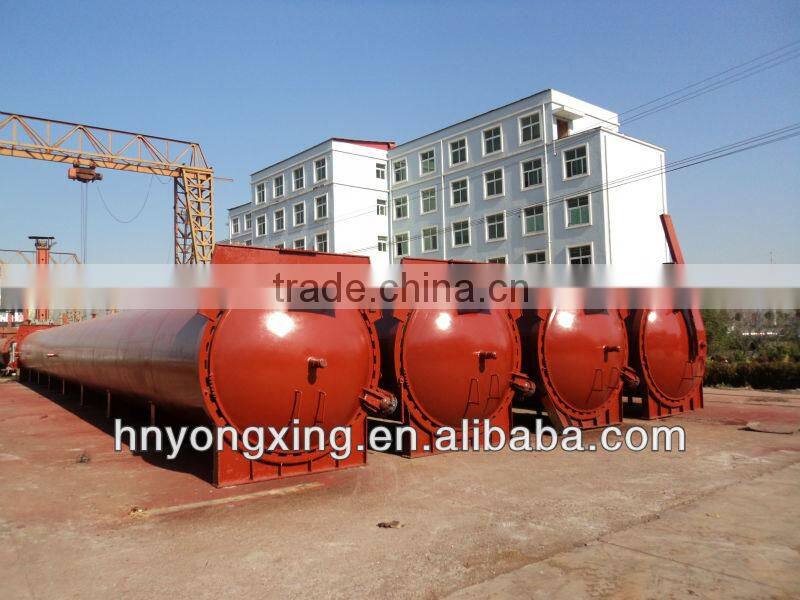

III. Products show

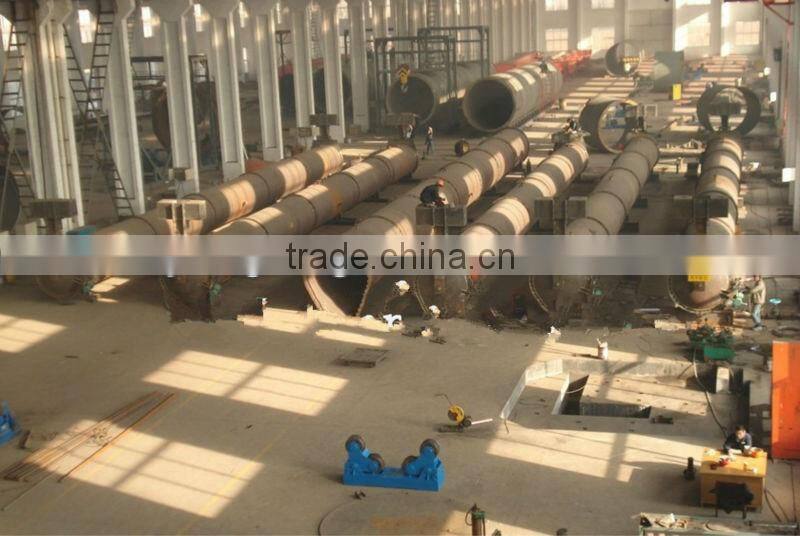

IV. A part of our workshop

V. Some of our clients
