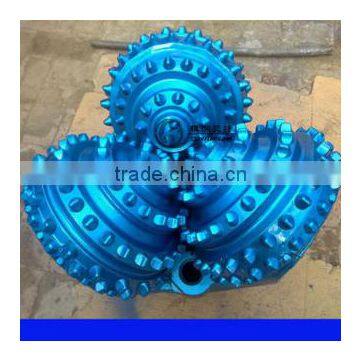

17 1/2 IADC537 TCI tricone drilling rock bit

1.Specifications and Data:

Package:

1.All the Tricone rock bit are usually packed by wooden case, which is strong and safe. We assure that the products will arrive in good conditions.

2.All the PDC bit are usually packey by iron case,Which more stronger and safer, we assure that products will arrive in good conditions.

Shipping by sea:
We can handle shipment as well. Please let me know the possible order quantity and your destination sea port. I can check freight and let you know the relevant cost

Our aim is to supply the best quality products and the fastest and best service to meet every client's satisfaction. Contact me when there is any inquiry or question.   Let's work together to bring your dream to reality.

Step:

1. firstly contact us, let me know u have the need about the bit.

2. Decide the size and IADC code in accordance with client's requirement and our recommendation

3. We will give the best offer.

4. Client's accept the offer and we send proforma invoice.
5. Client transfers 30% deposit and production begins.
6. After production, we will send ready products photo.

7. After client's confirmation, we will arrange shipment, and send copy shipping documents like B/L,

commercial invoice and packing list.

8. Client transfer balance payment and we will send original documents by express or Telex Release.

Our advantage:

1. Cutting Structure of this series tricone rock bit :
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.

2. Gauge Structure of this series tricone rock bit :
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.

3.Bearing Structure of this series tricone rock bit :
High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.

4.Seal and Lubrication of this series tricone rock bit :
The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.

5.Product Application of this series tricone rock bit :
It is suitable for downhole motor and high speed applications.
