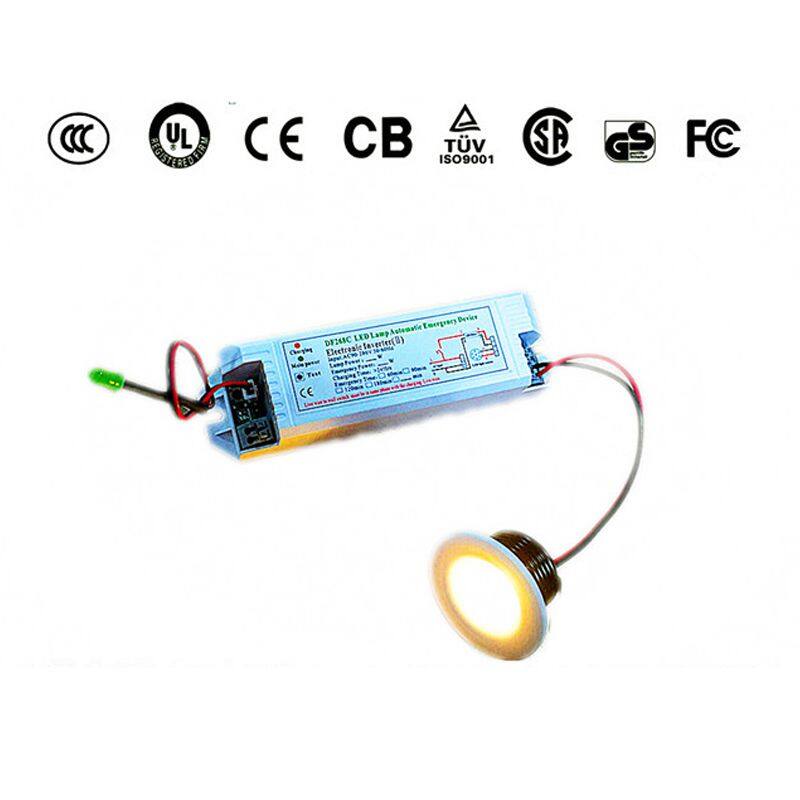

DF268C 90 Minute Backup Time Emergency LED Driver for downlight

DF268C 90 Minute Backup Time Emergency LED Driver for downlight

DF268C is suitable for 3W-40W LED ceiling lights, three-guard lights, panel lights, downlights and other emergency lighting with reduced power; LED luminaire external drive power.

When used with 3.7V ternary lithium battery pack, 3.6V nickel-cadmium or nickel-metal hydride battery pack can also be used as split emergency power supply;

It does not affect the lighting when there is electricity, and reduces the power to 1-3W or 3-5W emergency lighting after power failure;

International line, two-color indicator, test button; Fully enclosed or semi-enclosed housing;

No-load protection, constant current limited voltage charging, charge and discharge dual protection board to ensure the safe use of lithium battery pack;

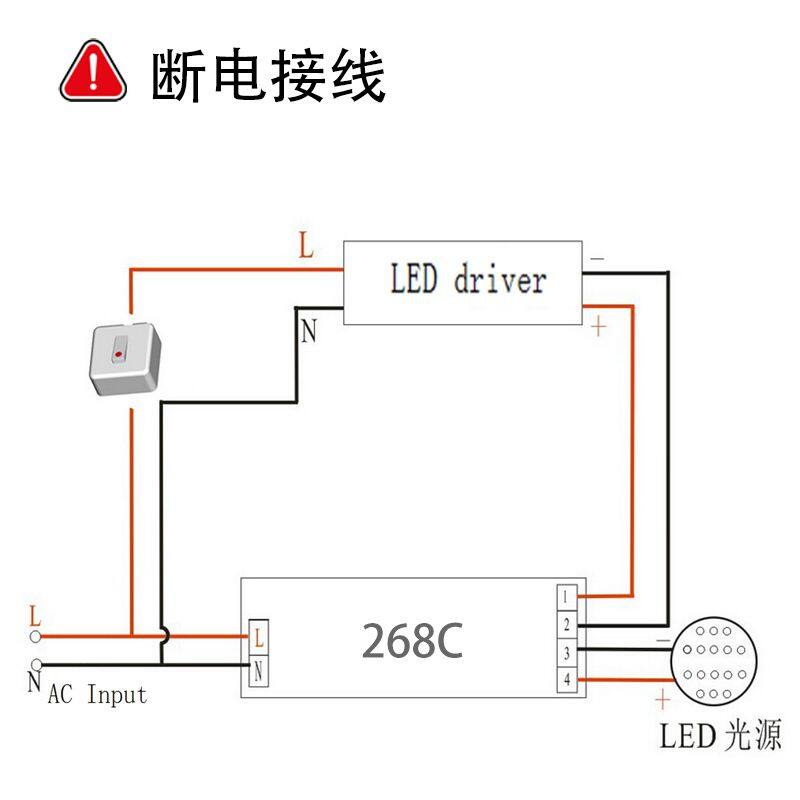

Connect the circuit in strict accordance with the wiring diagram, and do not open the cover at will;

The user can regularly check the discharge of the inverter, that is, cut off the mains power supply, and use the battery discharge lighting to automatically terminate;

Technical parameters:

Input: AC90-280V/50HZ-60HZ

Output: DF3V-120V

Power: 3W-5W, or custom output power

Emergency time: 1-3 hours, or according to customer requirements;

Battery: 3.7V Li-ion battery /3.6V nickel battery pack

Charging current: 150mA

Overall emergency power supply size/length * width * thickness =150*40*30mm

Weight =200g

Other detailed parameters of the overall emergency power box are subject to the specifications.

Certification: CE/FCC/ROHS/MSDS/PI967
