Home > Products > Tricone Bits > Good Price 24" ISO Tricone Bit/construction Equipment and Tool
Good Price 24" ISO Tricone Bit/construction Equipment and Tool
- Tianjin Port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Kingdream, CS, Lilin, Huanyu, Smith and so on | |
| Model Number | good price 24" ISO tricone bit/construction equipment and tool | Type | Other, drill bit, :tricone drill bit | |
| Material | Tungsten Carbide | Use | Other, Well Drilling, gas, water and oil well drilling |
Product Description
24" IADC KN211 steel tooth bit/milled tooth bit/rock drill bit
good price 24" ISO tricone bit/construction equipment and tool
Product Specifications
10) RPM:180-80r/min
11)Applicable Formations:Soft formations with high compressive strength, such as medium soft

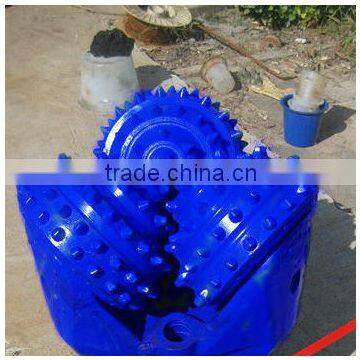

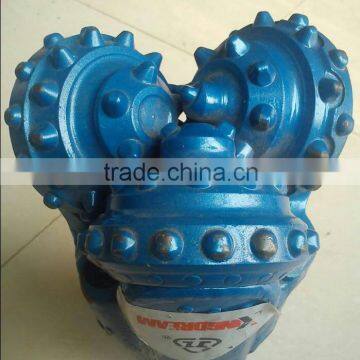

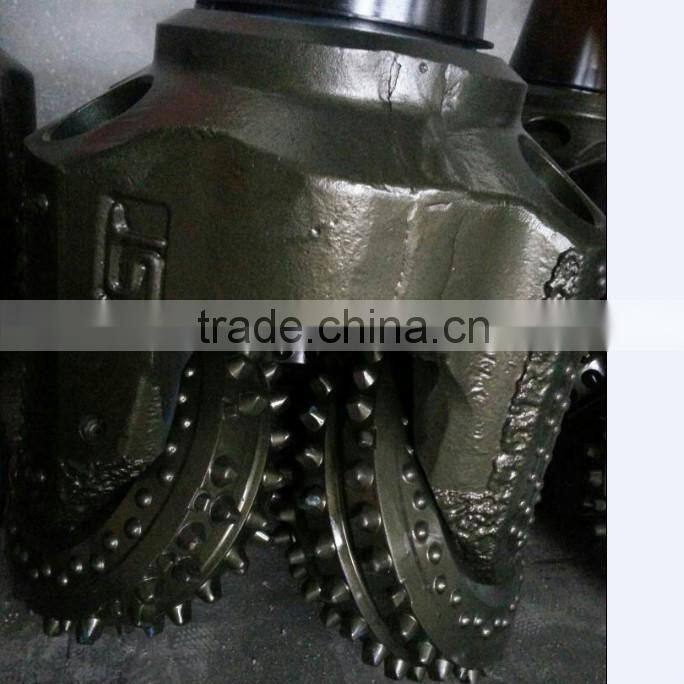

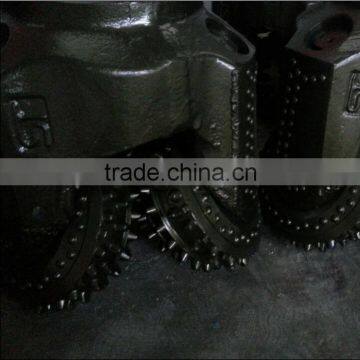

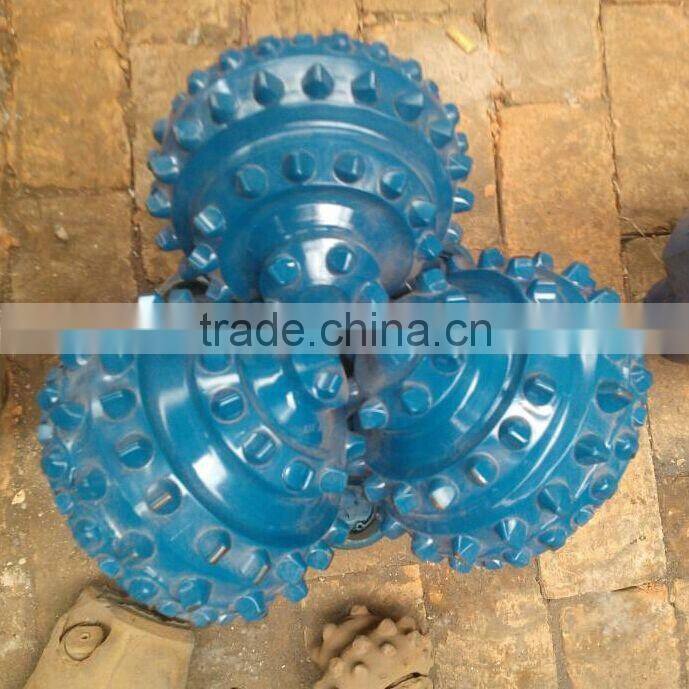

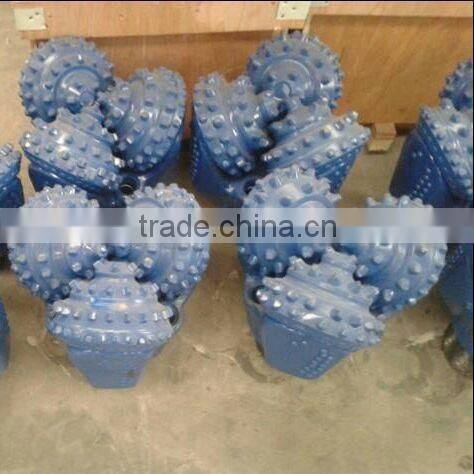

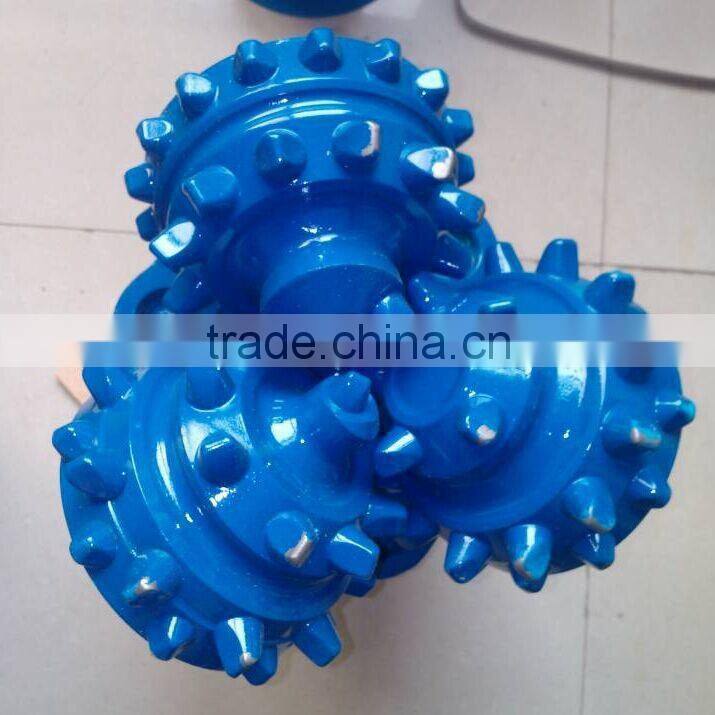

1. Pics
2. Size
SIZE | TYPE | PIN SIZE | WEIGHT(ibs.) |
4 3/4 | IADC517,547 | 2 7/8 | 24.2 |
4 7/8 | IADC547 | 2 7/8 | 26.4 |
5 1/2 | IADC547 | 3 1/2 | 29.7 |
5 5/8 | IADC547 | 3 1/2 | 30.2 |
5 2/3 | IADC546 | 3 1/2 | 30.8 |
6 | IADC417,447 | 3 1/2 | 35.2 |
6 1/8 | IADC547 | 3 1/2 | 37.4 |
6 1/4 | IADC517,537 | 3 1/2 | 37.4 |
6 1/2 | IADC517,547,817 | 3 1/2 | 44 |
6 3/4 | IADC517,537 | 3 1/2 | 50.6 |
7 1/2 | IADC517,545,547,625,627,835 | 4 1/2 | 66 |
7 7/8 | IADC417,517,527,537,817 | 4 1/2 | 72.6 |
8 1/2 | IADC417,435,437,517,535,537,547,625,627,635,745,835,837 | 4 1/2 | 81.4 |
8 3/4 | IADC437 | 4 1/2 | 88 |
9 5/8 | IADC535 | 6 5/8 | 121 |
9 7/8 | IADC517,537,737 | 6 5/8 | 127.6 |
10 5/8 | IADC437,535,537,545,547,627,745 | 6 5/8 | 167.2 |
11 | IADC617 | 6 5/8 | 173.8 |
11 5/8 | IADC535,545,625 | 6 5/8 | 198 |
12 1/4 | IADC437,517,535,537,617 | 6 5/8 | 204 |
15 1/2 | IADC545,615 | 7 5/8 | 440 |
17 1/2 | IADC535,545 | 7 5/8 | 594 |
IADC code | WOB (KN/mm) | RPM (r/min) | Applicable Formations |
114/115 | 0.25~0.70 | 200~80 | Very soft with low compressive strength strength and high drillability, such as soft shale,clay and salt bed,etc |
116/117 | 0.35~0.90 | 150~80 | Hardfaced tooth surface and gage, high cutter exposure and the gage fitted with compacts |
126/127 | 0.35~1.0 | 150~70 | Hardfaced tooth surface and gage, high cutter exposure and the gage fitted with compacts |
136/137 | 0.35~1.05 | 120~60 |
Hardfaced gage and all tooth surfaces and the gage fitted with compacts for enhanced protection |
216/217 | 0.5~1.20 | 100~50 |
Hardfaced gage and all tooth surfaces and the gage fitted with compacts for enhanced protection |
Note: The upper limits of WOB and RPM in above table should not be used simultaneously. | |||

We have been in the drill line for many years and get high reputation from all of our customers, such as CNPC(China National Petroleum Corporation)&Sinopec.
We are looking forward to getting letters from you to build long-term cooperative relationship.
The win-win situation is coming, what are you waiting for?
