Home > Products > Integral rod > Drill Deep Hole Chisel Bit Plug Hole Rod
Drill Deep Hole Chisel Bit Plug Hole Rod
- Xiamen
- T/T Credit Card
You May Like
-
Sales Coal Mine and Quarry Rock Tools Integral Drill Rod
-
Bestlink Various Size Rock Driiling Integral Steel Rod
-
High quality Hex22 *108mm mining monoblock steel rod in quarry
-
High quality Hex19 22 *108mm mining monoblock drill steel rod in quarry and mine
-
High quality Hex22 *108mm mining monoblock drill steel in quarry and mine
-
Hex22 *108mm mining monoblock drill rod in quarry and mine
Product Details
Place of Origin | Fujian, China | Brand Name | BESTLINK | |
Model Number | Hex22 plug hole rod | Type | Other, Drill Shank, Plug hole rod | |
Machine Type | Drilling Tool | Material | Other, Carbide, 55SiMnMo | |
Processing Type | Forging | Use | Ore Mining |
Wooden Cases or Cartons, or according to customer's requirements for Drill Deep Hole Chisel Bit Plug Hole Rod
Product Description
Drill Deep Hole Chisel Bit Plug Hole Rod
Our factory can offer many kinds of drilling tools, including chisel type bits, cross type bits, tapered drill rods, plug hole rod and integral drill rods and so on.
Products Features:
Plug hole rod are normally produces Hexagon 22*108 Drill Steel, where the dimension given are measured across the flat of the hexagon.
Plug hole rod are a fixed length with a shank at one end and a bit at the other, and are able to drill to a depth equivalent to their effective length.
The bit may consist of single chisel shaped tungsten carbide insert or three such inserts.
To drill deep holes, the rods are designed to be used in a series where the lengh of any rod used in longer than the one used just before it.
To do this ,a series of rods must be produced so that the bit diameter is reduced for each increase in lengh if rod to prevent jamming of the bit in the hole.
Products technical data:
The plug hole rod in this brochure are the most cmmonly used.
For other bit diameters and lengths please contact us.
Shank | Turned length (TL) | chisel Bit D | Weight |
mm | mm | mm | kg |
Hex 19 x 108 | 150 | 7 20 22 | 0.6 |
200 | 20 22 | 0.6 | |
250 | 20 | 0.8 | |
Hex 19 x 82.5 | 280 | 20 22 | 1 |
Hex 22 x 108 | 150 | 17 20 22 | 0.7 |
200 | 17 20 22 | 1 | |
250 | 17 20 22 | 1.1 | |
300 | 17 20 22 | 1.7 | |
200 | 17 20 22 | 0.8 | |
250 | 17 20 22 | 0.9 | |
300 | 17 20 22 | 1.5 | |
350 | 17 20 22 | 1.8 | |
550 | 17 20 22 | 2.4 | |
710 | 17 20 22 | 2.9 |

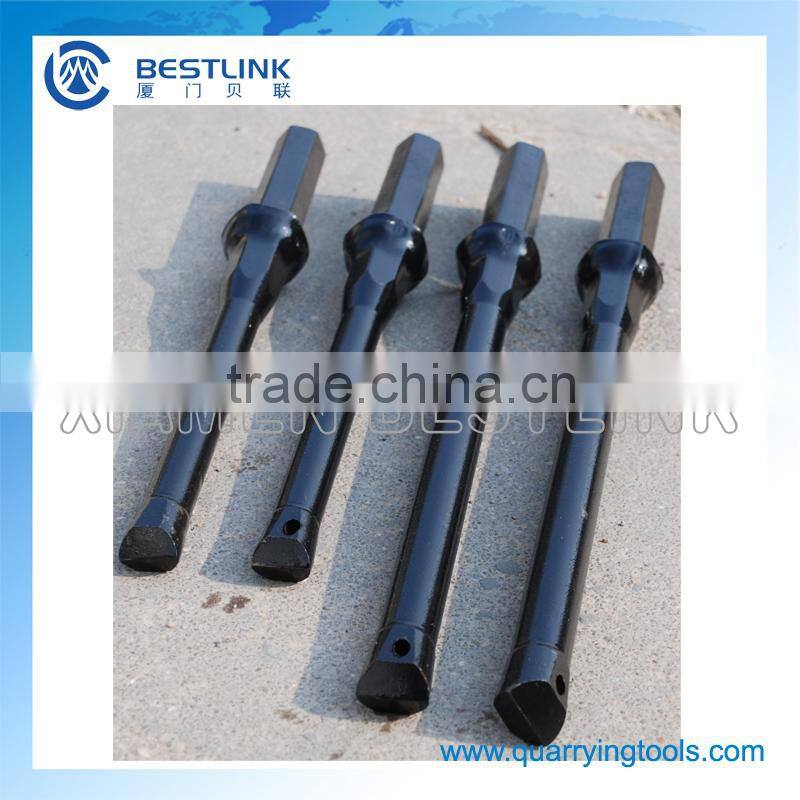

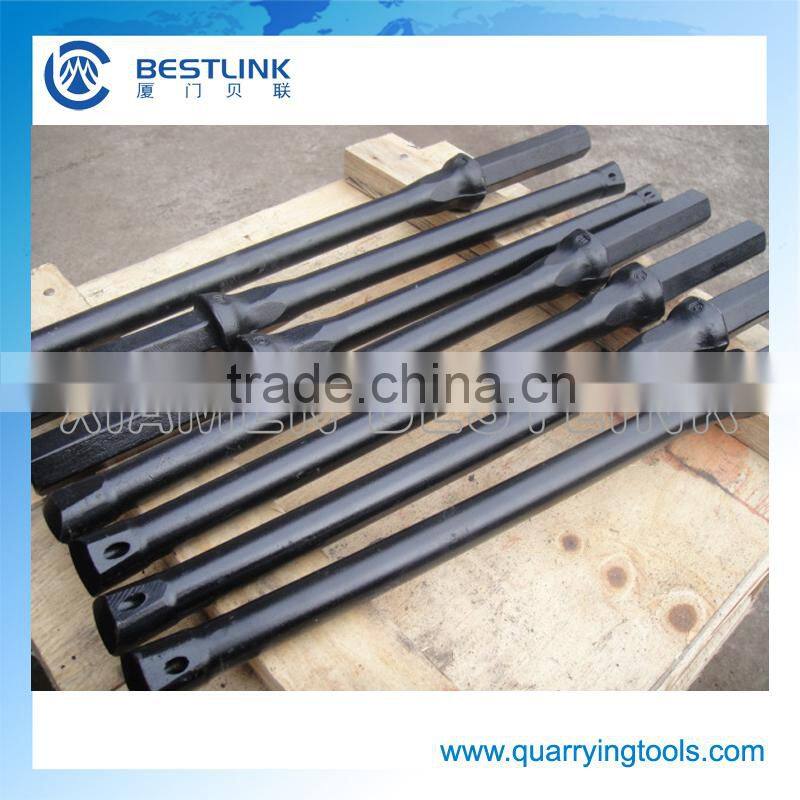

Products pictures for your reference:

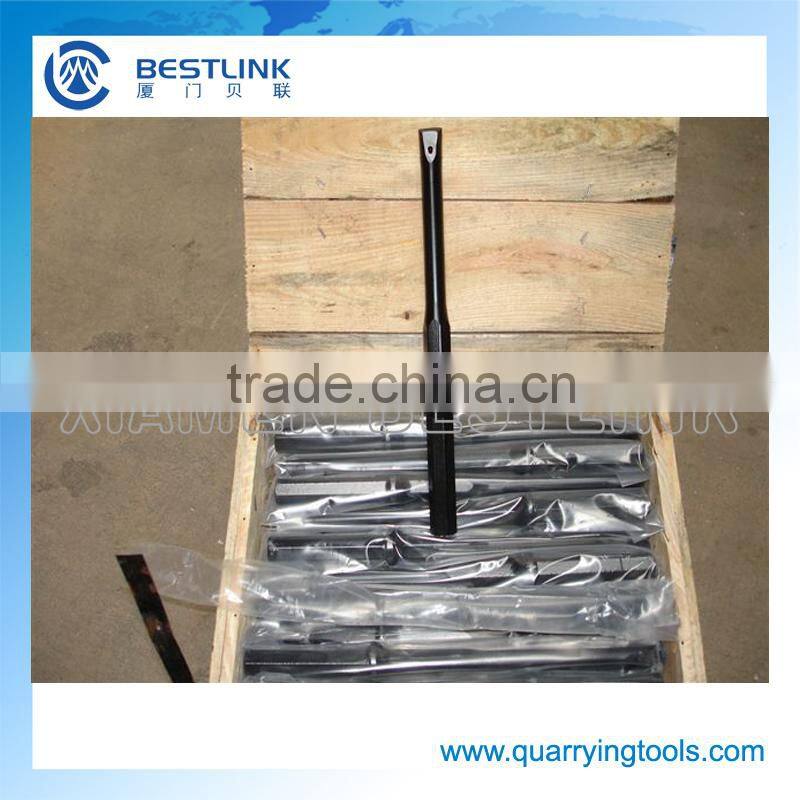

Packing pictures for plug hole rod:
The plug hole drill rod will be packaged by Wooden Cases or Cartons, or according to customer's requirements. Here is the picture for your reference:
Company Profile

Xiamen Bestlink Factory Co., Ltd. is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China. Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries. From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market. Now, we are only a producer and exporter just now from China. In 2004, we developed and produced the patented products: Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker. We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities. Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation. We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world NO.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years. Thank you very much for your support and wish to get your deep interest and be your best partner.
