Home > Products > Gasoline rock drill > YN27C Portable Bore Hole Hard Rock Drill
YN27C Portable Bore Hole Hard Rock Drill
- XIAMEN
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Gasoline Rock Drill, Rock drill | |
| Power Type | Gasoline | Place of Origin | Fujian, China | |
| Brand Name | BESTLINK | Model Number | YN27C | |
| Usage | Other, Hard Rock drilling | Dimension(L*W*H) | 746*315*229 MM | |
| Weight | 27 KGS | Certification | CE | |
| Warranty | One Year |
Wooden case or according to customer's requirement for YN27C Portable Bore Hole Hard Rock Drill
Product Description
YN27C Portable Bore Hole Hard Rock Drill
Product Feature:
The internal combustion gasoline rock drill model YN27C is a portable rock drilling tool, combined of a small petrol engine, an air compressor and a rock drill. During operation, rock powder is blown away by the compressed air produced by the machine itself.it also can be used with supporting stand.
Advantage:
1. This gasoline rock drill is portable, can be carried and work anywhere, even in the place without any power supply.
It is easy to be carried with its light weight,and suitable for working on high mountains, plains, hot and cold condition where there is no any of power, water supply and air compressing equipments. Especially, suits the projects that the machine has to be carried at any time and in any area.
2. A wide range of application.
With turning the swing arm to running-or-stop rotation plumbum,the machine can be used as a tool for breaking, percussive drilling, tamping besides rock Drilling.it is suitable to build bridge, road, powder station, geological exploration etc.
Main Technical Data:
| Model | YN27C | ||||
| Weight of main machine | 27kg | ||||
| Overall dimensions(L*W*H) | 746*315*229mm | ||||
| Type of engine | Single cylinder, air cooled two strokes | ||||
| Cylinder diameter*stroke of piston | Φ58*70mm | ||||
| Rotation speed of engine | ≥2450rpm | ||||
| Displacement of engine piston | 185cm³ | ||||
| Type of carburetor | hand needle valve, floatless type | ||||
| Ignition system | controllable silicon, contactless system | ||||
| Drilling speed (mean value of five holes) | ≥250mm/min | ||||
| Drilling hole diameter | 28-42mm | ||||
| Max drilling depth | 6m | ||||
| Fuel consumption | ≤0.12L/m | ||||
| Tank capacity | ≥1.5liter | ||||
| Mixture ratio of gasoline and lubrication oil (in volumes) | 12:1 | ||||
| Drill rod and breaker shank | Hex22*108mm | ||||
| Rotating speed of drill rod | ≥200rounds/min | ||||
| Clearance of spark plug | 0.5-0.7mm |
Packaging FYR:

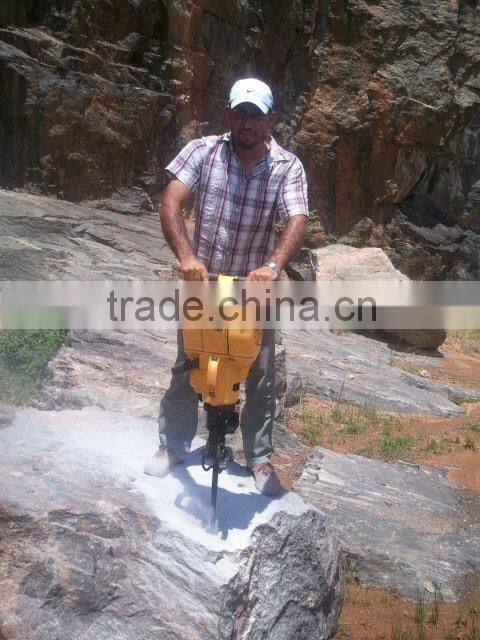

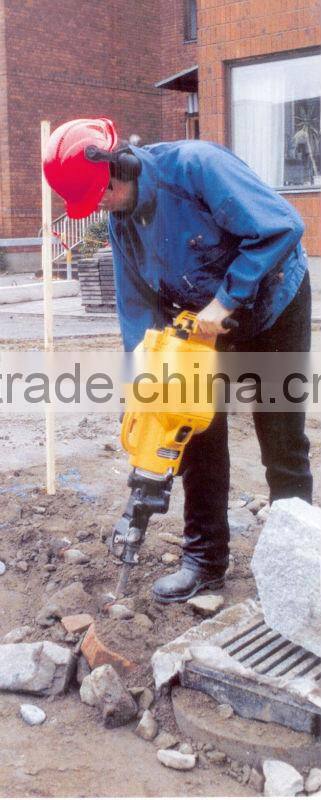

Working in jobsite:
Company Profile
Xiamen Bestlink Factory Co., Ltd. is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China. Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries. From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market. Now, we are only a producer and exporter just now from China. In 2004, we developed and produced the patented products: Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker. We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities. Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation. We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world NO.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years. Thank you very much for your support and wish to get your deep interest and be your best partner.
