Hot Sale PVC Drain Pipe Extruder/making Machine/production Line
- QING DAO
- T/T
You May Like
Product Details
| Condition | New | Application | Sheet | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | Automatic | Place of Origin | Shandong, China | |
| Brand Name | ASUN | Model Number | AS/50 | |
| Voltage | 380V | Power(W) | 160KW | |
| Dimension(L*W*H) | 18m*3m*3m | Weight | 5-12T | |
| Certification | CE certificate | After-sales Service Provided | Overseas service center available |
Product Description
hot sale PVC drain Pipe extruder/making machine/production line
1. Plastic PVC Drain Pipe Production Line Process flow:

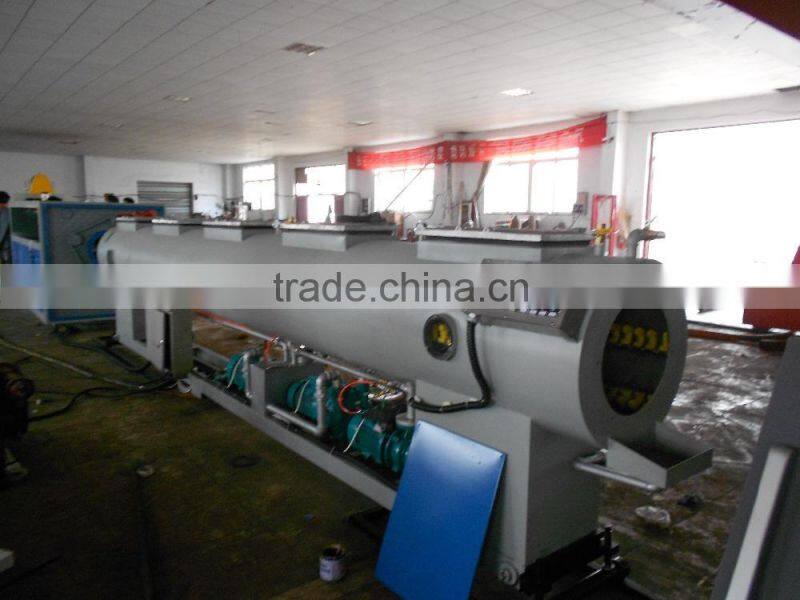

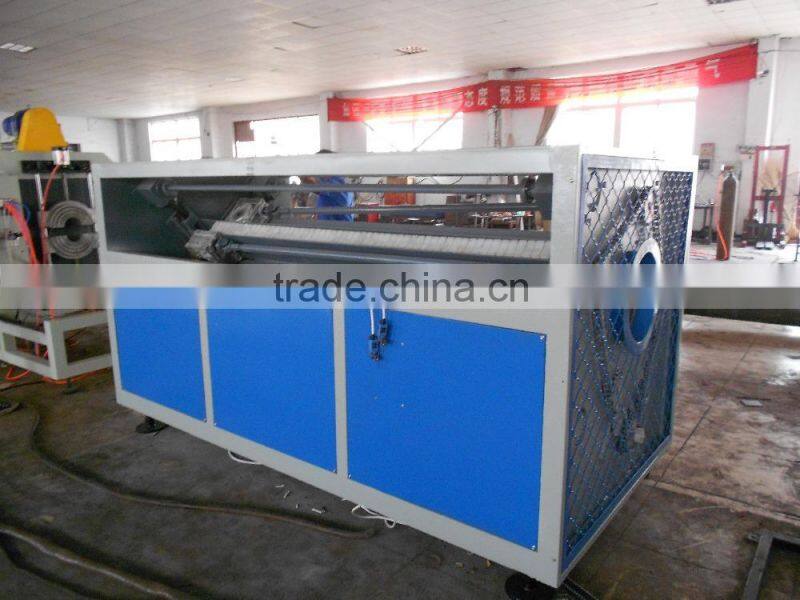

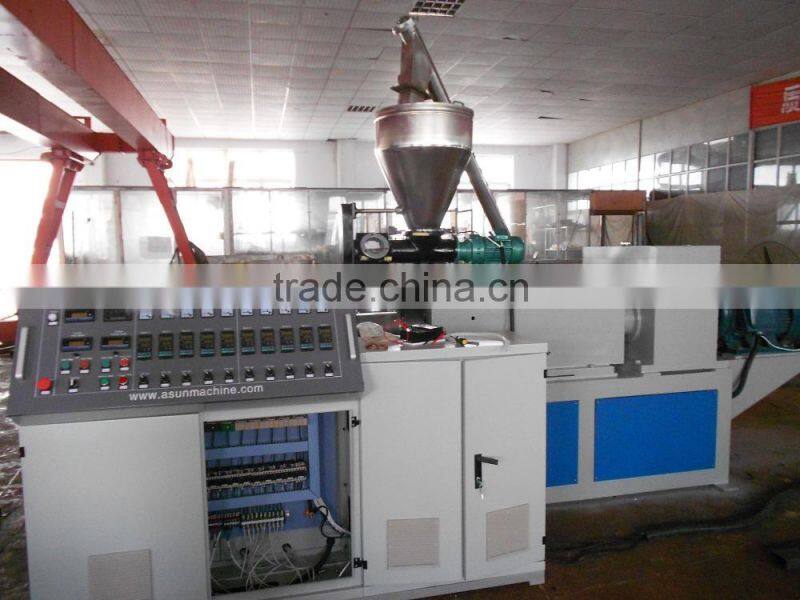

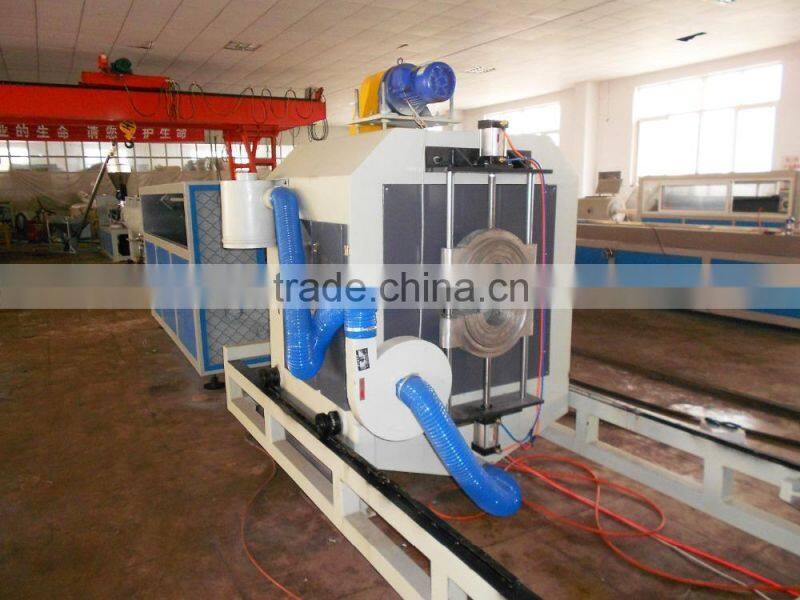

Crusher → Mill machine → PVC powder + additive → Mixer → screw charger→ Double screw extruder → mould → calibrator → vacuum calibration tank→ printer → haul-off → cutter → pipe discharging rack
2. Plastic PVC Drain Pipe Production Line Technical parameter:
Plastic PVC Drain Pipe Production Line is a kind of special equipment for extruding of PVC powder.With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation. It can also extrude PP.PE pipe at high speed by changing special barrel.It is mainly used for plasticizing, extruding and forming of PVC pipe, profile, sheet, film and granules etc.
| Model | machining pipe diameter(mm) | Extruder model | Vacuum calibration tank model | Haul-off unit model | cutting unit model | Total power(Kw) | Max. output(kg/h) |
| PVC63 twin cavities | 16-63 | SJZ65/132 | SGF-63 | Twin caterpillar type | Twin saw-blade type cutter | 90 | 200 |
| PVC110 | 20-110 | SJZ55/110 | GF-110 | two-claw type | saw-blade type cutter | 70 | 160 |
| PVC160 | 32-160 | SJZ65/132 | GF-160 | two-claw type | saw-blade type cutter | 87 | 250 |
| PVC250 | 63-250 | SJZ80/156 | GF-250 | three-claw type | Planetary cutting | 115 | 380 |
| PVC400 | 110-400 | SJZ80/156 | GF-400 | four-claw type | Planetary cutting | 131 | 380 |
| PVC500 | 160-500 | SJZ92/188 | GF-500 | six-claw type | Planetary cutting | 650 | 750 |
| PVC630 | 250-630 | SJZ92/188 | GF-630 | six-claw type | Planetary cutting | 750 | 750 |
| PVC800 | 450-800 | SJP130/23 | GF-800 | eight-claw type | Planetary cutting | 900 | 900 |
