Price of 2400mm A4 Paper Machinery Production Line

A4 paper machinery production line of 3500mm type to produce 100T per day

/v_show/id_XMTI3NTM2NDYxNg==.html

Mainly Paper Making Machine We Can Produce:

Toilet Tissue Paper Making Machine

Technical Specification:

Output: Toilet tissue paper

Sizing forms: Vacuum mould/crescent forming device

Paper width: 1092-3600mm

Paper weight: 13-30gsm

Nominal output: 1-50T/D

Design speed: 800m/min (max)

Working speed: 700-750m/min (max)

The center distance: 1900-4800mm

Drive mode: Frequency control

Layout: Single floor

Auxiliary equipment: Breathing steam hood

A4 Paper Making Machine

Technical Specification:

Output: A4 paper

Paper width: 1760-3600mm

Paper weight: 50-80gsm

Capacity: 5-120T/D

Design speed: 450m/min (max)

Working speed: 350-420m/min(max)

The center distance: 1900-4800mm

Drive mode: Frequency control

Layout: Double layout

Auxiliary equipment: Closed steam hood

Newsprint Paper Making Machine

Technical Specification:

Output: Newsprint paper

Paper width: 2400-3880mm

Paper weight: 50-80gsm

Production: 10-150T/D

Design Speed: 400m/min (max)

Working Speed: 350-400m/min(max)

Transmission form: Frequency control

Layout: Single arrangement

High-strength Corrugated Paper Making Machine

Output: High-strength corrugated paper

Paper width: 1575-5600mm

Paper weight: 80-130gsm

Production: 10-400T/D

Design speed: 500m/min (max)

Work speed: 450-500m/min

Drive way: Frequency control

Layout: Single arrangement

Auxiliary equipment: Closed hood

Board Paper Making Machine

Output: Bobbin paper/ board paper

Paper width: 1575-4800mm

Paper weight: 450-800gsm

Production: 400T/D

Design speed: 150m/min

Working speed: 80-130m/min

Drive way: Frequency control

Layout: Single floor

1. We will send technicians to installand test the machine for you.

2.  We will train skilled workers for you.

3.  We will supply best after-sale service.

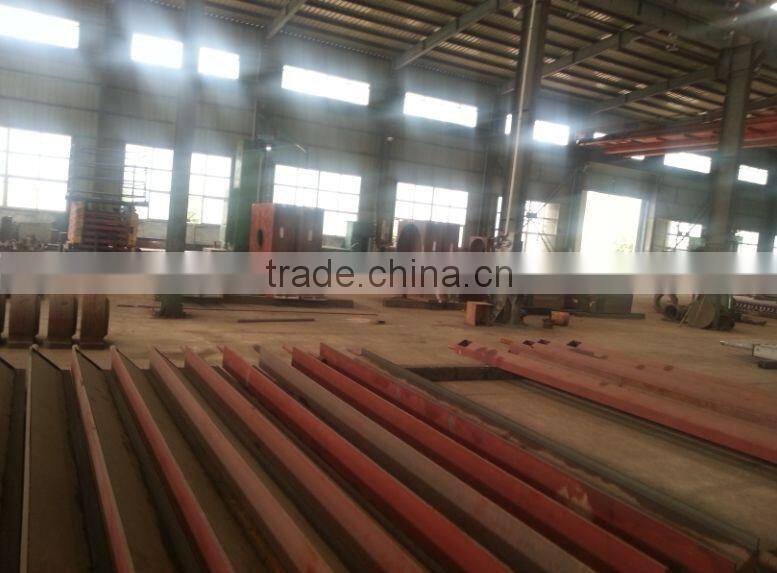

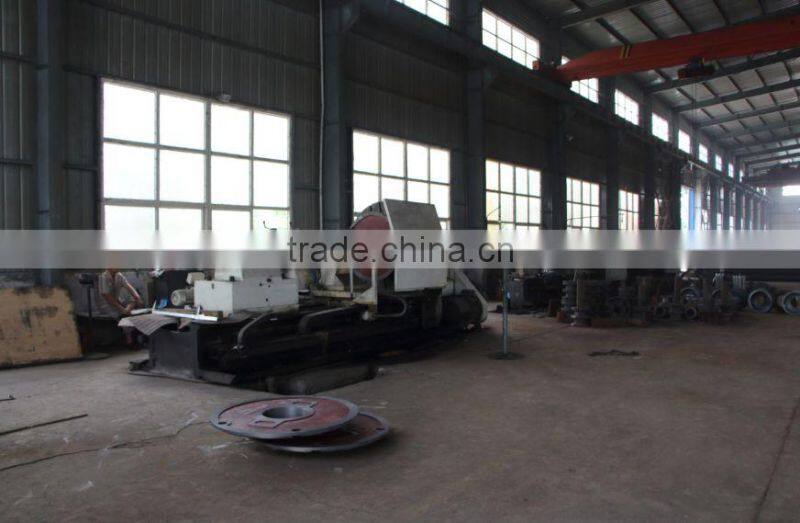

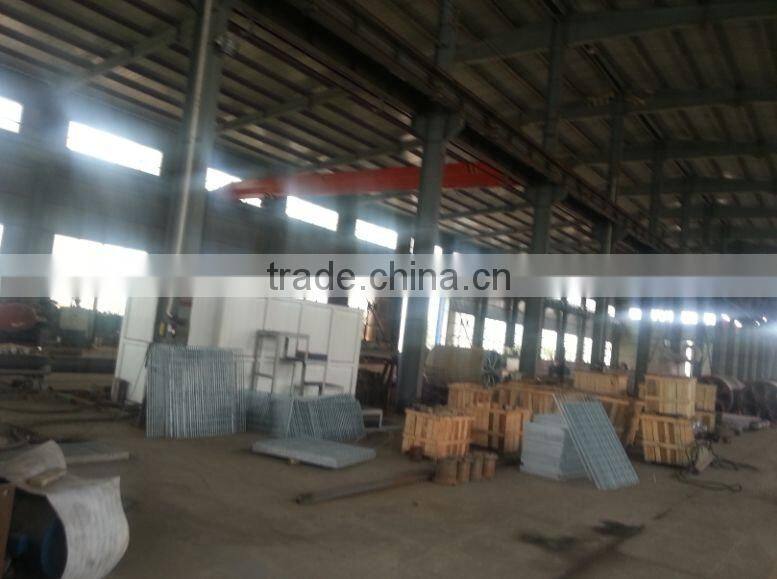

 We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard.  Our paper machine is running well in more than 20 countries.  We are gold supplier on alibaba.  Our guarantee period is 1 year.  If there are any quality problems, We will help you at any time.
