Home > Products > Ventilation Fan > Experienced Manufacture for Low Noise Ventilation Fan , Acoustic Fan ,Acoustic Box Fan
Experienced Manufacture for Low Noise Ventilation Fan , Acoustic Fan ,Acoustic Box Fan
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CE, RoHS, FCC,SAA Certificated Greenhouse 6 Inch Cast Iron Axial Flow Type Small Ventilation Inline Duct Fan With Different Size
-
Quolified Steel Acoustic Fan / Silent Duct Fan / Centrifugal Ventilation Fan
-
Heay-duty Noiseless Steel Acoustic Inline Duct Fan With Good Performance
-
Variable Speed & TEMP Control Circulation Axial Flow Ventilation Inline Duct Fan / Hydroponics AC Inline Duct Booster Fan
-
Good Quality Acoustic Blower Fan / Rectangular Inline Duct Fan / Install Inline Duct Fan
-
Variable Speed & TEMP Control Axial Flow Type Ventilation AC Inline Duct Fan / 6 Inch Centrifugal Blower Fan
Product Details
| Electric Current Type | AC | Blade Material | Other, iron | |
| Mounting | Duct Fan | Place of Origin | Guangdong, China | |
| Brand Name | hzzygk or oem | Model Number | HCSF-120 | |
| Power | 100-87W | Voltage | 230V/50Hz | |
| Air Volume | 770/620M3/h | Speed | 2500rpm | |
| Certification | CE, ROHS, CCC, CE, ROHS | After-sales Service Provided | Overseas service center available |
Product Description

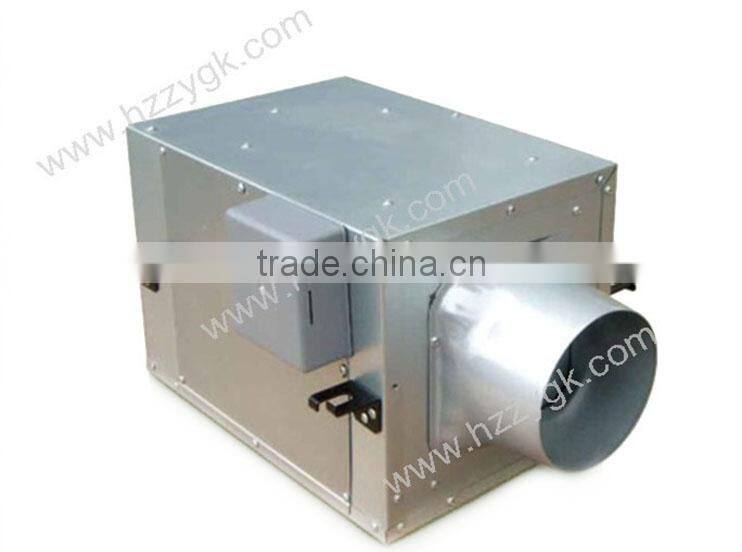

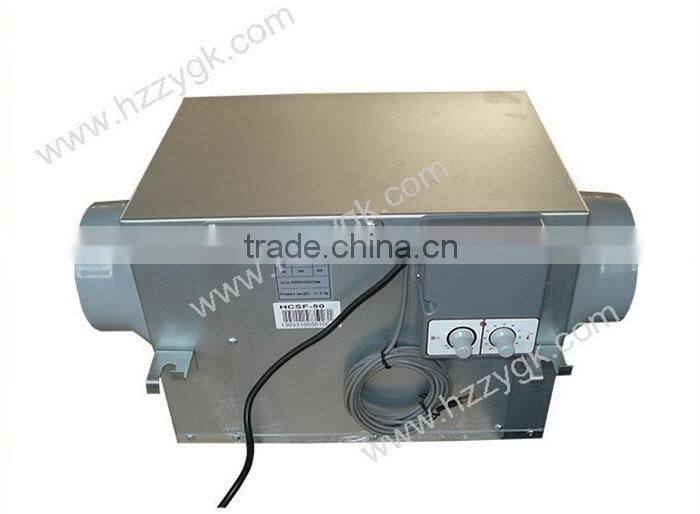

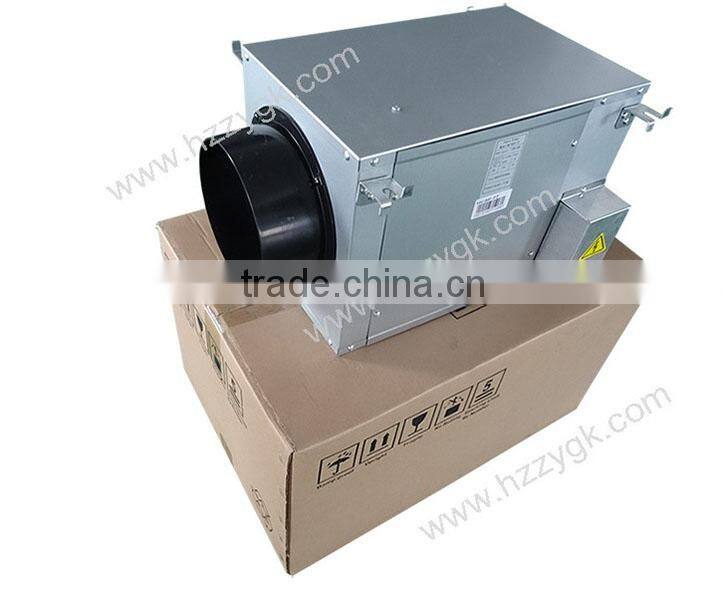

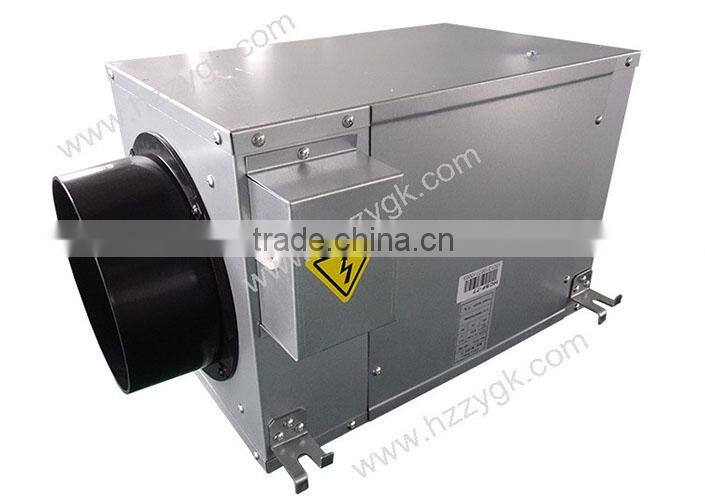

Experienced manufacture for low noise ventilation fan , Acoustic fan ,Acoustic Box fan
Performance Parameter
Model | Power | Volume | Noise | Static Pressure | Vent Dia. |
( W ) | ( M³/h ) | ( dB(A) ) | ( Pa ) | ( MM) | |
HCSF-18 | 19/12 | 180/120 | 26/23 | 113/100 | 100 |
HCSF-37 | 38/32 | 370/300 | 27/25 | 132/110 | 125/150 |
HCSF-50 | 60/50 | 500/400 | 29/26 | 167/110 | 125/150 |
HCSF-77 | 100/87 | 770/620 | 35/32 | 180/120 | 200/160 |
HCSF-92 | 135/120 | 920/770 | 36/31 | 180/100 | 250 |
HCSF-120 | 180/155 | 1200/900 | 41/36 | 190/110 | 250 |
HCSF-170 | 200/164 | 1700/1380 | 43/40 | 220/150 | 250 |
HCSF-190 | 300/230 | 1900/1600 | 46/42 | 250/160 | 250 |
Main Function
1) With Temperature and speed controlled
2) With panasonic brushless dc motor, lower noises, saving energy more, saving electricity 30% very high cost-effective.
3) You can adjust the output of the motor according to the actual request, and realizes conforms to the different distance, different air house air volume request, with satisfactory.
4) High quality two speed motor. low noise, maintenance-free continually movement.
5) Shell produced by using the high-quality steel which enables the products to be superb.
6) High static pressure, the blast is away from far, good effect.
7) Choosing the properties freely, and can be used to supply or exhaust air.
