full color SD card programmable led controller for led light
- 100 Piece / Pieces per Month
- shenzhen
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ADS | |
| Model Number | ADS-T1000S |
Product Description

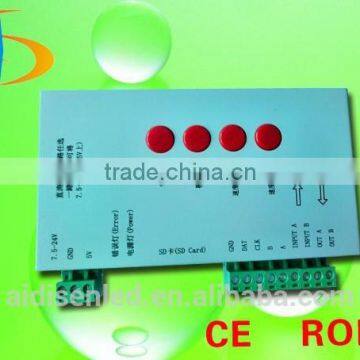

programmable SD card led controller T-1000CS
Basic parameters: T-1000S System features
1, 32—256 Gray,Support software Gamma correction.
2, Support the rules and special-shaped handle.
3, Single-port output,can support 2048 lights.
4, Off-line(SD Card) control, play back content stored in the SD card.
5, T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,
after formatting the SD card as “FAT” format.
6, The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.
7, Compatible with single line or double line chips.
Controller Information
Items | Parameter |
Input voltage | AC110V/AV220V |
Plug | GB,UK,USA and so on |
Power | <3w |
Control protocol | ICC, DMX 512/1990 |
Stand by IC | lpd 6803,SM 16716,ws 2801,2803, usc1903,tm 1812,1811 and so on |
control point | 2048 pcs or 512 channels |
Gray grade | 256 gray |
SD Card | FAT ,FAT16 |
work termperature | -40-60 degree |
speed | Default 20 frames / sec; DIP switch can switch between 1-40, 8-level |
indictior light | power indicator light(Green,Power),Play speed light(Red,State) |
Weight:0.35KG
Size: 159*89*24 mm
Animation, Text, Video, etc
