Qingdao16-63 PVC conduit pipe production line

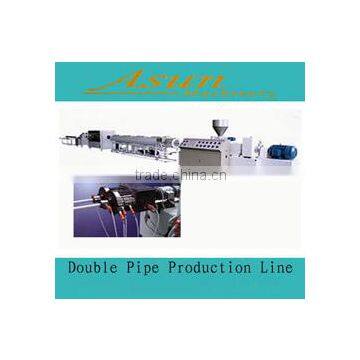

PVC conduit pipe production line

Mainly used for the PVC conduit pipes extruding at the same time. The pipes diameter range:16mm, 20mm, 25mm, 32mm, 40mm,53mm ,63mm.The pipes used for the electrical wire transport and the dirty water discharge .

 composition:

 advantages:

1. conical twin screw extruder: SJSZ-51/105.it equipped with the over-load protectionand  stoppage   alarming  system.The screw's core and the outside of the barrel is cooled by circulation of oil, it  includes vacuum venting and forced feeding.

2. extrusion moulds ,mould steel

3. twin vacuum calibrating tanks,4m,consist of two stainless steel sizing boxes actually, which are Use

    automatic controller and motor to control the liquid level and movements respectively;

4. twin haul-off machines, 1,1kwx2 ,adopts frequency conversion  and the clamping is in a    pneumatic way;

5. twin cutting machines. 1.1kwx2,The cutter is of automatic metering and cutting;

6. Stackers, 4-6m,it can turn automatically;

7. powder loader. ZJF300,it can automatically carry plastic powder into the hopper, it can save labor,realize the safety and reliability.

Eletrical Parts

1. Main motor frequency controller : FUJI or ABB

2. Temperature controller : OMRON or RKC

3. AC controller : Schneider or siemens

4. Thermal overload relay : Schneider

5. Switch : DELIXI or Schneider
