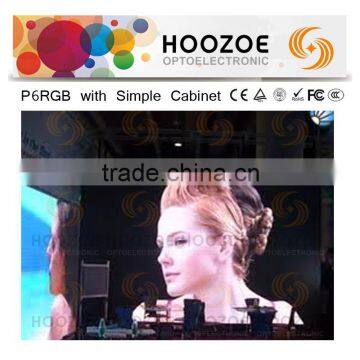

Hoozoe SImple Series- P6 RGB SMD LED Stadium Screen

FOB Price

USD $683 - $783 / Square Meter

10 Square Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Hoozoe
Model Number	Hoozoe-Outdoor-SMD-P6-RGB	Usage	Indoor
Tube Chip Color	Full Color	Display Function	Other, Video,Message,Picture,Text
Pixels	Other, 6mm	Screen Dimension	960*960mm

1.High Stability, Power Saving
2. Convenient assemble and save space
3. High Cost Performance
4. Ultrathin
5. CE, 3C etc.

P6 Full Color SMD3528 Indoor Module
Item	Unit	Parameter
Pixel Pitch	mm	6
Resolution of Module	dots	64×32
Module Size	mm	384×192
Module Weight	kg	0.3±0.05
Pixel Configuration	SMD3528 1R1G1B
Chip Brand of LEDs	Epistar
Pixel Density	dots/sqm	27,777
Brightness (White Balance)	nits(cd/sq.m)	more than 1800
Red Wavelength	nm	620-625
Green Wavelength	nm	520-525
Blue Wavelength	nm	470-475
Scan Mode	1/16 Scan
Viewing Distance	M	3--35
Best View Distance	M	6--18
Viewing Angle-Horizontal	deg.	120
Viewing Angle-Vertical	deg.	120
Module Maximum Power	W	32
Max. Power Consumption	W/sq.m	600
Avg. Power Consumption	W/sq.m	200--450
Working Voltage	5V 40A
Power Supply	AC 110/220V
Refresh Rate	Hz/S	3,000
Frame Rate	Hz/S	60
Gray Scale	4096 grades gray
Display Color	256256256
Display Function	Text,news,advertising,flash,animation
Input Signal	RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
Luminance Degradation	Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25°
Defective Dot Rate	less than 0.0001
Life Span	hours	100,000
MTBF	hours	more than 5000
Storage Temperature		45
Working Temperature		-20 -- +60
Working Humidity	10-90%RH
Control System	Synchronization or Asynchronization
Quality Certificate	ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008
Warrenty	2 Years
Working Environment	Indoor

Our Case

Reference Pictures

Connection Picture

Packaging & Shipping

Our Services

(1). Product Quality : For LED Modules , 24 hours Aging test before shippment;

For LED Display, 72 hours Aging test before shippment

which will avoid some problems and make customers satisfied with

the quality of our led products.

(2). After Sale Service : 1 year warranty ;

Complete instruction for led screen installation

Professional technical team for remote control maintenance .
