European EN12195-3 Ratchet Tpe Load Binder
- Qingdao port
- T/T L/C D/P D/A Credit Card
You May Like
-
Drop Forged EN12195-3 Red Painted Ratchet Load Binder
-
Drop Forged EN12195-3 Red Painted Load Binder for Sale
-
Drop Forged Standard L-150 With Eye Load Binder for Sale
-
High Quality EN12195-3 With Hooks Ratchet Load Binder
-
High Quality Standard L-140 Red Painted Load Binder for Sale
-
High Quality Standard L-140 With Hooks Chain Binder
Product Details
| Place of Origin | China | Brand Name | Powerful | |
| Model Number | EN12195-3 |
Product Description
| Load Binders |

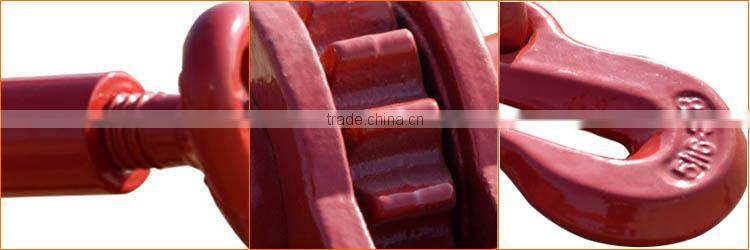

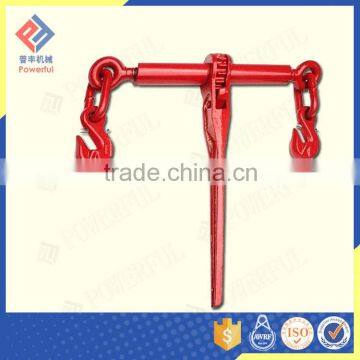

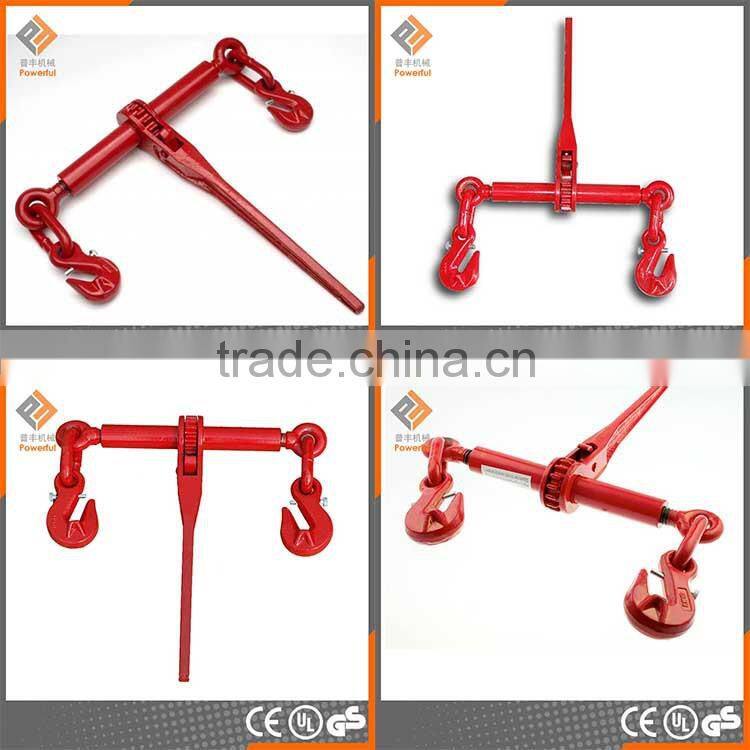

European EN12195-3 Ratchet Type Load Binder

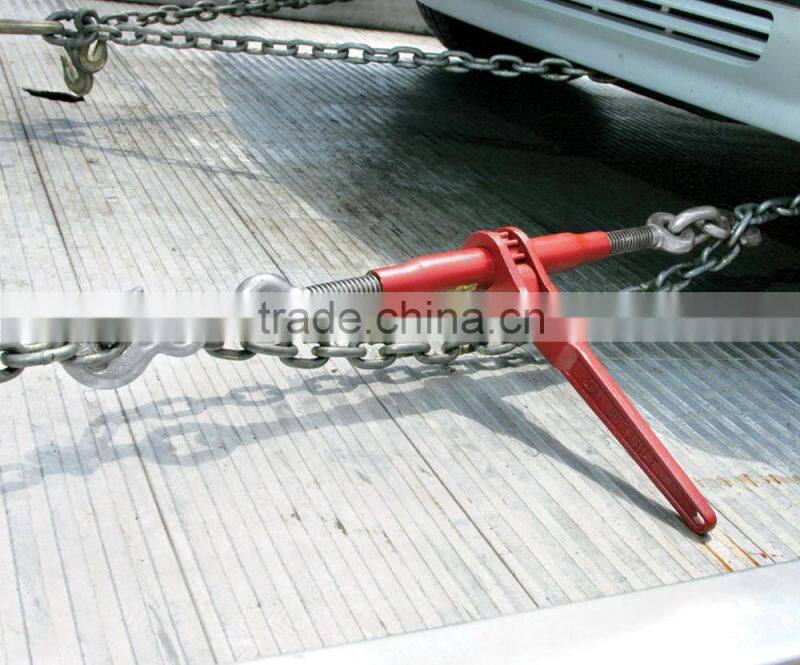

Load Binder is also known as chain binder, chain tensioners, normally used with grade 70 binder chains, it's main function is to tighten the steel chains around the loads. Load binders have 2 different flavors, ratchet binder and lever binders, with ratchet chain binder you can ratcheting the binder to tighten things up and lock binders in place, while with lever chain binder you can only tighten the chains with fixed length, and you need something else to lock the lever binder.
And there is something special with chain binders, usually a chain binder can be used with two different grades of chains, for instance, 5/16''-3/8'' chain binders can be used with grade 70 5/16'' binder chains and 3/8'' grade 43 steel chains, 3/8''-1/2'' means 3/8'' grade 70 chain and 1/2'' grade 43 chains, you get the idea. Since chain binders are manual tools, and the working load is controlled by hand operating, be careful don't overload the chain binders, use them within the rated working load limit.
| SIZE | 6MM ~ 16MM |
| WLL | 27KN ~ 160KN |
| SURFACE | Spaying Paint, Spraying Plastics, Galvanized |
| MATERIAL | 45# Carbon Steel |
STANDARD | EUROPEAN EN12195-3 Ratchet Type Load Binder |
Powerful Machinery | Specifications |
EUROPEAN EN12195-3 RATCHET TYPE LOAD BINDERS | |
| SIZE | WLL | B.L. | WEIGHT |
| MM | KN | KN | KG/PC |
| 6 | 27 | 55 | 1.7 |
| 8 | 40 | 80 | 4.7 |
| 10 | 63 | 128 | 5.4 |
| 13 | 100 | 212 | 7.5 |
| 16 | 160 | 322 | 12.5 |
| Product Details |
| Manufacturing Plant |

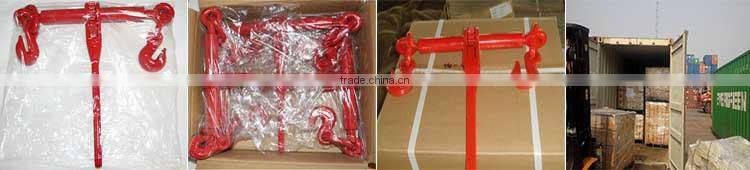

| Packaging and Shipping |
• We started as an anchor chain factory, Yongxiang Anchor Chain Co., Ltd, about 20 years ago in Qingdao, China, and gradually
developed into a big manufacturer of marine hardware supplies.
• At the same time, to meet the growing demands from our clients in new business areas, we created our trading brand - Powerful
Machinery, and expand our scope to rigging hardwares and fasteners, and other related hardware by setting up solid partnership
with other factories.
• Now we're proud to say that POWERFUL MACHINERY has ranked as top supplier on marine & rigging hardwares in northern China.
• Our products, such as high grade chains, blocks & pulleys, steel wire rope, stainless steel products, are popular in Europe, U.S,
most Asia areas for its first class quality and competitive price.
• By offering one-stop solution service, our experienced customer service team can assist you from inquriy to delivery.
