Home > Products > UPS battery > High energy density 12V/100Ah rechargeable battery pack LiFePo4 rechargeable battery

High energy density 12V/100Ah rechargeable battery pack LiFePo4 rechargeable battery

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OPTIMUM
Model Number	32650	Composed Type	Other, Cells in Series and Parallels
Type	Other, LiFePO4	Components	Other, LiFePO4
Size	Customize Accepted	Voltage	12V
Weight	16kg	Nominal Capacity	100Ah
Application	Electric vehicles, Solar systm, UPS,E-tool,medical equipment,etc.

New energy star---Optimum lithium battery 12v 100a

»»» APPLICATION:

»»» Specification:

Optimum LiFePO4 Battery/Lithium Battery Pack (12V 5Ah---400Ah)
5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
Item No.	OPT12005	OPT12010	OPT12020	OPT12025	OPT12030	OPT12040	OPT12050	OPT12060
Standard Capacity	5Ah	10Ah	20Ah	25Ah	30Ah	40Ah	50Ah	60Ah
Rated Voltage	12.8V
Discharge Cut-off Voltage	10.0V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	≤3% after one month
Life Cycles	>2000 times (with 1C constant charge and discharge deep cycle)
Max Continuous Discharge Current	2C
Max Charger Voltage	DC14.6V
Standard Charge Current	0.2C
Standard Discharge Current	1C~1.5C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
Product Size(mm)	*1515193*	*1358585*	*18276167*	*18475135*	*118175175*	*190165175*	*190165175*	*350168179*
Approx N.W	0.9Kg	1.3Kg	2.8Kg	3.5Kg	4.0Kg	5.5Kg	7.0Kg	8.0Kg
Item No.	OPT12080	OPT12100	OPT12120	OPT12150	OPT12200	OPT12200	OPT12300	OPT12400
Standard Capacity	80Ah	100Ah	120Ah	150Ah	200Ah	200Ah	300Ah	400Ah
Product Size(mm)	*260170215*	*330170220*	*339173212*	*502262242*	*502262242*	*360220262*	*502262242*	*560360200*
Approx N.W	11Kg	16Kg	19Kg	24Kg	35Kg	38Kg	45Kg	65Kg

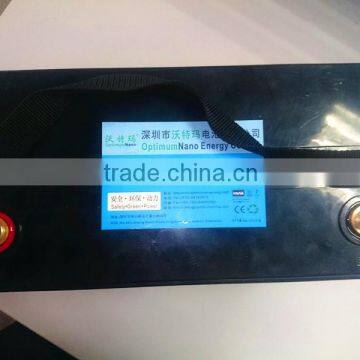

Product Gallery:

»»» Why choose LiFePO4 Battery?

Comparison with traditional batteries like SLA:

Item No.	LiFePO4 Battery	SLA Battery	Note
Weight / Power Ratio	200-300 Wh / Kg	32-37 / Kg	4:1
Dimension / Power Ratio	210Wh / L	70Wh / L	3:1
Cycle times	> 2000	300	7:1
High Rate Charge / Discharge Performace	> 96 %	60-70 %	1.6:1
Charging Performance	1 h	4 h	4:1
High Temperature Discharge Performance	-25°C~70°C / 104 % (500°C max)	-20°C~45°C / 80% (200°C max)	1.3:1
Self discharge monthly	< 3 %	> 10 %	3:1
Safety	Very stable liFePO4 Structure	Good safty	safest
Environmental	Green	Polution	Zero emission

Certificates for OPTIMUM cylindrical LiFePO4 Battery:

Production Lines of 12V battery Cells:

Newly Added Factory: OPTIMUM NANO
