ALLOY FORGED LARGE OPENING EYE HOOK WITH LATCH
- 100 Ton / Tons per Month
- ANY CHINA MAIN PORT
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | POWERFUL | |
| Model Number | LARGE OPENING HOOK | Material | ALLOY |
Product Description
Specifications
1.MATERIAL: ALLOY2.USE: GENERAL HOIST
3.ISO9001 CE GS
4.SURFACE:ZINC PLATED
5. LARGE OPENING HOOK

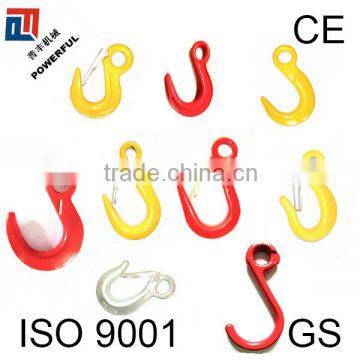

ALLOY FORGED LARGE OPENING EYE HOOK WITH LATCH
1.MATERIAL: ALLOY / CARBON STEEL
2.USE: GENERAL HOIST
3.CERTIFICATE:ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.PROCESS: FORGED
6.KEY WORDS: ALLOY LARGE OPENING HOOK
7.LARGE THROAT OPENING AND SMALL CROSS AREA
8.FORGED ALLOY STEEL, HIGH STRENGTH AND GOOD DUCTILITY
9.ONLY FOR GENERAL HOIST, NOT FOR OVERHEAD LIFTING
TYPE 1.ALLOY EYE HOOK WITH LATCH
| ALLOY EYE HOOK WITH LATCH | |||||||||
| ITEM NO. | WEIGHT | WLL | B.L | D | B±1 | L±3 | R±2 | E±1.5 | H±1 |
| KG | T | T | |||||||
| 2T | 0.65 | 2 | 4 | 24 | 26.5 | 149 | 84 | 47 | 24.2 |
| 3T | 1.25 | 3 | 6 | 30.5 | 35.5 | 179 | 97.5 | 49 | 29.5 |
| 5T | 1.45 | 5 | 10 | 33.5 | 38.5 | 198 | 107 | 54 | 33.5 |
| 6T | 2.75 | 6 | 12 | 37.5 | 48.5 | 234 | 118.5 | 61 | 41.8 |
| 8T | 3.28 | 8 | 16 | 43 | 52 | 253 | 129.5 | 69.5 | 47.1 |
Ultimate load is 4 times the working load limit.
TYPE 2.ALLOY EYE HOOK
| ALLOY EYE HOOK | |||||||||
| ITEM NO. | WEIGHT | WLL | B.L | D±1 | B±1 | E±1 | L±2 | P±1.2 | H±1.2 |
| KG | T | T | |||||||
| 3.2T | 0.84 | 3.2 | 12.8 | 31 | 36 | 60 | 173.5 | 23 | 28.3 |
| 3.8T | 1.17 | 3.8 | 15.2 | 31 | 36 | 78 | 199 | 25 | 32.5 |
Ultimate load is 4 times the working load limit.
TYPE 3.ALLOY EYE HOOK
| ALLOY EYE HOOK | |||||||||
| ITEM NO. | WEIGHT | WLL | B.L | D | L±2 | B±2 | R | E±1.5 | M±1 |
| KG | T | T | |||||||
| 2T | 0.36 | 2 | 4 | 20 | 126 | 82 | 96.5 | 44 | 20 |
Ultimate load is 4 times the working load limit.
TYPE 4.ALLOY EYE HOOK
| ALLOY EYE HOOK | |||||||||
| ITEM NO. | WEIGHT | WLL | B.L | D | E | M | H | R±0.5 | L±2 |
| KG | T | T | |||||||
| 6500LBS | 0.42 | 3 | 6 | 20.5 | 46 | 97 | 21.5 | 95 | 126 |
Ultimate load is 4 times the working load limit.
TYPE 5.ALLOY EYE HOOK WITH LATCH
| ALLOY EYE HOOK WITH LATCH | ||||||||||
| ITEM NO. | WEIGHT | WLL | B.L | A±0.5 | B±1 | C±0.5 | L±1 | R±1 | E±1 | H |
| KG | T | LBS | ||||||||
| 2.2T | 0.499 | 2.2 | 4.4 | 23 | 97 | 16 | 162 | 133 | 37 | 20.6 |
| 3.1T | 0.739 | 3.1 | 6.2 | 22 | 108 | 20.3 | 168 | 133.5 | 40 | 24 |
Ultimate load is 4 times the working load limit.
TYPE 6.ALLOY EYE HOOK WITH LATCH
| ALLOY EYE HOOK WITH LATCH | |||||||||
| ITEM NO. | WEIGHT | WLL | B.L | D | L | B | R | E | H |
| KG | T | T | |||||||
| 1.5T | 0.22 | 1.5 | 6 | 17 | 99.5 | 71.5 | 79 | 25.5 | 13 |
Ultimate load is 4 times the working load limit.
TYPE 7.ALLOY EYE HOOK WITH LATCH
| ALLOY EYE HOOK WITH LATCH | ||||||||||
| ITEM NO. | WEIGHT | WLL | B.L | D±0.5 | L±1 | B±1 | C±0.5 | R±1 | E±1 | M±0.5 |
| KG | T | T | ||||||||
| 6800LBS | 0.45 | 3 | 6 | 20.5 | 127 | 87.5 | 21 | 95.7 | 38.5 | 18.3 |
Ultimate load is 4 times the working load limit.
TYPE 8.ALLOY FORGED LARGE OPENING HOOK
| ALLOY FORGED LARGE OPENING HOOK | |||||||
| ITEM NO. | WEIGHT | WLL | B.L | D±0.5 | C±2 | E±1 | L±2 |
| KG | T | T | |||||
| 1.5T | 1.27 | 1.5 | 3 | 40 | 112 | 99 | 272 |
Ultimate load is 4 times the working load limit.
Never exceed Working load Limit
SUPER ALLOY STEEL: QUENCHED AND TEMPERED
INDIVIDUALLY PROOF TESTED AT 2TIMES WORKING LOAD LIMIT.
BREAKAGE TEST AND FATIGUE TEST
100% MAGNAFLUX CRACK DETECTION.
SUITABLE FOR 1 OR 2 LEGS G80 CHAIN SLING AS PER EN818-4
SURFACE FINISH : POWDER PLASTIFIED
Packing: packed in cartons then on pallets or packed in wooden case
Port: Any China main port.
Shipping : within 30days.
We have more than 10 years export experience. We are specialized in producing and exporting all kinds of chains, rigging hardware, casting and forging items, stainless steel products and other related products.
As a leading company in this industry in China, we provide favorable prices, good quality and the best services.
All members of our team will be very honored if you contact us. We will offer the best services to you.
The prodcution has passed the ISO9001 international quality system certificaion ,has been authorized the CE certification .
I'm Eileen Wang, any question , please contact with me, I will be always on line and at your service.
