Deep Cycle 12V 500Ah LiFePO4 Battery for Solar System
- shenzhen
You May Like
-
Deep Cycle 12V 500Ah LiFePO4 Battery
-
150wh/kg 32650 3.2v 5ah Lifepo4 Battery Cell for Solar ,auto Power
-
Rechargeable Deep Cycle LiFePO4 48V 20Ah Battery for E-scooter
-
Lithium Iron Phosphate 48V 600Ah Battery
-
Deep Cycle Rechargeable 12V 400Ah LiFePO4 Battery
-
Patent Packed Lifepo4 Electric Bus Battery 540V 600Ah With Smart BMS
Product Details
| Place of Origin | Guangdong, China | Brand Name | OptimumNano | |
| Model Number | 12v 500ah 32650-3.2v 5ah | Type | Other, LiFePO4, Lithium Battery 12V 500Ah | |
| Nominal Voltage | 12V | Size | Other, 610*440*362±2mm | |
| Nominal Capacity | 500Ah |
Product Description
Deep Cycle 12V 500Ah LiFePO4 Battery for Solar System Deep Cycle 12V 500Ah LiFePO4 Battery for Solar System Deep Cycle 12V 500Ah LiFePO4 Battery for Solar System
We could design all of the battery packs according to your requirements and provide OEM service. We sincerely welcome you to visit and cooperate with us for a prosperous business future.
LiFePO4 Battery 12V 500Ah main data:
|
|
|
1 | Battery Model | 6400Wh, LiFePO4 12V 500Ah Solar Battery |
2 | Cells and connection | 32650, 3.2V 5Ah, 4S 100P |
3 | Battery Voltage | 12.8V (Standard Working Voltage) |
4 | Standard Charge Voltage | About 14.6V |
5 | Discharge Cut-off Voltage | 10V |
6 | Battery Capacity | 500Ah |
7 | BMS Model | PCM(PCB style BMS) |
8 | Charge Current | 80A(need 6hours to full charge,can design) |
9 | Max Continuous Discharge Current | 100A (can design) |
10 | Peak Discharge Current | 200A (can design) |
11 | Whole Battery Size | 610*440*362±2mm Steel Case Packing |
12 | Net Weight | About 72kg |
This form can't include all we are producing.
| Optimum LiFePO4 Battery/Lithium Battery Pack (12V 5Ah---400Ah) | ||||||||||
| 5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah | ||||||||||
| Item No. | OPT12005 | OPT12010 | OPT12020 | OPT12025 | OPT12030 | OPT12040 | OPT12050 | OPT12060 | ||
| Standard Capacity | 5Ah | 10Ah | 20Ah | 25Ah | 30Ah | 40Ah | 50Ah | 60Ah | ||
| Rated Voltage | 12.8V | |||||||||
| Discharge Cut-off Voltage | 10.0V | |||||||||
| Cell Model | IFR32650/32750 | |||||||||
| Casing Material | Steel Case for Single Cells | |||||||||
| Self Discharge Rate | ≤3% after one month | |||||||||
| Life Cycles | 80% left after 2000 times (with 1C constant charge and discharge deep cycle) | |||||||||
| Max Charger Voltage | DC14.6V | |||||||||
| Standard Charge Current | 0.2C | |||||||||
| Protection Function | Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection | |||||||||
| Product Size(mm) | 151*51*93 | 135*85*85 | 182*76*167 | 184*75*135 | 118*175*175 | 190*165*175 | 190*165*175 | 350*168*179 | ||
| Approx N.W | 0.9Kg | 1.3Kg | 2.8Kg | 3.5Kg | 4.0Kg | 5.5Kg | 7.0Kg | 8.0Kg | ||
| Item No. | OPT12080 | OPT12100 | OPT12120 | OPT12150 | OPT12200 | OPT12200 | OPT12300 | OPT12400 | ||
| Standard Capacity | 80Ah | 100Ah | 120Ah | 150Ah | 200Ah | 200Ah | 300Ah | 400Ah | ||
| Product Size(mm) (changeable) | 260*170*215 | 330*170*220 | 339*173*212 | 502*262*242 | 502*262*242 | 360*220*262 | 502*262*242 | 560*360*200 | ||
| Approx N.W | 11Kg | 16Kg | 19Kg | 24Kg | 35Kg | 38Kg | 45Kg | 65Kg | ||
Corp:OptimumNano Energy Co., Ltd Http://optimum-china.en.china.cn/ | ||||||||||
1.Electric vehicles:EV/HEV/PHEV, Electric bus, Electric bike, Electric boat, Electric tricycle, Electric quadricycle, Electric scooter, Electric wheelchairs, Golf cart, Marine, Station/SUV /wagon/Caravan, E-tour car, Forklift, etc.
2.Solar and wind energy system:Solar energy storage, PV system, Solar street light, Wind power generation energy storage, etc.
3.Medical devices:Energy power for various kinds of medical devices, etc.
4.Other electric tools and equipments: Lawn mower, Electric saw, UPS, backup storage system, Military equipments, etc.
1.Safe:Rigid aluminum alloy housing protection, BMS or PCB built inside to protect the battery over charge or discharge.
2.Environmental-friendly: Accredited with RoHS, without any hazardous and noxious substances.
3.Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery.
4.Powerful: Able to discharge at 20Cat 65°C max.
5.Long cycle life: Over 2000 cycles with capacity staying at minium 80%. Lead battery and other Li-ion batteries only have 300-500 cylces, such as Ni-Cd battery, Ni-MH battery.
6.Wide temperature range: Available for use when the temperature ranges from -20°C to 70°C.
7.Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE,IEC62133, RoHS certificates.
1.Specialized in production of lithium iron phosphate batteries for over 4 years.
2.Providing tailor-made high-standard energy solutions in accordance to client's demands.
3.With technical of over 2 years in on-site installation and debugging for more than 1000 HEV and EV.
4.Having made and implemented energy solutions for over 100 styles of EV.
5.With rich experience in drawing up and executing new energy solutions such as special energy-storage systems like wind-solar hybrid power generation and UPS for military and hospital.
6.Whole-journey nanny service after sale.

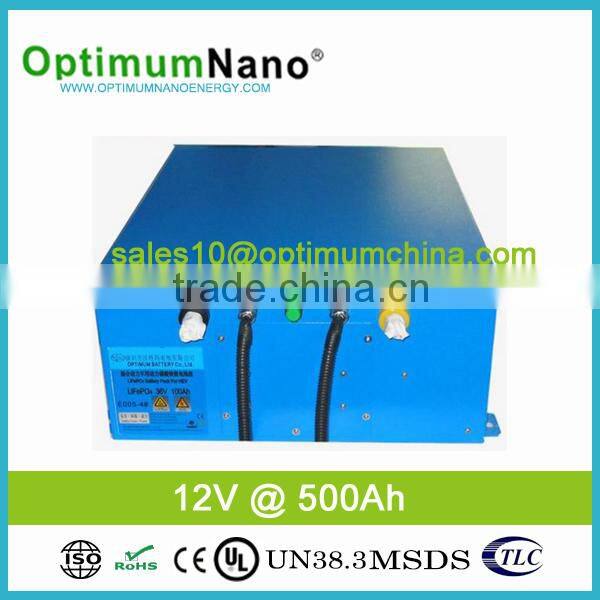

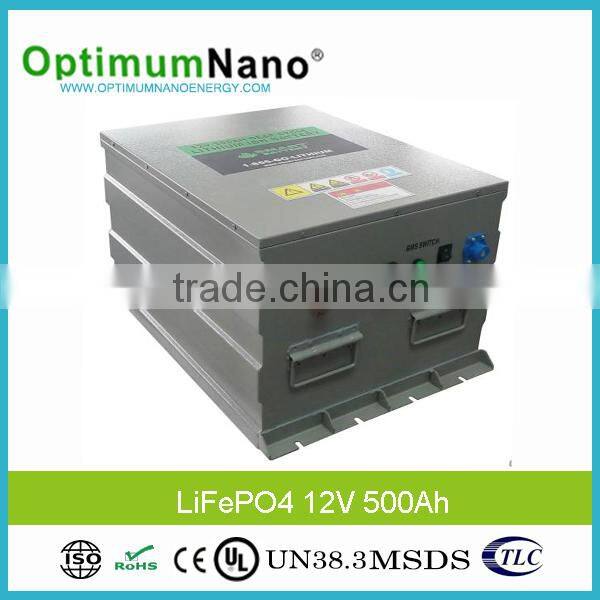

12V 500Ah LiFePO4 Battery Pictures:
