high effiency tyre recycling machinery

RTE Tyre Recycling System is designed for recycling EOL tyres from multiple sources such as cars, commercial vehicles, trucks, OTR etc. The recycling process includes shredding and wire/fiber separation to produce pure rubber granules and grinds.

The intelligent modular design allows adding and deducting on recycling links, thus enhancing flexibility in alteration of capacity and type of tyres. We listen to our customers, understand their requirements, and make proper combination and sizing of multiple equipments with the purpose of providing them with tyre recycling solutions of high throughput and efficiency.

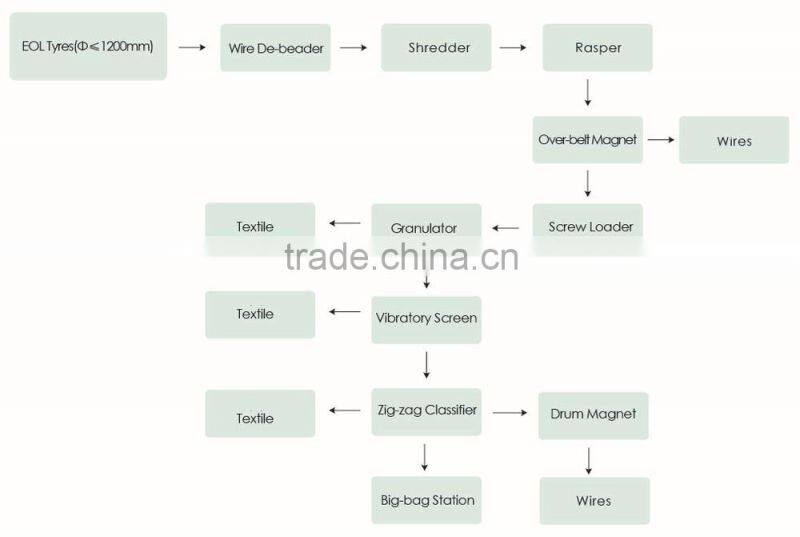

According to the nature of tyre and production requirements, a typical Tyre Recycling System consists of::

1.Automatic de-beader: removal of the reinforcing steel wires from the tire rims

2.Conveying system: conveyor belt, screw conveyor and air transportation system

3.Shredder: shears the tires into 50mm-150mm strips

4.Rasper: reduces the shred into 15-20mm chips and liberates remaining steel from the rubber

5.Over-belt Magnet: separation of liberated steel from the rubber chips

6.Granulator: size reduction of the chips to 1-4mm granules and liberates the textile fraction to allow separation

7.Vibratory Screen: sorts the granules by size and removes the majority of textile

8.Zig-Zag Classifier: removal of remaining textile

9.Drum magnet: removal of remaining steel fines

10.Grinder: size reduction of the granules to 30-100mesh grinds

11.Automatic Big-Bag Station: storing or packing of finished product

Feaures

One Ton Waste Tyre Recycling Production Line

1.Integral tyre feeding, no pre-shredding or wire de-beading demanded

2.All-in-one recycling process - from tyres to granules, production to packaging - no secondary handling process

3.Maximum throughput up to 5000kg/h, with no more than 7 operators demanded

4.Multiple options of equipment models to meet diverse requirements of capacity, 200kg/h - 5000kg/h

5.Full assembly two-floor infrastructure makes assembly and maintenance easier and safer

6.Seamless assembly joints enable perfect control of dust and smoke

7.80-100 hour “real world” testing on principal machines ensures stable performance

8.CE certification: uniform standard and fine workmanship

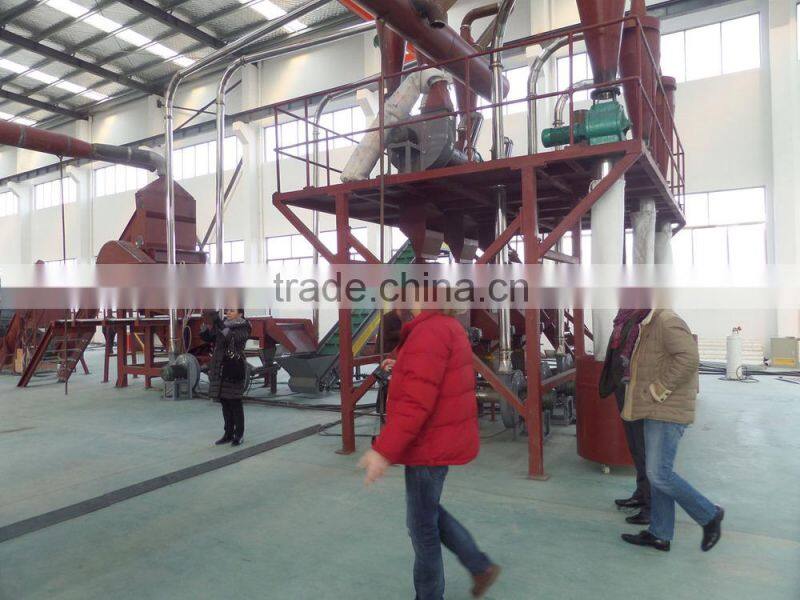

Testing

One Ton Waste Tyre Recycling Production Line

All equipments prior to delivery are assembled into a production line and tested under "real world” condition, thus guaranteeing the quality and performance of products. Visitors are welcome to attend these trials and receive training on operation and maintenance.

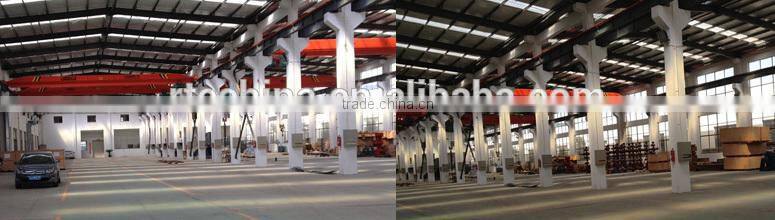

Factory

we are the factory which is specialized in recycling of the waste tyre,car body,PET bottle,Plastic Film.Rubber and so on.we have the mature experience in producing the tyre recycling system.and it has been exproted to more than twenty countries.

Price

all of production have competitive price,and the quality is stayable all the time,all the domestic and overseas customers have great satisfation with our production.


  BY CARTONS OR AS CUSTOMER’S REQUIREMENT

Repair

Should you ever need repair service – our well-trained service staff will take care of a
quick and reliable repair service or general overhaul of your machine on site or in our
RTE service centre.

Your benefit:
Short response time and expert support in emergencies
1.Service hotline
2.Highly qualified and experienced service engineers
3.General overhauls on site and at the RTE Service Centre

RTE is high technology machinery and equipment manufacturing enterprise specialized in recycling and processing of industrial and domestic waste. Located in Yancheng city, Jiangsu province of China, the company, ever since it was founded, has been committed to the cause of excavating, developing and utilizing the "urban minerals ". Up to this day we have accumulated abundant experience in researching, developing, designing and manufacturing.
