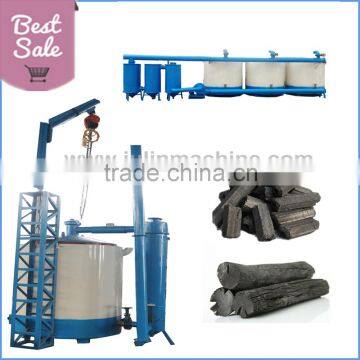

Gas flow carbonization furnace/charcoal making carbonizer machine THL1

Carbonization furnace

Description

Features

carbonization furnace Carbonization Stove Product name carbonization furnace

1. Model: THL

2. Type: Air Flow

3. Power: Pump 0.75+0.75 KW Blower 2.2 KW Electric hoist 4 KW

4. Furnace dimension: 1.85*1.85*2.17m

5. Weight: 5000kg

6. Capacity: 3 tons/24 hours

7. Carbonization time: About 8 hours per container

8. Input: 2 tons of feedstock can produce 1 ton of charcoal.

1. Suitable for carbonizing wood log, biomass extrusion briquettes, agricultural residues, coconut shell, nut shell, bamboo, etc.

2. Available from unit to combined units.

3. Fixed with purification system.

4. It mainly consists of one furnace body, three inner containers and three lids.

charcoal carbonizer machine Carbonization Stove Key word carbonization furnace, charcoal carbonizer, charcoal making machine.

carbonization Carbonization Stove Capacity 3 tons/24 hours

carbonization furnace Carbonization Stove Suitable for Making biomass charcoal.

Working Principle

1.

Carbonization furnace is efficient and low-consumption. It can greatly improve carbonizing rate from 80% to 99%. The carbonization furnace has an internal combustor (inner container) which hangs from the lid and provides heat to convert the feedstock to charcoal. When the first inner container finishes the carbonization process, it can be hoisted out of the carbonization furnace and cooled on the ground while the second inner container is hoisted into the kiln. In this way, three inner containers work continuously. It takes about 8 hours for a batch to be carbonized depending on the moisture content, type and size of the feedstock.

2.

Carbonization furnace adopts off-gas recycling and re-burning technology to decompose the feedstock into combustible gases, wood tar and charcoal. Carbonization furnace runs on a two stage cycle. First the feedstock is dried, and then it is charred. During the drying stage firewood is burned in the firebox to provide heat. Once combustible gases are released, they can burn in the inner container to maintain suitable charring temperatures. These gases contribute to making a high temperature and the feedstock is distilled into charcoal.

3.

The gases will clog the pipes if not properly handled or if the pipes are not well insulated. So purification is necessary. The by-product is recovered from the pyrolysis oil, pyroligneous acid and tar.

4.

The carbonization furnace does not need electricity to run. It uses a blower (provided with the furnace) to supply air to the internal combustor. Fuel: 20-50kg firewood or 15-30kg natural gas.

Common raw materials of making charcoal

Wood logs, branch, lump, sawdust, rice husk, peanut shell, sugarcane bagasse, olive residue, coco shell, bamboo, straw and corncob, etc.

Charcoal Shape

Hexagonal sawdust briquette charcoal

Wood crusher→ Sawdust dryer→ Biomass briquette machine→ Carbonization furnace→ Charcoal.

Wood charcoal

Carbonization furnace→ Charcoal.

Ball or pillow shaped charcoal

Raw materials→ Carbonization furnace→ Charcoal→ Charcoal pulverizer→ Mixer→ Forming machine→ Final product.

Hookah charcoal tablet

Extruded charcoal stick

Extruded charcoal pellet
