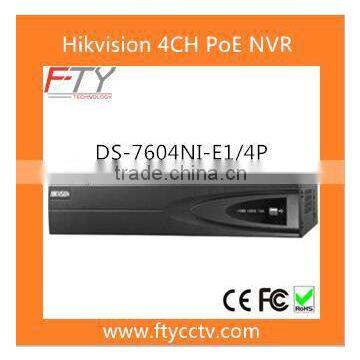

Hikvision 4CH PoE ONVIF DS-7604NI-E1/4P IP Camera NVR Kit Up to 6MP High Resolution For Security System
Negotiable
/ Set
1 Set(Min.Order)
- 5900 Set / Sets per Month
- EXW Shenzhen
- Credit Card
You May Like
-
Hikision H.264 6MP High Resolution HDMI 4CH DS-7604NI-E1/4P Megapixel NVR
-
Hikvision 4CH Mini 1U ONVIF DS-7604NI-E1/4P CCTV NVR Kit With Hard Driver For Surveillance Detection Equipment
-
Hikvision Security Video System DS-7604NI-E1/4P 4CH PoE ONVIF HDMI NVR Hikvison
-
Original Upgradeable English Version DS-7604NI-E1/4P H.264 4Channel ONVIF Mini 1U NVR CCTV HIKVISION
-
Original Upgradeable English Firmware 4CH ONVIF 6MP DS-7604NI-E1/4P NVR IP Recorder Hikision
-
4CH PoE HDD Hard Driver 6MP High Resolution DS-7604NI-E1/4P Surveillance NVR Hikvision
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Hikvision | |
| Model Number | DS-7604NI-E1/4P |
Product Description
Hikvision 4CH PoE ONVIF DS-7604NI-E1/4P IP Camera NVR Kit Up to 6MP High Resolution For Security System
DS-7604NI-E1/4P
Product Description
DS-7604NI-E1/4P;
DS-7608NI-E2/8P, DS-7616NI-E2/8P, DS-7632NI-E2/8P;
DS-7616NI-E2/16P, DS-7632NI-E2/16P.
DS-7600NI-E1/4P and DS-7600NI-E2/8P (16P) series NVR (Network Video Recorder) is a new generation recorder developed by Hikvision independently.
Combined with multiple advanced technologies, such as audio and video decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other device to form a comprehensive surveillance system.
The DS-7600NI-E1/4P and DS-7600NI-E2/8P (16P) series NVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc.
• Third-party network cameras supported
• Up to 6 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080Presolution
• 4/8/16-ch network cameras can be connected with 40M/80M/160M incoming bandwidth
• Up to 2 SATA interfaces
• Plug & Play with up to 8 independent PoE network interfaces
• Support network detection, including network delay, packet loss, etc
Specification
| IP video input: | | | 4-ch |
| Two-way audio input: | | | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | ||
|---|---|---|
| Incoming bandwidth: | | | 40Mbps |
| Outgoing bandwidth: | | | 80Mbps |
| Remote connection: | | | 128 |
| Video/Audio Output | ||
| HDMI/VGA output: | | | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Recording Resolution: | | | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Frame Rate: | | | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
| Audio Output: | | | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback: | | | 4-ch |
| Decoding | ||
| Live view / Playback: | | | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | | | 4-ch@1080P |
| Hard Disk | ||
| SATA: | | | 1 SATA interface for 1 HDD |
| Capacity: | | | Up to 4TB for each disk |
| External Interface | ||
| Network Interface: | | | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: | | | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm In: | | | 4-ch |
| Alarm Out: | | | 1-ch |
| POE | ||
| Interface: | | | 4 independent 100 Mbps PoE network interfaces |
| Max. Power: | | | 50W |
| Supported Standard: | | | AF and AT |
| General | ||
| Power Supply: | | | 48V DC |
| Consumption(without hard disk and POE): | | | ≤ 10W |
| Working Temperature: | | | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | | | 10 % ~ 90 % |
| Chassis: | | | 1U chassis |
| Dimensions: | | | 315 × 230 × 45mm (12.4 ×9.1 × 1.8 inch) |
| Weight(without HDD): | | | ≤ 1 Kg (2.2 lb) |
