Home > Products > 19L Water Filling Machine > 5 - gallon bottle filling Machine for water 450BPH L style

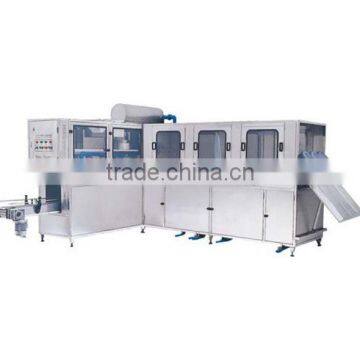

5 - gallon bottle filling Machine for water 450BPH L style
- 0 per Month
- SHENZHEN
You May Like
-
Automatic Online Decapper for 5-gallon bottle
-
Automatic 5-gallon Bottle Loader for water filling machine
-
Cap Seal Steam Shrinking Tunnel for 5-gallon bottle
-
Automatic Online 5-gallon Bottle Outside Washing Machine with brushes
-
TOTAL SOLUTION for Bottled Water Production Line for 3 - 5 Gallon Bottles 60-1200BPH
-
5-gallon bottle washing machine with brushes
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles, Barrel | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V/220V | Power | 10.8kw | |
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | XG-450L | Dimension(L*W*H) | 3000X660X700MM | |
| Weight | 630kgs | Certification | CE |
Product Description
Specifications
Water Filling Machine for 18.9L Bottle, 450BPHWorking Process: Bottle Washing=>Filling =>Capping
Water Filling Machine for 18.9L Bottle, 450B/H (Luxury Type, Beeline)
Working Process: Bottle Washing+Filling + Capping
Model No | XG-100J/(450B/H) | |
Production capacity | 450 B/H | |
Bottles capacity | 18.9 Liters(5gallon) | |
Bottles specification (mm) | Φ270×490×Φ56 | |
Caps specification (mm) | Φ58×40(strip:L18mm,W:7.5mm) | |
Rated input power | 10.8KW | |
Electromotor power | Conveying electromotor of washing | 0.75KW |
Conveying electromotor of bottle out | 0.75KW | |
Disinfectant washing pump | 0.75KW×5 | |
Water washing pump | 0.75KW×2 | |
Pure washing pump | 0.75KW | |
filling pump | 0.90KW×4 | |
Cap-aligning electromotor | 0.06KW | |
Power supply | Power supply: AC 250V±5% 50Hz | |
Rated current | 58A | |
Net weight | 630Kg | |
Outer size | Main part:33275×1500×1700(mm) | |
Filling part: 3000×660×1700(mm) | ||
Requirement of air compressor | 0.3M30.17M3/Min 0.8MPa/Cm2 | |
Requirement of water supply | 13.5M3/H | |
