Home > Products > Dahua NVR Recorder > Dahua DH-NVR4216-8P H.264 16CH 5MP PoE NVR 1080P With Free PSS Software

Dahua DH-NVR4216-8P H.264 16CH 5MP PoE NVR 1080P With Free PSS Software

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port EXW Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Dahua
Model Number	DH-NVR4216-8P

Product Description

Dahua DH-NVR4216-8P H.264 16CH 5MP PoE NVR 1080P With Free PSS Software

DH-NVR4216-8P

Product Description

>Up to 8/16/32 channel IP camera input

>H.264/MJPEG dual codec decoding

>Max 200Mbps incoming bandwidth

>Up to 5Mp resolution preview&playback

>HDMI/VGA simultaneous video output

>4/8/16 channel synchronous realtime playback, GRID interface

>Support Multi-brand network cameras

>ONVIF Version 2.4 conformance

>3D intelligent positioning with Dahua PTZ camera

>Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)

>Support IPC UPnP,8PoE ports

>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Model	DH-NVR4208-8P	DH-NVR4216-8P	DH-NVR4232-8P
System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Video & Audio
IP Camera Input	8 channel	16 channel	32 channel
Two-way Talk	1channel Input, 1channel Output, RCA
Display
Interface	1 HDMI,1 VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1/4/8/9	1/4/8/9/16	1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264/MJPEG
Resolution	5Mp(2560×1920)/3Mp(2048×1536)/ 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)
Record Rate	200Mbps
Bit Rate	48~ 8192kbps
Record Mode	Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email,FTP, Buzzer & Screen tips
Video Detection	Motion Detection,MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input	4 channel
Alarm Output	2 channel
Playback & Backup
Sync Playback	1/4/8	1/4/8/16		1/4/8/16
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/Network/Internal SATA burner
Network
Ethernet	1 RJ-45 port (10/100/1000Mbps)
PoE	8 ports (IEEE802.3af/at)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access	128users
Smart Phone	Support remote watch
Storage
Internal HDD	2 SATA ports, up to 8TB
Auxiliary Interface
USB	2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS232	1 port, For PC communication&Keyboard
RS485	1 port, For PTZ control
General
Power Supply	AC 100~240V, 50/60 Hz
Power Consumption	NVR: 60W(without HDD)
	PoE: Max.25.5W for single port
Working Environment	-10°C~+55°C / 10%~90%RH / 86~106kpa
Dimension (W×D×H)	1U, 375mm×327mm×53mm
Weight	2.5KG(without HDD)

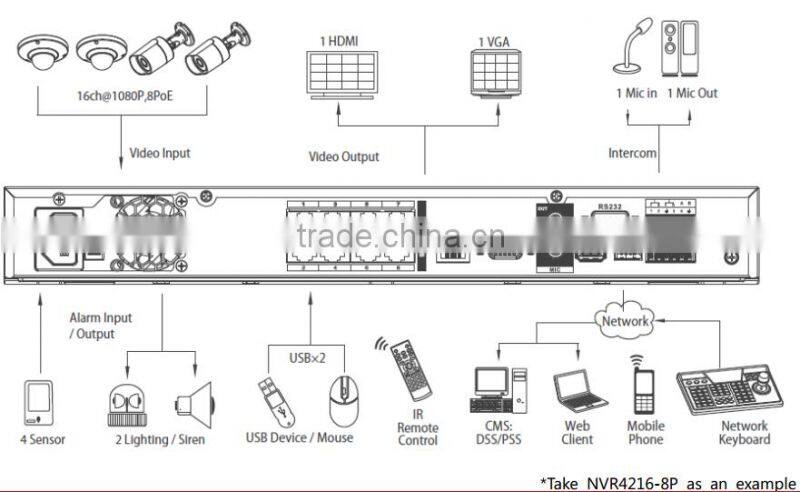

System Connection
