stone crafts engraving machine

Model

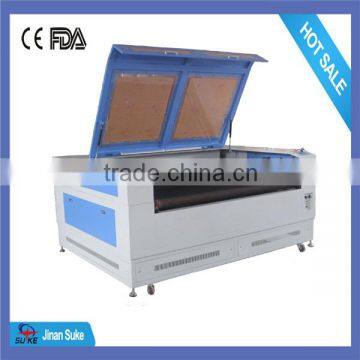

Laser engraving machine SK1610

Working area

1600*1000mm

Laser tube power

60w,80w,100w,130w,150w(can be optional)

laser style

Sealed CO2 laser tube, water-cooling, 10.6um

Working life of tube

1500hours

Max Engraving speed

0 - 60,000mm/min

Cutting speed

0- 30,000mm/min

Location precison

≤0.01mm

Resetting positioning accuracy

0.01mm

Resolution ratio

≤4000 dpi

Laser tuber cooling

Water cooling

Power supply

AC 110 - 220V , 50 - 60Hz

Min. shaping character

Chinese 2mm*2mm,English 1mm*1mm

Supported graphic

BMP, HPGL, PLT, DST, DXP, and AI

Driving system

Stepper motor

360° slope engrave

Yes

Cooling system

Water-cooling and protection system

Operating system

Windows98/7/2000/XP/VISTA/2007

Standard accessories

(01)laser engraving cutting software --laser cut 5.3(English version)

(02)User manual of machine(English version)

(03) User manual of software       (04)USB cable

(05)communication cable         (06) air exhaust fan   (07)air pump

(08)3 reflecting mirrors (has been installed in the machine)

(9)one focus lens(has been installed in the machine )

(10)one laser tube(has been installed in the machine)

(11) tool box that you need to repair or maintenance

(12) USB port LED panel(has been installed in the machine)

Optional parts

(1) extra laser tube (2) motorized up and down platform

(3) rotary attachment   (4) red dot printer

(5) industrial chiller cw5000   (6) auto focus

(7) 3 layer filter  (8) CCD camera

(9) double laser head (10) auto feeding system

Software supported

CorelDraw, AutoCAD , Photo shop

Operating temperature

0°C~45°C

Operating humidity

5%~95%

Gross power

≤1500w

Computer interface

USB port and Standard printer port

English manual

Tell you how to run the laser machine and also the problems and solutions
