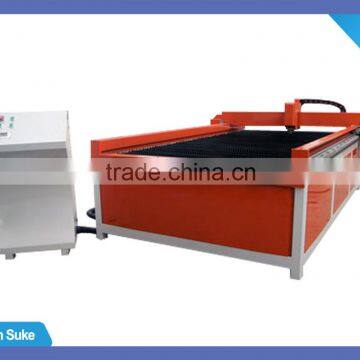

Taiwan cnc plasma cutting machine
- 200 Set / Sets per Month
- Qingdao Shanghai
- Credit Card
You May Like
Product Details
| Condition | New | Laser Type | Other, Plasma | |
| Applicable Material | Glass, Metal | Cutting Thickness | 1-15mm | |
| Cutting Area | 1300*2500mm | Cutting Speed | 0-8000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | DSP | Graphic Format Supported | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP | |
| Place of Origin | Shandong, China | Brand Name | SUKE | |
| Model Number | SK1325 | Certification | CE |
Product Description
Specifications
Taiwan cnc plasma cutting machine1. 1300*2500mm work bed
2. 60A /100A power source
3.DSP for plasma
Taiwan cnc plasma cutting machine
Scope of application
For low carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet, and other metal sheet.
Parameters:
Model | SK1325 |
Work area (mm) | 1300*2500*100 |
Control system | DSP for plasma (START with THC is optional) |
Machine structure | Channel steel lathe bed, serrated table |
Overall dimension (mm) | 3150*2200*1200 |
|
|
Precision (mm) | 0.07 |
Positioning accuracy (mm) | 0.02 |
Repeatability (mm) | 0.02 |
Idling speed (mm/min) | 15000 |
Working speed (mm/min) | 10000 |
XY transmission | Racks and gears |
Guide rail | Imported round rail |
Power source | (HUAYUAN) 60A/100A |
Max. cutting thickness | 5mm for 60A; 25mm for 100A |
Driving system | Stepper motors |
Working voltage | AC380V±30V, 50HZ |
Command code | G code. nc. mmg. u00. etc. |
Control system | DSP for plasma |
File transfer | USB interface |
Compatible software | Compatible with any software generating G code file in window 98/XP/7 |
Optional parts |
|
Features:
1. Steel structure lathe bed is capable of loading heavy metal sheet of large size.
2. Incline design under table surface makes finished parts and scrap slide down to both side along, convenient and safe for operator.
3. DSP hand-held control system dedicated for plasma machine, supports file reading from U disk or downloading from computer, providing high independence and great convenience during operation.
4. Racks and gears as transmission raise moving speed so that large area cutting can be done in short time.
5. High sensitivity THC (Torch Height Controller) is optional for auto adjustment to cutting distance and cutting precision.
Machine parts
Sample Display
Plywood box
Machine Photos
If any interesting, please don’t hesitate to contact us! We will reply to you within 24 hours.
Welcome to send massage to me, by instant messenger is also appreciated!
