304 graphite gasket
- Tianjin port
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | geepipe | |
| Model Number | DN15~DN3000 | Material | Metal | |
| Shape | Ring Gasket | Standard or Nonstandard | Standard |
Product Description
Description:

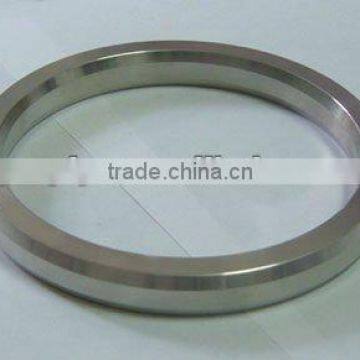

304 graphite gasket
WFY RJ3200is machined from solid metal in a variety of shapes and designed for high pressure, high temperature or highly corrosive applications by selecting the most suitable material and shape. It is designed to withstand exceptionally high assembly loads over a small area, thus producing high seating stresses.
These gaskets are obtained by mechanical working from forged or laminated metals. They are employed in the production and refining process of oil and chemical industries. These gaskets are designed in oval/octagonal shapes confirming to R,Bx and Rx series of API std 6A.
3300 PL Plain type RJG
3300 OV Oval type RJG
3300 OC Octagonal type RJG
3300 RX RX type RJG
3300 BX BX type RJG
3300 S Special type RJG
MATERIALS:
Material | Code Sample | Hardness(HB) | T() |
Soft Iron | R23 SI | 90 | 530 |
Carbon Steel | R23 CS | 120 | 530 |
304(L)321316(L) | R23 S304 | 160 | 750 |
5Cr1/2Mo | R23 F5 | 130 | 500 |
Copper for 640PL |
| 50 | 400 |
Aluminium for 640PL |
| 30 | 300 |
DIMENSIONS:
Standards for Ring Joints Gaskets used with flanges | ||
RJG Style | RJG standard | Flange standard |
R | ASME B 16.20 API 6A | ANSI B 16.5 ANSI B 16.47 Series A |
RX | ASME B 16.20 API 6A | API 6B |
BX | API 6A | API 6BX |
Can be ordered according to the detailed drawing
