Home > Products > CNC Routers > 4 Axis Cnc Router Machine180 Degree Rotatable Spindle Head

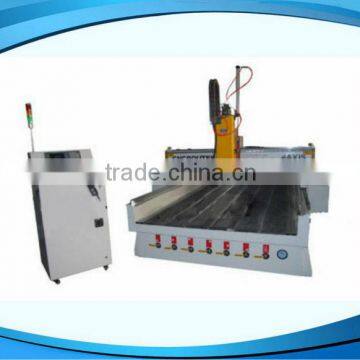

4 Axis Cnc Router Machine180 Degree Rotatable Spindle Head
- Tianjin Shanghai
- Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | SUKE | |
| Model Number | SK1325-4 | Voltage | AC380 50HZ | |
| Power(W) | 4.5kw | Weight | 2000kg | |
| Certification | CE | Warranty | 1 year |
Product Description
Specifications
4 axis cnc router machine180 degree rotatable spindle head1. 1300x2500mm size
2. 4.5/6/7.5kw spindle
3. CE
4 axis cnc router machine180 degree rotatable spindle head
Performance Parameter
Working area (x*y*z) | 1300*2500*400mm ±90 degree |
Machine table | Vacuum absorption table and T-slot Combined |
Machine Structure | Welded structure |
X,Y,Z Drive system | X,Y Rack and Pinion, Z Ballscrew |
Max Rapid | 30000mm/min |
Max working speed | 20000mm/min |
Spindle power | 4.5kw (water cooling) |
Spindle speed | 0- 24000rpm |
Driving system | Japan Yaskawa Servo Motors |
Working voltage | AC380V, 50/60HZ,3PH |
Command code | G code (*.nc,*.mmg, 8.u00, etc.),*.eng |
Control system | Syntec Control |
Compatible Software | UG, Visual Mill, Power Mill, Master Cam, ArtCAM |
Gross weight | 2000kg |
Feature:
1. The European CE standard production
2. Taiwan Syntec control system
3. 4.5 kw water cooling spindle 0-24000rpm
4.The spindle can rotate ±90 degree, for side milling, drilling, cutting, lock slot, very suitable for processing on different surface carving.
5.Vacuum and T-slot Combined table
6. Tool cooling system with water sink to keep tool cooling when process stone and metal..
7.Taiwan Hiwin 30MM square rails
8. X,Y Rack and Pinion, Z German Ballscrew
9. Japan Yaskawa Servo Motor and Driver.
10. Inverter: Taiwan Delta
11. Auto Lubrication-free lifelong to protect the machine
12.Cable: drag chain specific Cable, anti-jamming, anti-static; with high flexibility, long-term use will not break
13. Limit switch: Japan OMRON
14. Beam: steel beam stiffeners
Application:
1. Woodworking industry: doors, cabinets, office furniture, loudspeaker box, musical instruments, etc.
2. Decoration industry: Acrylic, PVC, MDF, plastic, stone, cooper, aluminum and other soft metal engraving and cutting
Sample Display:
