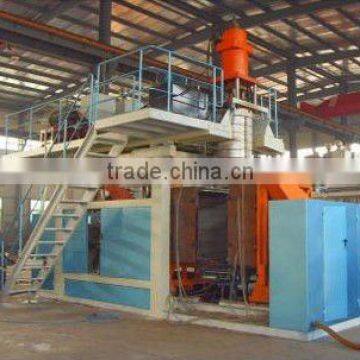

Double Ring Drum Blow Molding Machine
- Qingdao Port
You May Like
Product Details
| Condition | New | Application | Other, Water Tank,Double Ring Drum | |
| Plastic Processed | Other, HDPE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Shandong, China | |
| Brand Name | YANKANG | Model Number | YK120 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.High speed & efficiency2.High quality level
3.PLC+touch screen
4.PLC program controls the machine operation swiftly
YK200L-L RING Series is specially used for HMW-HDPE Double L Ring drums, barrels and other big hollow products made of HMW-HDPE.
1.YK200L-L RING is single station model with accumulator head specially used for 200~250L HMW-HDPE Double L Ring drum & barrel, floating balls and other big size products made of HMW-HDPE;
2.It’s productivity for 220L barrel is about 20 pcs/hour;
3.Double Extruders with double layers accumulator die head. The extruder L/D ratio 32:1 which is suitable for HMW-HDPE, HDPE material.
4.The accumulator head is specially designed for double layers to increase the stretch of barrel and to use different the color for inner layer and outer layer.
5.The hydraulic system was controlled by proportional valve which is easy to be controlled by PLC.
Standard Configuration:
PARISION CONTROL THINCKNESS CONTROL | MOOG | JAPAN |
PLC | SEIMENS | GERMANY |
TEMPERATURE CONTROL MODULE | SEIMENS | GERMANY |
SERVO VALVE & SERVO TRANSDUCER | MIRAN | ITALY |
INVERTER | SEIMENS | GERMANY |
HYDRAULIC OIL SEAL | DZ | TAIWAN |
INTERMEDIATE RELAY | OMRON | JAPAN |
PNEUMATIC VALVE | AIRTECH | TAIWAN |
HYDRAULIC PUMP & VALVE | YUKEN | JAPAN |
PNEUMATIC SWITCH & CONTACTOR | SEIMENS | GERMANY |
SCREW MOTOR | SEIMENS | GERMANY |
REDUCER | GUOMAO | CHINA |
