1000Liter- double layers blow molding machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, water tank
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Shandong, China
Brand Name	YANKANG	Model Number	YK1000L-2
Power(W)	290KW	Dimension(LWH)	9m4.5m5.2m
Weight	28Ton	Certification	ISO9001
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Configuration

PARISION CONTROL THINCKNESS CONTROL	MOOG	JAPAN
PLC	SEIMENS	GERMANY
TEMPERATURE CONTROL MODULE	SEIMENS	GERMANY
SERVO VALVE & SERVO TRANSDUCER	MIRAN	ITALY
INVERTER	SEIMENS	GERMANY
HYDRAULIC OIL SEAL	DZ	TAIWAN
INTERMEDIATE RELAY	OMRON	JAPAN
PNEUMATIC VALVE	AIRTECH	TAIWAN
HYDRAULIC PUMP & VALVE	YUKEN	JAPAN
PNEUMATIC SWITCH & CONTACTOR	SEIMENS	GERMANY
HYDRAULIC MOTOR & SCREW MOTOR	SEIMENS	GERMANY
REDUCER	GUOMAO	CHINA

Specification

No		Specifications	1000 Liter
		Model No.	2 layers
		Processing material	HDPE/HMHDPE
1	Extruders	Screw Diameter (Internal)	100mmgrooved barrel
		Screw Diameter (Middle Layer)
		Screw Diameter (Outer Layer)	100mmgrooved barrel
		Plasticizing Capacity	350kg/h
		L/D	L/D30:1
		Gear Box Type	Hard surface
		Extruder Drive Motor (Inner)	55KW
		Extruder Drive Motor (Middle)
		Extruder Drive Motor (Outer )	75KW
		Heating Load	45KW
		Max Screw Speed	60RPM
2	Accumulator Die Head	Accumulator capacity	45L
		Pusher Cylinder	420x320mm
		Heating Load	70kw
		Parison Control Cylinder	420X40mm
		Die-Core size [ Min / Max]	500MM
		Inverter	Siemens
		Max. parison weight	33KG
3	Moulding Clamping Unit	Max opening between Clamping Plate	2600mm
		Min opening between Clamping plate	1000mm
		CLAMPING PLATEN Size	1600X1500mm
		MAX MOLD SIZE	1400X 1600mm
		Mould Clamping Force	800KN
		Mould Thickness	930-1350
		Clamping Pull Bar	120mm
4	Stretching and Blowing Unit	Spreading stroke	400-800mm
4	Stretching and Blowing Unit	Vertical stroke max.	300mm
5	Electrical Control Panel	Thickness controller	100 points Moog
		Main Operation Panel	Siemens
		Die Head Control Temperature Control	Siemens
6	Hydraulic System	Hydraulic Drive motor (Main)	45KW
		Hydraulic Drive Motor (Parison Control)	7.5kw
		Oil Tank Capacity	1000L
7	Gripper	Gripped stroke	350mm
7	Gripper	Discharge Stroke	2000mm
8	Hopper Loader	Loader	100kg 2pcs
8	Hopper Loader	Hopper	800kg 2pcs
9	Production rate	Productivity	12-15pcs/h
9	of 1000 ltr.	Product Weight	10-19KG
10	Delivery period		4 months
11	Weight of Machine		28Ton
	Size of Machine	[L x W x H ] (M)	9mx4.5mx5.2m
12	Total power		290KW
13	Average power Consumption		160KW

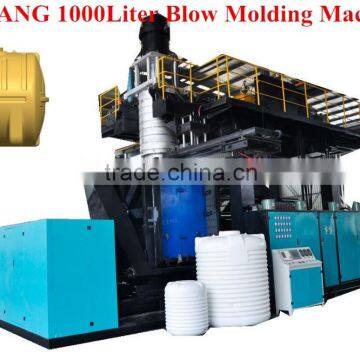

Product Show

Layers Show

Company Profile

We have amassed many years of experience in the blow molding industry,strive to advance blow mold technology, and are always creating new ways to optimize plastic machine performance. Our global sales continue to rise. you can find YANKANG plastic blow molding machinery on 5 continents and in 80 counties, suchas Russia, America, Africa, Iran, Indonesia, Egypt,Iraq, Ethiopia, India, Sri lanka.We take this a major indicator of the trust.yankang has earned among its clients and the firm grasp we have of market trends. Yankang plastic machinery,with years of blow molding technological experence is the reliable and trusted source for blow molding machines and knowledge .

Our Services

DELIVERY TIME
4months after the down payment;

TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;
The training is free of charge;

INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.

GUARANTEE
The guarantee time is one and half year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
