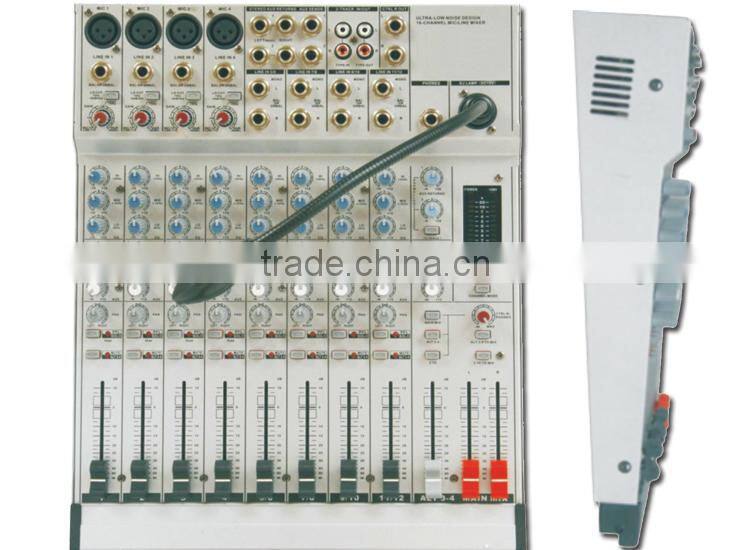

Professional 12 Channel Digital Sound Mixer for Audio System

Model

TS-12P-2

Mono Input Channel (Mic or Line)

4 channels

Stereo Input Channels (Line)

4 pairs (8 mono channels)

Phantom Power

30V

Output

Two unbalanced and two balanced master outputs,

one stereo 3.5mm earphone output,

two mono 3.5mm earphone outputs, two Aux outputs,

two ALT outputs and two Track outputs.

Frequency Response

20Hz-20k Hz, ±0.5dB

Max Mic Gain at Mono Mode

37.4 dB to 55.4dB, ±3dB

Max Line Gain at Mono Mode

36.8 dB to 47.4dB, ±3dB

Max Line Gain at Stereo Mode

10dB, ±3dB

Crosstalk

71dB at 1k Hz and 60dB at 20k Hz

S/N Ratio

79dB at 1k Hz

Balanced Master Output

25.6dB, ±1.5dB

Unbalanced Master & ALT Output

19.6dB, ±1.5dB

Unbalanced Aux Output

19.2dB, ±1.5dB

Bass/Mid/Treble Frequency Point

65 Hz, 2.8k Hz & 14k Hz

Frequency Deviation & Gain

<8%, ±15dB

Output Level Meter

+20dB, +10dB, +7dB, +4dB, +2dB, 0dB, -2dB, -4dB,

-7dB, -10dB, -20dB & -30dB

Power Supply

AC 120V or 220V; 50-60Hz

The Dimension of External Power Supply

129x90x77mm

Product Dimension(WxDxH)

285x392x80mm

Net Weight

4.05kg

Shipping Dimension(WxDxH)

450x446x168mm

Gross Weight

8.8kg
