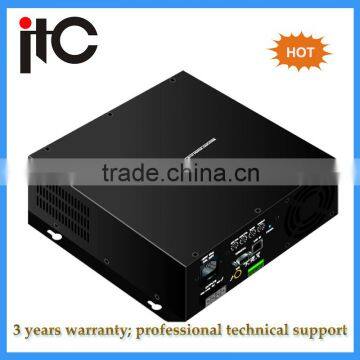

IP Network Wall Mount Class D Digital Amplifier For Classroom

Professional integrated wall-mounted amplifier with the best network audio decoder function,
built-in digital amplifier.

Widely installed in weak-current rooms or Control room , the special place require position
control like classroom, media room, meeting r oom, directly connect with  speaker .

* Wall mount, black aluminum panel, exquisite and high-class design.

* 3.4 inch screen, show on-demand catalog, current playing .Infrared remote controller to control the playing content, easy control like play / pause, fast forw ard / rewind, AB repeat.

* Adopt embedded computer technology and DSP audio processing technology; high-speed chip cut  the start-up time less than 1 second.

* Built-in one channel network hardware audio decoding module that supports T CP / IP , UDP , IGMP , could transmit 16 bits stereo CD audio signal.

* Built-in digital amplifier, 60W , 4-16  output  and 60W, 70V -100V output.

* Adopt industrial-grade circuit design, suitable for bad outdoor environment, with short circuit protection, thermal protection, pressur e limit function.

* One AUX and one MIC input, with independent volume control, tre ble and bass control, support paging without network.

* 1 SHORT IN port for trigger , short circuit to trigger the emergency public address.

* Built-in intelligent power management, automatically cut off the amplifier power when no signal input, power amplifier ,  automatically turn on when there is audio signal input, preset  the progr am to get this function.

* Built-in audio processing to support multi-channel signal amplification and mixing, support three kinds of audio priority management.

* Support DHCP , compatible router , switcher , bridges gateway , Modem, Intelnet, 2G, 3G , 4G, multicast,    unicast and so on.

* Support for at least three kinds of high security authorization, the safety factor is higher than the Web remote configuration.

ITC promise the electronics yearly failure rate is less than 1%.

ITC guarantee all electronics of 3 years quality warranty.

ITC could supply 1% wearing spare parts free of charge.

ITC guarantee all loudspeakers of 6 months quality warranty.

All of quality complaint shall be attached with serial number, failure test report and photos.

All of the quality compliant shall be feedback with a solution within 48 hours.

ITC could supply circuit diagram documents for repair.
