SACHETS CARTON BOX PACKING MACHINE
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage, Commodity, Food, Medical | |
| Packaging Type | Cartons | Packaging Material | Paper | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V | Power | 0.75KW | |
| Place of Origin | Jiangsu, China | Brand Name | HUALE MACHINERY | |
| Model Number | DXH-120WP | Weight | 1600kg | |
| Dimension(L*W*H) | 4200*1200*1600mm | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SACHETS CARTON BOX PACKING MACHINE
Main technical parameters
Cartoning speed | 50-100 Carton/min | |
Carton | Request | 250-350g/m2(addcording to carton size) |
Specification | (50-200)×(20-80)×(14-45)mm | |
Leaflet | Request | 55-65g/m2 |
Folded Leaflet Specification(1-4) Fold | (80-240)×(90-190)mm (L×W) | |
Compressed air | Pressure | ≥0.5Mpa |
Consumption | 120-160L/min | |
Motor Power | 220V 50HZ 0.75kw | |
Dimension | 4200×1200×1600mm (L×W×H) | |
Net weight | 1600kg | |
Applications
This machine is specially used for cartoning pharmaceutical bottles such as:ointment.Aluminum bottle and plastic bottle.The machine could fold the leaflet,open the carton and form ointment bottles automatically,these actions could bo finished by synchronization,the machine also could make the code printing on the catons.The machines is controlled by PLC.
Performance and characteristic
1 Speed frequency transformer,machine interface and touch screen operation system,it will show the cartoning speed and cartons counting.The machine is versatile for cartoning many carton sizes within the permitted range by adjusting and without changing parts.The machine is also equipped with automatic detecting system,it could reject the inferior carton and stop machine by positioning.The touch screen can show the problem and soution of elimination.
2 Product Application:
It is widely used for different packing including drug, food, commodity and cosmetic. For drug industry such as :cover box for solid torch and capsule, soft box for liquid paste, grease and colloid, tray box for vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag box for powder and grain products . For food field such as : carton for cans , sweet, chocolate, candy, biscuit, wine, and freezing food, and so on. For commodity and cosmetic industry such as : carton for cream, grease, lotion, colloid, toothpaste, soap, lamp, computer floppy disk.

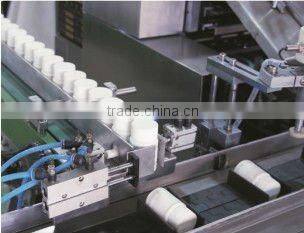

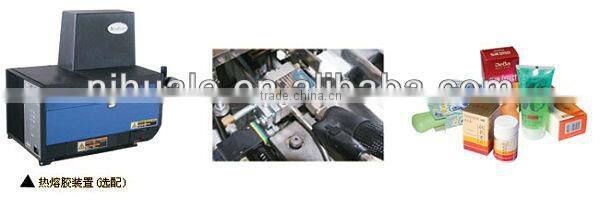

Pictures of the product
