China supplier led flood light 100w

Alibaba China supplier led flood light 100w

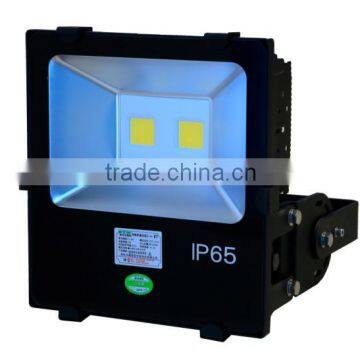

Model:GL-06B Maintenance-free strong beam lamp

Alibaba China supplier led flood light 100w

Major Parameter:

Rated Voltage:AC 220V

Rated Power:LED 100W(120W custom made)

Luminous flux:100W  10000lm

Casing material: high strength aluminum alloy

Transparent part material: Special steel glass

Waterproof level:IP65

Corrosion-proof level:WF2

Weight:5.2Kg

Dimension;270*250.5*130mm

Mounting method: wall mounting, ceiling mounting and seat mounting

Product Features:

1, High efficiency and low energy consumption: imported LED chip for light source, light efficiency can reach 100-130lm/w, saving more than 60% energy in comparison to metal halide lamps.

2, One single casting aluminum case, hi-po electrostatic powder plastic spraying surface, corrosion and rust resistent

3, 4mm special anti-dazzle steel glass, heat & impact resistant

4, Radiator consists of 22 pieces of 1070 aluminum radiating sheet, the heat transmitting index of 1070 aluminum is 226W/mk.

5, Environment friendly, no lead and mercury, no infrared and ultraviolet ray radiation

6, Even and comfortable light, no overlapping shadow; Good color rendering, color temperature close to the sunlight

7, Power with constant current and constant voltage control; can endure the undulation from the grid, no noise and no stroboflash.

8, Exterior fastener uses stainless steel, dainty and endurable.

9, Built-in or built-out power supply.

Product heat dissipation advantage:

1. High thermal conductivity 6063 aluminum radiating sheet: 201W/mK,it is 2.3 times higher than traditional ADC12 die-casting aluminium: 96W/mK.

2. Chip substrate using red copper,thermal conductivity: 401W/mk,capacity of heat transmission increased double times compared with aluminum .

3. Thermally Conductive Silicone use DOW CORNING,thermal conductivity: 3.3,gray color,it makes the chip heat passed  through thermal conductive silicone rapidly to the radiator fins. General lamps and lanterns manufacturers choose white thermal conductive silicone, heat conduction coefficient is 0.8~1.2

4. Lighting up half an hour,negative spot weld temperature less than 65℃;fins in back temperature different in 5℃;chip temperature different with chip back also in 5℃.

5. The heat sink thickening processing, greatly increases the heat dissipation area, heat faster and more efficient.

6. Uniform light color

Installation:

Alibaba China supplier led flood light 100w

A Application:

C Certification

F Factory Picture

F Front door:

O Office entrance

P Production area photos

O Our service:

Our promises for clients:

1. Just provide good quality products.

2. Make sure to give you the most favorable prices.

3. Provide 3years warranty.

4. Have long-term cooperation with our forwarder, so we can provide you the lowest freight and the fastest service.

5. Have professional  engineers to design and develop new led lights according to your requirements.

6. Design the colored boxes for you when you have larger quantity.

7. Can use your logo and label on our products.

8. Your inquiry will be replied in 10 hours

P Package and Shipping:

Packaging Detail: Foam + carton. It can be packed according to customers' requirement.

S Shipping Options:

A. By express: Such as DHL, UPS, TNT, etc. The dispatch time is about 3-7 working days.

B. Air Freight: When you order more than 100kg which will be more economical than express.

C. Agent designated by client: Please tell us the contact details of your shipping agent/forwarder.

Alibaba China supplier led flood light 100w

C Company Information

We, Shenzhen ABest Lighting Technology CO., Ltd, have been committed to the R&D production and marketing of safe, environmental protection and energy saving lighting products, is a private high-tech enterprise who possesses many years of developing & designing experiences in the professional lighting & illumination systems. Including :led street light, led flood light, led industrial light, led underground light,led spot light and so on.

Welcome to Shenzhen ABest Lighting Technology CO., Ltd company

F FAQ:

Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Warranty:
2-3 years warranty
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not
urgent goods can choose this way.
4. Your shipping agent or forwarder.
After-Sale Service:
1. Quick reply on customers' questions;
2. If anything goes wrong with the products' quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering.
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours lighting.Then after it is cool we again test 100% of the lamps to see if it still work well;
Each lamp should pass all these QC procedures before shipping to customer.
Delivery Detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive .
or by sea which takes about one month to arrive , depending on your actual requirements.

O Our services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent English language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.

H How to Contact us?

Want to know more about this or any of our other products? Feel free to get in touch.

Send Your Inquiry Details to the Below, click " Send " NOW!
