Home > Products > DVR > KingCCTV 16ch video 16ch audio video recorder HK-S4016FD H.264 2u standalone cctv dvr
KingCCTV 16ch video 16ch audio video recorder HK-S4016FD H.264 2u standalone cctv dvr
- SHENZHEN
- T/T Credit Card PayPal
You May Like
-
hot-selling h.264 1080p ahd dvr movil dvr kit
-
2015 Cheap wholesale 4/8/16ch AHD DVR
-
4 chs real time h264 dvr software stand alone DVR HK-S8004F
-
cheapest h.264 dvr board 16 channel dvr vehicle blackbox dvr: HK-S3216F
-
h.264 dvr motherboard digital network security system dvr 4/8 ch network embedded dvr HK-S8008F
-
h264 dvr software recorder embedded net dvr HK-S4016F
Product Details
Place of Origin | Guangdong, China | Brand Name | KingCCTV | |
Model Number | HK-S4016FD |
Product Description
KingCCTV 16ch video 16ch audio video recorder
HK-S4016FD H.264 2u standalone cctv dvr
16ch video 16ch audio video recorder
Specification-- 16ch video 16ch audio video recorder
Specifications
Model No. | HK-S4004FD | HK-S4008FD | HK-S4016FD |
Compression Format | H.264 / G.711 | ||
Operation System | Embedded LINUX | ||
User interface | GUI, on-screen menu tips. | ||
Main Processor | High-performance embedded microcontroller | ||
Control Mode | Front panel, USB mouse, IR remote control, Keyboard, Network | ||
System Resources | Pentaplex function: live, recording, playback, backup & remote access | ||
System status | HDD status, data stream statistics, log record, bios version, on-line user etc. | ||
Video Input | BNC x 4, 1.0VP-P,75O | BNC x 8, 1.0VP-P,75O | BNC x 16, 1.0VP-P,75O |
Video looping | 4ch | 8ch | 16ch |
Video Output | 1 TV, 1 Spot, BNC(1.0Vp-p, 75Ω), 1 VGA, 1 HDMI | ||
Video Standards | PAL(625Line,50f/s),NTSC(525Line,60f/s) | ||
Video Privacy Masking | 4 self-defined four-sided zones for privacy masking for each camera | ||
Video Resolution | D1/4CIF(704*576/704*480); CIF(352*288/352*240) / QCIF(176*144/176*120) | ||
Main Stream Record Speed | Channel 1: D1/CIF/QCIF (1~25/30fps); Channel 2~4: CIF/QCIF (1~25/30fps), D1 (1~6fps) | Channel 1: D1/CIF/QCIF (1~25/30fps); Channel 2~8: CIF/QCIF (1~25/30fps), D1 (1~6fps) | Channel 1 & 9: D1/CIF/QCIF (1~25/30fps); Others Channel: CIF/QCIF (1~25/30fps), D1 (1~6fps) |
Extra Stream Speed | QCIF(1~25/30fps) | ||
Video Bit Rate | 32~2048Kb/s | ||
Video Tour Display | Support | ||
Video Image Quality | 1~6 level(level 6 is the best, VBR effectively) | ||
Recording Mode | Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop | ||
Recording Priority | Manual >Alarm >MD >Regular | ||
Recording Interval | 1~120 min. (default: 60 min.), Pre-record: 1~30 sec., Post-record: 10~300 sec. | ||
OSD | Camera title, time, video loss, camera lock, motion detection, recording | ||
Display Resolution | 1280*1024, 1280*720, 1024*768, 800*600 | ||
Audio Input | 200-2800mV, BNC x 4 | 200-2800mV, BNC x 8 | 200-2800mV, BNC x 16 |
Audio Output | 1 channel, BNC(200-3000mV, 5KΩ) | ||
Audio Compression | G.711 | ||
Audio Bidirectional Talk | 1 channel Input, BNC(200-2800mV, 30KΩ), 1 channel Output, BNC(200-3000mV, 5KΩ) | ||
Motion Detection | Zones: 396(22*18), Sensitivity: 1~6 (level 6 is highest) | ||
Video Loss & Camera Blank | Support | ||
Alarm Input | 4 channels | 8 channels | 16 channels |
Relay output | 6 channel, 30VDC, 1A, NO/NC, form-C | ||
Hard Disk | 4 SATA ports, 4 HDDs or 3 HDDs + 1 CD/DVD-RW, Max 2TB per HDD supported | ||
Space Occupation | Audio: 28.8MB/H, Video: 56~500MB/H | ||
HDD Management | Hard disk hibernation technology, HDD faulty alarm & Raid (Redundancy) | ||
Recording Mode | Manual, continuous, video detection(including motion detection, camera blank, video loss), Alarm | ||
Overwrite Mode | Support | ||
Search Mode | Time/Date, Alarm, Motion Detection & exact search ( accurate to second) | ||
Playback | 1/2/4/All | ||
Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom(any size) | ||
Backup Mode | Flash drive/ USB HDD/ USB CD/DVD-RW/ eSATA Device / Built-in SATA burner/ Network download | ||
Network nterface | RJ-45 Port (10/100M) | ||
Network Functions | TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server | ||
Network Remote operation | Monitor, PTZ control, Playback, System setting, File download, Log information | ||
USB Interface | 2 ports, 1 for mouse control, 1 for backup | ||
RS232 | keyboard, PC communication | ||
RS485 | PTZ control | ||
eSATA | 1 port | ||
Power Supply | AC 100~240 V, 50/60 Hz | ||
Power consumption | 25W | 30W | 40W |
Working Temperature | -10~+55 degree | ||
Working Humidity | 10%- 90% | ||
Atmosphere Pressure | 86kpa - 106kpa | ||
Dimension | 2U, 440mmx460mmx89mm (W*D*H) | ||
Mounting | Desktop or rack | ||
Weight | Gross weight:8kg; Net weight:6.5kg |
Features-- 16ch video 16ch audio video recorder
Features
- H.264 compression algorithm ideal for standalone DVR
- Realtime live display up to 16 cameras with 720P high definition, 400/480 fps recording for CIF & special channel D1(4CIF) realtime recording
- 2U standalone DVR with high performance, widely accepted in the worldwide security industry
- 16 channel playback simultaneously
- Dual encoding streams flexible for network transmission and mobile phone monitoring
- Pentaplex function: live, recording, playback, backup & remote access
- 4 HDDs supported, eSATA port & CD-RW/DVD-RW supported
- Multiple control methods: front panel, IR remote controller, keyboard, USB mouse and network keyboard
- Smart video detection: motion detection, camera blank, video loss
- Smart camera settings: privacy masking, camera lock, color setting and title display
- Pan Tilt Zoom and Speed Dome Control: more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported.
- Easy backup methods: USB devices, CD-RW/DVD-RW & network download
- Alarm triggering screen tips, buzzer, PTZ preset, matrix output, e-mail, FTP upload
- Smart HDDs Management: non-working HDD hibernation, HDD faulty alarm, Raid function
- Powerful network software: built-in web server, multi-DVR client, MSS(mobile phone surveillance software ) & CMS
- Networking access for remote live viewing, recording, playback, setting, system status, event log, e-mail & ftp function
- Video matrix and loop function

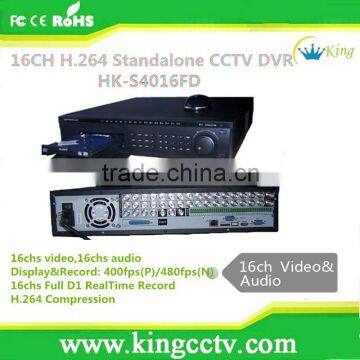

Real shot of 16ch video 16ch audio video recorder
Considerate Service-- 16ch video 16ch audio video recorder
OEM and ODM are both acceptable
Sample order is acceptable
Payment terms: Paypal, T/T, Western Union
Warranty: 2 YEARS
Certification: CE, FCC, RoHS
Lead time: 3-25 days since purchasing date
Note: In case of not stock, you can do 30% as deposit, and pay 70% when ready.
Adantage-- 16ch video 16ch audio video recorder
1.Our product line includes CCTV Camera, IP Camera, PTZ Camera, Network Camera, AHD Camera, NVR, DVR and all kinds of accessories.
2. All of our products are factory direct selling. With our own factory, we strictly monitor the price and quality in order to meet customers's requirements.
3. We have accomplished the following big projects:
- CCTV Surveillance for Greece National Park
- CCTV Surveillance for Jewish Historical Museum Amsterdam
- CCTV Surveillance for Barranquilla Harbour in Colombia
- CCTV Surveillance for Shell in Japan
16ch video 16ch audio video recorder
Shenzhen KingCCTV Technology Co., Ltd. is a high technology enterprise, engaged in software & hardware development, manufacturing and sales for security & safe products.
Our factory is in Yindafeng Industry Park of Longgang District of Shenzhen. As our business extended, in order to provide more products and better service, we established a Greece Branch on January of 2008, and established a USA Branch in Senoia GA on October of 2012. We mainly sell, develop and manufacture DVR, HDVR, NVR, CCTV Camera, IP Camera, PTZ camera, etc.
Due to the hard work of all staffs in KingCCTV, and the continuous supports from our extensive customers, we have already achieved outstanding accomplishments in the past years. Here we deeply appreciate that it's only the customer's success which makes KingCCTV successful. So we would like to cooperate with you in the long run and create a brilliant future for all of us.
Welcome to vist our factory anytime you like
16ch video 16ch audio video recorder
Shenzhen KingCCTV Technology Co.,Ltd
Overseas Marketing Sales
Edison Tang
Mail: sales6(at)
Skype:kingcctv-sales6
Whatsapp:18320821085
WeChat:281481464
Welcome to inquiry
16ch video 16ch audio video recorder
(1)What is your MOQ?
Edison: Dear, for sample order, there is no MOQ. From second order, at least 50 pcs per order.
(2)How about delivery time?
Edison: We always make the shipment by DHL,UPS,Fedex. About 3-25 business days after confirming your payment.
(3)Payment terms?
Edison: We accept T/T, Paypal, Western Union payment.
(4)Can I be your exclusive representative?
Edison: Sure, dear. You are welcome to be our agents in your market. We have official contract to sign. Till now, we have sold our products to more than 40 countries.
(5)How about warranty?
Edison: All of our products are of 2 YEAR warranty.
(6)Can you do OEM/ODM?
Edison: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your own packaging according to your requriements.
