Home > Products > New Arrival > AMD P820 HMP820SGR32GM notebook CPU original version 3 core upgrade preferred

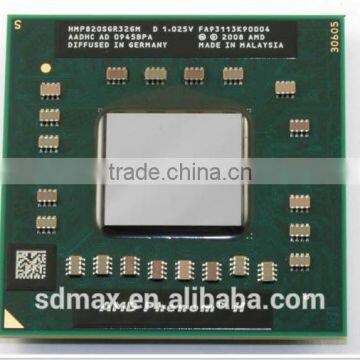

AMD P820 HMP820SGR32GM notebook CPU original version 3 core upgrade preferred
Negotiable
1 (Min.Order)
- 0 per Month
- D/P D/A
You May Like
-
Notebook dedicated CPU EM3000DDX22HX E2-3000 - m official version
-
Original PGA formal version of the core 2 duo T5670 1.8 G 2 m 800 laptop CPU SLAJ5
-
Original Intel Celeron CPU CM370 SL8MM/SL86J CPU original PGA quantities
-
Intel Mobile Core i5-3337u SR0XL BGA1023 original version 2.0 G
-
T7250 2.0 G 2 m, 800, 965 motherboard upgrade T8300 T9300 T9500 notebook CPU motherboard upgrade T8300 T9300 T9500 notebook CPU
-
AMD CPU AMN370DCR22GM N370 laptop 638 needle general N660 N620 P920
Product Details
| Products Status | Used | Application | Laptop | |
| Type | Dual-Core | Processor Type | Other | |
| L2 Cache | Other, ≤ 1MB | Socket Type | LGA 775 | |
| Main Frequency | 2.3GHz | Brand Name | AMD | |
| Model Number | FX-8130P | Place of Origin | China |
Product Description
AMD Phenom II P820 specifications
| General information | |
| Type | CPU / Microprocessor |
| Market segment | Mobile |
| Family | AMD Phenom II Triple-Core Mobile |
| Model number ? | P820 |
| CPU part number |
|
| Stepping code | AADHC AD |
| Frequency ? | 1800 MHz |
| Bus speed ? | One 1800 MHz 16-bit HyperTransport link (3.6 GT/s) |
| Clock multiplier ? | 9 |
| Package | 638-pin lidless organic micro Pin Grid Array (UOL638) |
| AMD Package number | 30605 |
| Socket | Socket S1 (S1g4) |
| Size | 1.38" x 1.38" / 3.5cm x 3.5cm |
| Weight | 0.2oz / 5.8g (measured) 0.2oz / 6.5g (by specifications) |
| Introduction date | May 12, 2010 |
| End-of-Life date | Last order date is 3rd quarter 2011 Last shipment date is 1st quarter 2012 |
| Architecture / Microarchitecture | |
| Microarchitecture | K10 |
| Platform | Danube |
| Processor core ? | Champlain |
| Core stepping ? | BL-C3 |
| CPUID | 100F53 |
| Manufacturing process | 0.045 micron silicon-on-insulator (SOI) technology |
| Data width | 64 bit |
| The number of cores | 3 |
| The number of threads | 3 |
| Floating Point Unit | Integrated, 128-bit wide |
| Level 1 cache size ? | 3 x 64 KB 2-way set associative instruction caches 3 x 64 KB 2-way set associative data caches |
| Level 2 cache size ? | 3 x 512 KB 16-way set associative caches |
| Level 3 cache size | None |
| Cache latency [1] | 3 (L1 cache) 15 (L2 cache) |
| Multiprocessing | Uniprocessor |
| Features |
|
| Low power features | PowerNow! |
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller | The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1066, DDR3L-1066 Maximum memory bandwidth (GB/s): 17.1 |
| Other peripherals | HyperTransport technology 3.0 |
| Electrical / Thermal parameters | |
| Thermal Design Power ? | 25 Watt |
FAQ
Q: I have an AMD P820 processor. Can I upgrade it?
A: Probably yes. CPU compatibility is determined by your motherboard. Please see website for CPU support list for your board.
CPUs, related to AMD Phenom II P820
| Model | Cores / Threads | Frequency | L2 cache | TDP | Features | |
|---|---|---|---|---|---|---|
| AMD Phenom II Triple-Core Mobile family, Socket S1 (S1g4) | ||||||
| Phenom II P820 | 3 / 3 | 1.8 GHz | 1.5 MB | 25W | ||
| Phenom II P840 | 3 / 3 | 1.9 GHz | 1.5 MB | 25W | > | |
| Phenom II P860 | 3 / 3 | 2 GHz | 1.5 MB | 25W | > | |
| Phenom II N830 | 3 / 3 | 2.1 GHz | 1.5 MB | 35W | > | |
| Phenom II N850 | 3 / 3 | 2.2 GHz | 1.5 MB | 35W | > | |
| Phenom II N870 | 3 / 3 | 2.3 GHz | 1.5 MB | 35W | > | |
| Other families, K10 micro-architecture, Socket S1 (S1g4) | ||||||
| Sempron Mobile N120 | 1 / 1 | 2.2 GHz | 512 KB | 25W | > | |
| V Series V140 | 1 / 1 | 2.3 GHz | 512 KB | 25W | > | |
| V Series V160 | 1 / 1 | 2.4 GHz | 512 KB | 25W | > | |
| Athlon II N370 | 2 / 2 | 2.5 GHz | 1 MB | 35W | > | |
| Turion II N550 | 2 / 2 | 2.6 GHz | 2 MB | 35W | > | |
| Turion II N570 | 2 / 2 | 2.7 GHz | 2 MB | 35W | > | |
| Phenom II X620 | 2 / 2 | 3.1 GHz | 2 MB | 45W | Unlock | > |
| Phenom II X640 | 2 / 2 | 3.2 GHz | 2 MB | 45W | Unlock | > |
| Phenom II X920 | 4 / 4 | 2.3 GHz | 2 MB | 45W | Unlock | > |
| Phenom II X940 | 4 / 4 | 2.4 GHz | 2 MB | 45W | Unlock | > |
