standard welding pipe positioner and rotary welding set
- 300 Set / Sets per Month
- Qingdao standard welding pipe positioner and rotary welding set
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HuaFei | Model Number | standard welding pipe positioner and rotary welding set | |
| Usage | standard welding pipe positioner and rotary welding set | Dimensions | 200-3000mm | |
| Weight | 200kg-40000kg | Certification | ISO9001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
standard welding pipe positioner and rotary welding sets
Application welding positioner welding turning roll
Seat-type positioner is by working table turning or tilting, let the welding seam at level or boat type position’s welding device.Table rotation with frequency variable speed, table tilting driven by sector gear or hydraulic cylinder,table rotating angle 0 ° - 120 °.It can achieved linkage control with welding manipulator or welding machine. Control system have 3 option:Button digital control,switch digital control and switching relays control.This machine can widely used in various parts of the shaft,disk, cylinder etc.
Feature welding positioner welding turning roll
1. With professional anti-electromagnet funtion.
2. Have self-locking function.
3. Giving you the competitive price.
4. Tilting from 0 to 120°, rotating 360°.
5. Provide you the excellent service.
6. Supply you the reliable products.
Parameters welding positioner welding turning roll
| Model No. | BW2-6 | BW2-12 | BW2-20 | BW2-40 | BW2-50 | BW2-80 | BW2-150 | BW2-200 | |
| Basic loading(kg) | 600 | 1200 | 2000 | 4000 | 5000 | 8000 | 15000 | 20000 | |
| Rotating speed r/min | 0.05-0.5 | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 | |
| Turning speed r/min | 0.75 | 0.37 | 0.37 | 0.37 | 0.25 | 0.25 | 0.15 | 0.15 | |
| Turning angle (° ) | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-90 | 0-90 | |
| Work table diameter(mm) | 800 | 1100 | 1100 | 1400 | 1600 | 1800 | 2200 | 2500 | |
| Height of work table(mm) | 1000 | 1250 | 1250 | 1600 | 1800 | 1800 | 2300 | 2600 | |
| Allow workpieceoff-center(mm) | Eccentricity | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Centroidal distance | 200 | 250 | 300 | 300 | 300 | 350 | 500 | 600 | |
| Rotating motor power(kW) | 0.37 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 4 | 5.5 | |
| Turning motor power(kW) | 0.75 | 0.75 | 1.1 | 3 | 3 | 4 | 7.5 | 11 | |

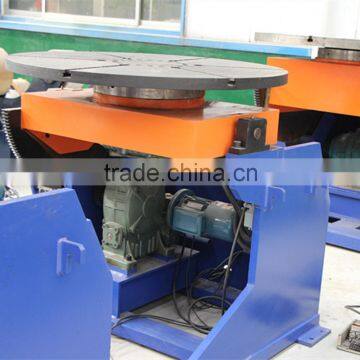

Pictures welding positioner welding turning roll
Video Link welding positioner welding turning roll
/video.php?v=1527359967504471&set=vb.100006914478186&type=3&theater
Plywood case or plastic film cover
ISO9001:2008 & CE certification
After-sale Service
♥ Warranty : one year
♥ Engineers available to serve machine overseas
♥ Strict factory inspection
♥ Complete equipment manual
♥ Online instruction
♥ Provide all components, spare parts and consumptive material
Jinan GT Machinery Co.,Ltd the sales branch company of Jinan HuaFei CNC Machine is a professional CNC machine manufacturer, which specializes in designing, producing and trading together. Our products have been exported to
many countries including United States, Canada,Australia, Indonesia, India, Sri Lanka, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, Kazakhstan, Uzbekistan etc.
Service Purpose:
Our professional sale and after-sale service give you a faithful feel.
Thanks for your inquiry and welcome to visit our company. Any question, please feel free to contact us!
