JNHF QGIII CNC Plasma Cutting Table

JNHF QGIII CNC Plasma Cutting Table

1.Product features:

(1) Install easily

(2) Two cutting ways: flame or plasma.

(3) It is a high-efficiency, high-precision and high reliability cnc cutting equipment

(4) Double-side driving servo system, guarantees an excellent running performance.

(5) Optional dust proof work table or smoke removing device for a clean working environment.

(6) Optional plasma power for different materials cutting.

 Cutting table main parameter

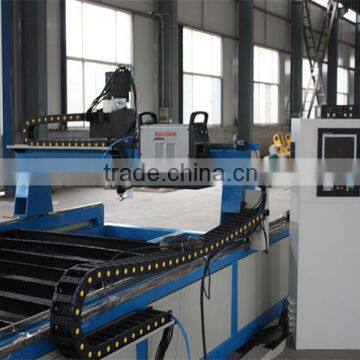

2.Pictures for reference

3.  Mechanical Accuracy

1. Installation accuracy of guide rail:

1) Straightness accuracy of main rail           ±0.2mm/10m

2) levelness between two rails           ±0.5mm/10m

3) Longitudinal levelness of main rail ±0.2mm/m; ±2mm/ overall length

4) Parallelism between two rails        <±2mm/ rail space

2. Machine precision:

a. Longitudinal effective stroke    >nominal size 20mm

b. Transverse effective stroke       > nominal size 10mm

c. Linear positioning accuracy   ±0.1mm/10m

(1000×1000mm Comprehensive graphics detection)   GB deviation≤±0.3mm

d. Linear repeat accuracy                 ±0.4mm/10m

e. Torch stroke                              ≤170mm

f. Cutting speed                 ±5% of setting speed

g. Automatic lifting precision                   ±0.5mm

3. Comprehensive machine precision:

a. Length deviation(four sides)              0.3mm

b. Diagonal deviation                   0.3mm

c. Back to the origin of the deviation                 0.2mm

d. Diagonal straightness accuracy                  0.3mm

e. Intersection deviation                       0.3mm

f. Linear deviations                           0.2mm

g. Entire machine positioner precision                0.1mm

Standard plywood packing

Certification

CE and ISO9001:2008

After-sale service

♥ Warranty : one year

♥ Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components on equipment
