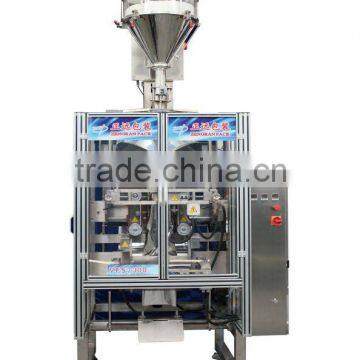

packing machine for milk powder/flour/coffee powder

• Machine fully controlled by Siemens or Omron PLC & Touch-Screen

• Minute capacity can automaticlly display on Touch screen

• Film transport system and horizontal Jaw motion both drived by Panasonic servo motor

• Safe quick change of tube and collar by just pull out the braket

• Optoelectronics detect film position on collar to correct film excursion

• Electrical photo sensor inducting color code to contol bag length

• Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

• independent temperature adjustment& code printing

• Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.

• The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipemnt
• can euqiped with hole punching system to puch hole on the bag for handling .

Bag type

Box type bag /Stabilo bag

( can do both with or without back seal )

Speed

25-50bags/min

Bag size

Front wirdth

100 to 240mm (4 to 9.5in)

Side wirdth

50 to 120mm (2.0 to 5in)

Length

100 to 420mm (4 to 16.6in)

Reel Film Width

≤540mm (21.3in)

Film thickness

0.04-0.12mm (40-120mic.)

Reel Outer Dia.

400mm (15.8in)

Reel Inner Dia.

75mm (2.9in)

Voltage

AC220V/50Hz, 1phase or Per customer specification

Power Consumption

3KW

Compressed Air Requirement

0.6 Mpa 0.36 M3min

Machine Size

L1650 X W1300 X H1650; (in):L65.1 X W51.2 X H70.9

Machine Weight

1000kg
