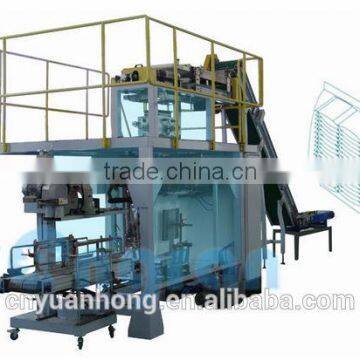

GFP1D5 Automatic Bag Feeding Packaging Machine (Single Silo Type)

Specifications

GFP1D5 Automatic Bag Feeding Packaging Machine (Single Silo Type)

Details:

The packing machine is mainly to complete the packaged pouch products (150-1000 g) by request (order form: vertical arranged separately) neatly into the bag, sewing bag out of the automatic packaging process. In order to achieve a small package from the bulk material to a woven bag, full automatic operation, saving manpower, material and financial inputs, to reduce production costs, improve production efficiency, the unit is widely used in washing powder, salt, seeds , milk powder and other powder, granular packaging machine is the first choice for major companies.

Including:

Equipment basically consists of the double inclined conveyor, high speed conveyor, counting machine, woven bag automatic packaging machines, sewing machine, end product conveyor.

Production process:sackets ---horizontal conveyor---Double slope conveyor --- high speed conveyor ---bag counting machine ---automatic bag feeding machine---auto sewing machine—end woven bag putout

Advantages:

1. This packing unit can realize auto bag feeding,bag opening,counting,filling,moving output,auto sewing, the whole packing process is fully automatic .;

2. The touch screen control unit, operation specifications change, maintenance are very convenient, safe and reliable.

3. Can be arranged to achieve a variety of forms to meet different  needs of customers.

Main technical parameters:

1 Packaging range: 150g ~ 1000g sachet products;

2. Packaging Materials: paper bag,woven bag (lined with PP/PE film)

3. Packing speed:4-14 woven bags / min,( 40-90 pouches / min)

  (speed slightly changed according to different products)

4. Ranking form:single silo baiting,single row laying

5. Compressed air: 0.5 ~ 0.7MPa, gas 0.8 m3/min;

6. Power Supply: 5Kw  380V±10%  50Hz.

Workshop:

Certificate:

Parters:

Our services for GFP1D5 Automatic Bag Feeding Packaging Machine (Single Silo Type)
